A40i, A60i
INSTALLATION Manual 0-5466
3-6
Installing Optional Two - Stage Air Filter Kit
This optional two - stage air line filter is also for use on compressed air shop systems. Filter removes moisture and
contaminants to at least 5 microns.
Connect the air supply as follows:
1. Attach the Two Stage Filter bracket to the back of the power supply with the screws supplied.
NOTE!
For a secure seal, apply thread seal-
ant to the tting threads, according to
manufacturer’s instructions. Do not
use Teon tape as a thread sealer, as
small particles of the tape may break
o and block the small air passages in
the torch.
2. Connect the two stage filter outlet hose to the inlet port of the Regulator / Filter Assembly.
3. Use customer - supplied fittings to connect the air line to the Filter. A 5/16 (8mm) O.D. smooth tubing should
be used with the press in fitting.
5/16 (8mm)
O.D.
Gas
Supply Tubing
Air/Gas
Input
System Filter
Assembly
2-Stage Filter
Inlet Port (IN)
Outlet Port
(OUT)
Two Stage
Filter
Assembly
Art # A-13288

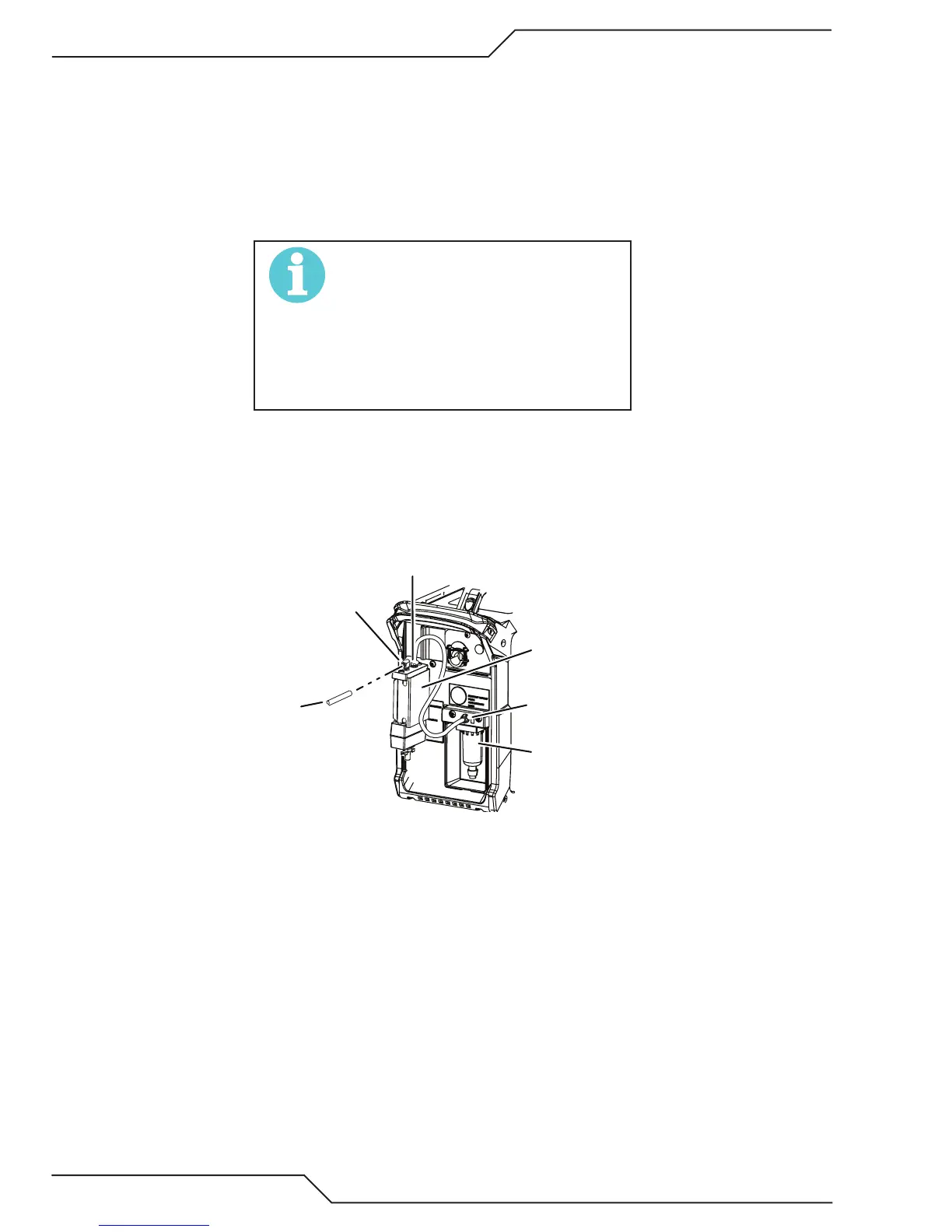

Optional Two - Stage Filter Installation
To Next Page
