Thermal Dynamics A40i User Manual

A40i, A60i
OPERATION Manual 0-5466
4T-22

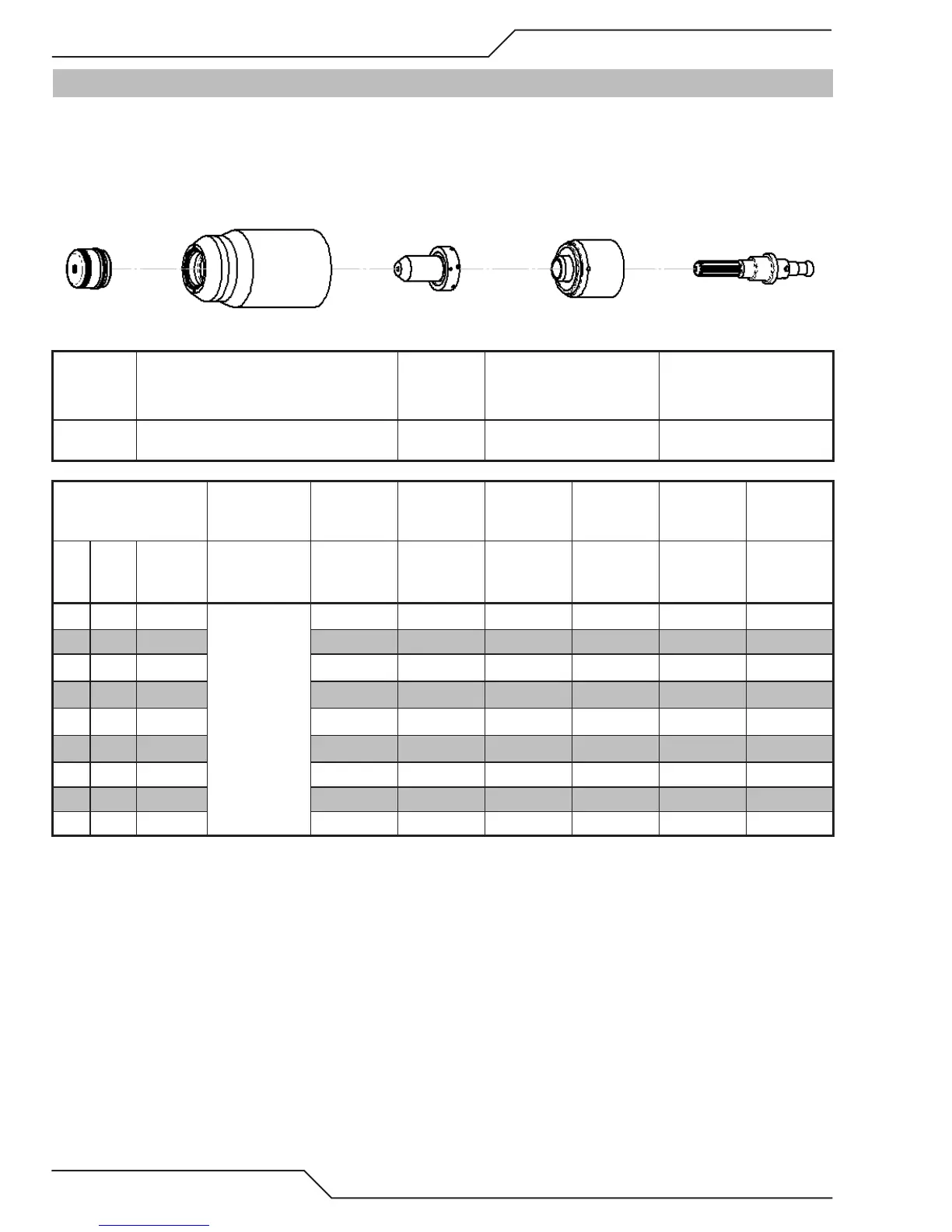

4T.09 Recommended Cutting Speeds for Machine and Automated Torches With Shielded Tip
Mild Steel
40A
Air Plasma / Air Shield
Shield Cap Maximum Life Shield Cup Tip
Starter Cartridge
Heavy Duty Starter
Cartridge
Electrode
9-8245 9-8237 9-8208
9-8213
9-8277
9-8232
Material
Thickness
Gas Pressure
(Air)
Arc Voltage
Torch
Working
Height
Travel Speed
Initial
Piercing
Height
Pierce Delay
Kerf Width
@ Rec.
Speed
(GA)
(in) inch
PSI
(torch lead
length)
Volts
(in)
(ipm) (in) (sec) (in)
20
0.036
75 (25')
80 (50')
107 0.16 130 0.16 0.0 0.06
16
0.060 113 0.16 120 0.16 0.0 0.06
14
0.075 108 0.16 90 0.16 0.1 0.06
12
0.105 111 0.16 75 0.16 0.2 0.06
10
0.135 114 0.16 65 0.16 0.3 0.07
3/16 0.188 115 0.16 65 0.16 0.4 0.07
1/4 0.250 118 0.16 45 0.16 0.5 0.07
3/8 0.375 123 0.16 23 0.16 1.2 0.08
1/2 0.500 128 0.16 18 0.16 2.0 0.08
