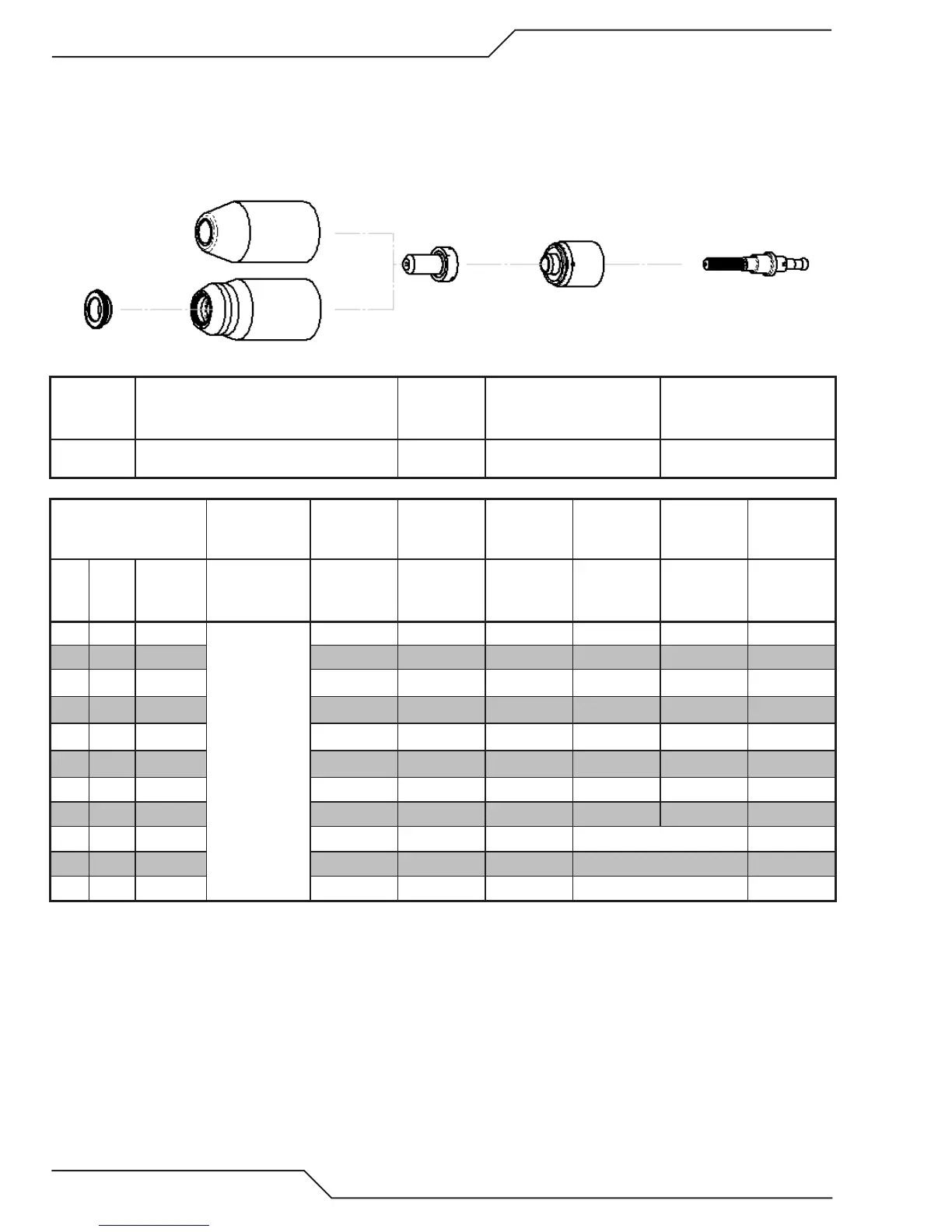

Thermal Dynamics A40i User Manual

A40i, A60i
OPERATION Manual 0-5466
4T-16
Mild Steel
60A
Air Plasma / Air Shield
Deector
Standard Shield Cup
Maximum Life Shield Cup
Tip
Starter Cartridge
Heavy Duty Starter
Cartridge
Electrode
9-8243
9-8218
9-8237
9-8210
9-8213
9-8277
9-8232
Material
Thickness
Gas Pressure
(Air)
Arc Voltage
Torch
Working
Height
Travel Speed
Initial
Piercing
Height
Pierce Delay
Kerf Width
@ Rec.
Speed
(GA)
(in) inch
PSI
(torch lead
length)
Volts
(in)
(ipm) (in) (sec) (in)
16
0.060
85 (25')
90 (50')
118 0.19 290 0.19 0.00 0.08
14
0.075 120 0.19 285 0.19 0.10 0.08
11
0.120 118 0.19 180 0.19 0.10 0.08
10
0.135 119 0.19 176 0.19 0.10 0.07
3/16 0.188 121 0.19 100 0.19 0.20 0.08
1/4 0.250 122 0.19 80 0.19 0.30 0.08
3/8 0.375 124 0.19 50 0.19 0.50 0.09
1/2 0.500 132 0.19 26 0.19 0.75 0.10
5/8 0.625 135 0.19 19 Edge Start 0.10
3/4 0.750 136 0.19 14
Edge Start 0.08
1 1.000 150 0.19 6 Edge Start 0.11

Thermal Dynamics A40i Specifications
