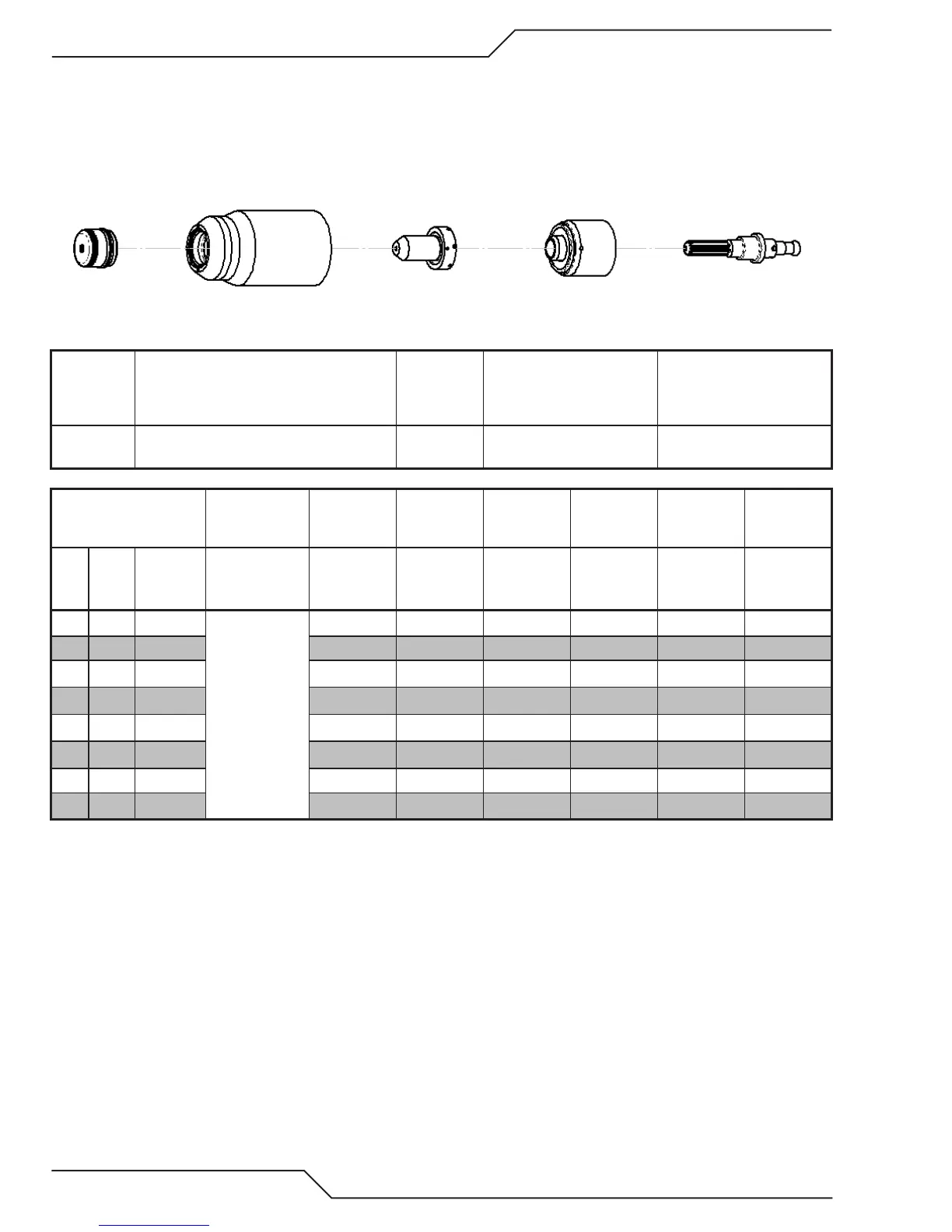

Thermal Dynamics A40i User Manual

A40i, A60i
OPERATION Manual 0-5466
4T-26
Aluminum
40A
Air Plasma / Air Shield
Shield Cap Maximum Life Shield Cup Tip
Starter Cartridge
Heavy Duty Starter
Cartridge
Electrode
9-8245 9-8237 9-8208
9-8213
9-8277
9-8232
Material
Thickness
Gas Pressure
(Air)
Arc Voltage
Torch
Working
Height
Travel Speed
Initial
Piercing
Height
Pierce Delay
Kerf Width
@ Rec.
Speed
(GA)
(in) inch
PSI
(torch lead
length)
Volts
(in)
(ipm) (in) (sec) (in)
20
0.040
75 (25')
80 (50')
110 0.19 300 0.20 0.0 0.06
16
0.063 113 0.19 170 0.20 0.1 0.07
12
0.097 120 0.19 100 0.20 0.2 0.07
11
0.125 125 0.19 90 0.20 0.3 0.07
9
0.160 126 0.19 85 0.20 0.4 0.07
3/16 0.188 128 0.19 70 0.20 0.5 0.07
1/4 0.250 137 0.19 30 0.20 1.0 0.08
3/8 0.375 145 0.19 10 0.20 2.0 0.09

Thermal Dynamics A40i Specifications

General

Brand	Thermal Dynamics
Model	A40i
Category	Cutter
Language	English
