Thermal Dynamics CUTMASTER User Manual

CUTMASTER 35mm, 40mm
PARTS LIST 6-2 Manual 0-5118
6.04 Replacement Power Supply Parts
Qty Description Catalog #
1 Regulator 9-0115
1 Filter Assembly Replacement Element 9-0116
1 CutMaster 35mm Input Power Cord for 380/400 V Power Supply 9-0216
1 CutMaster 40mm Input Power Cord for 380/400 V Power Supply 9-0217
6.05 Options and Accessories
Qty Description Catalog #
1 Single - Stage Filter Kit (includes Filter & Hose) 7-7507
1 Replacement Filter Body 9-7740
1 Replacement Filter Hose (not shown) 9-7742
2 Replacement Filter Element 9-7741
1 Two - Stage Filter Kit (includes Hose & Mounting Screws) 9-9387
1 Two - Stage Air Filter Assembly 9-7527
1 First Stage Cartridge 9-1021
1 Second Stage Cartridge 9-1022
1 Extended Work Cable ( 50 ft / 15.2 m ) with Clamp 9-8529
1 ` Automation Harness 9-8385
1 Automation Interface Kit 9-8311
1 25' / 7.6 m CNC Cable for Automation Interface Kit 9-8312
1 50' /15.2 m CNC Cable for Automation Interface Kit 9-8313
1 Nylon Dust Cover 9-7071

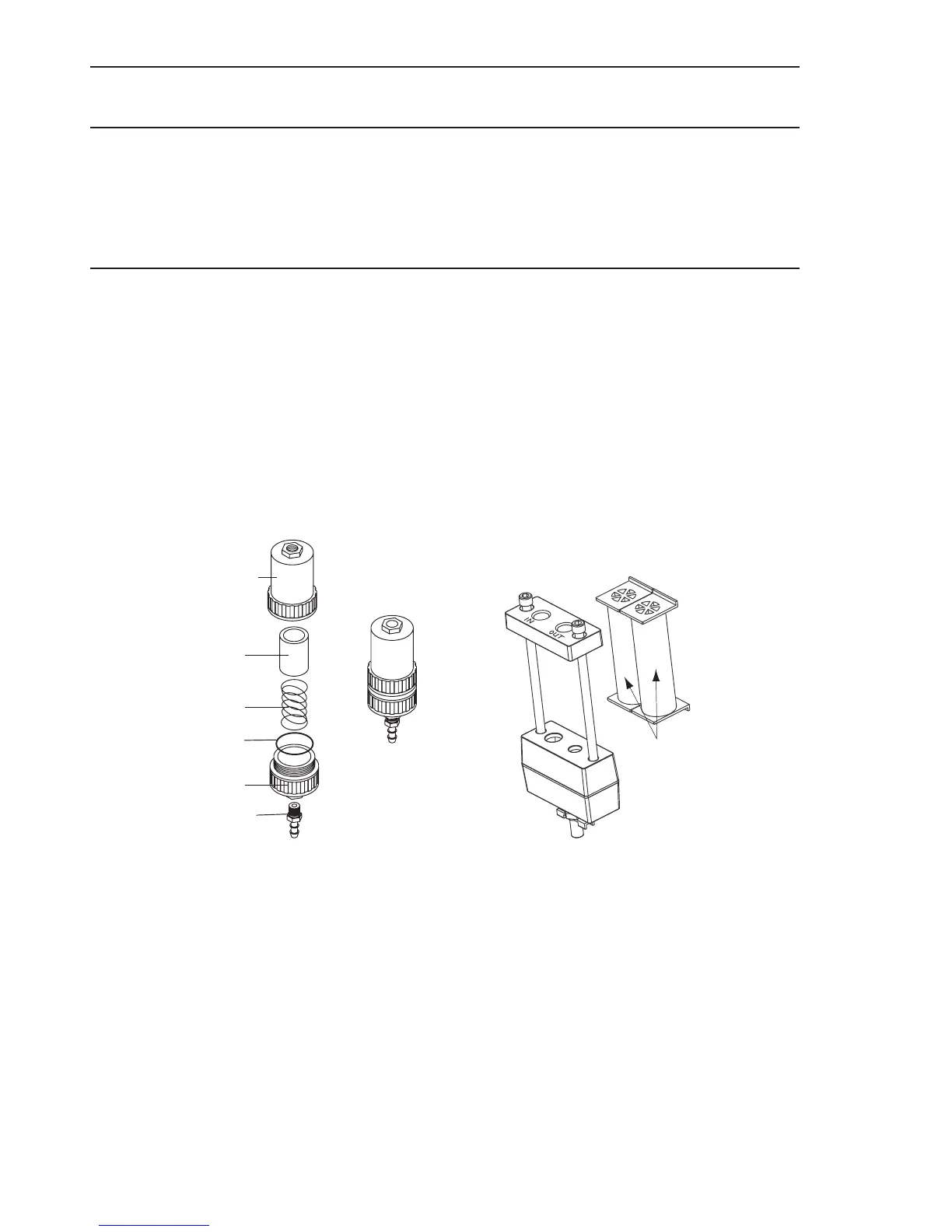

Art # A-02476
Filter
Element
(Cat. No. 9-7741)
Housing
Cover
Barbed
Fitting
Spring
Assembled Filter
O-ring
(Cat. No. 9-7743)
First & Second
Stage
Cartridges
(as marked)
Art # A-02942
Optional Single - Stage Filter Kit Optional Two - Stage Filter Kit
