Thermal Dynamics CUTMASTER User Manual

CUTMASTER 35mm, 40mm
Manual 0-5118 2-3 INTRODUCTION

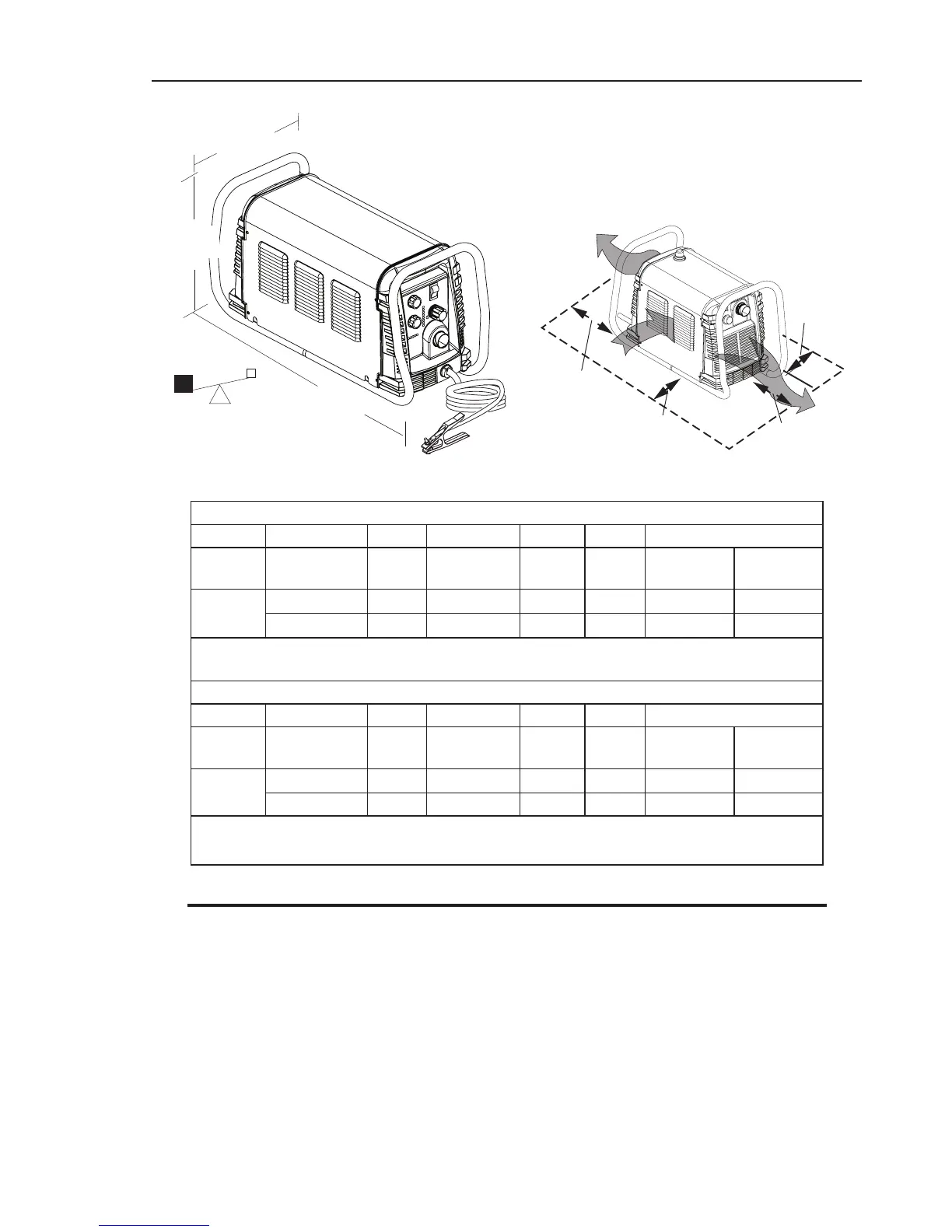

Power Supply Dimensions & Weight Ventilation Clearance Requirements
30.5"
774.7 m
63 lb / 28.6 kg
10.75"
273 mm
16.375"
416 mm
Art # A-08358
6"
150 mm
24"
0.6 m
6"
150 mm
6"
150 mm
Art # A-07925
2.05 Input Wiring Specifications
CutMaster 35mm Power Supply Input Cable Wiring Requirements
Input voltage Freq Power Input Suggested Sizes
Volts Hz kVA I max I eff Fuse (amps)
Flexible Cord
(AWG)
3 Phase
380 50 18.4 28 25 32 10
400 50 18.7 27 24 32 10
Line Voltages with Suggested Circuit Protection and Wire Sizes
Based on National Electric Code and Canadian Electric Code
CutMaster 40mm Power Supply Input Cable Wiring Requirements
Input voltage Freq Power Input Suggested Sizes
Volts Hz kVA I max I eff Fuse (amps)
Flexible Cord
(AWG)
3 Phase
380 50 23 35 32 40 8
400 50 23.6 34 31 40 8
Line Voltages with Suggested Circuit Protection and Wire Sizes
Based on National Electric Code and Canadian Electric Code
NOTES
Refer to Local and National Codes or local authority having jurisdiction for proper wiring requirements.
The suggested sizes are based on flexible power cable with power plug installations. For hard-wired installa-
tions refer to local or national codes.
I
1
max is taken at TDC rated minimum duty cycle.
I
1
eff is taken at TDC 100% rated duty cycle.
