Thermal Dynamics CUTMASTER User Manual

CUTMASTER 35mm, 40mm
Manual 0-5118 A-3 APPENDIX

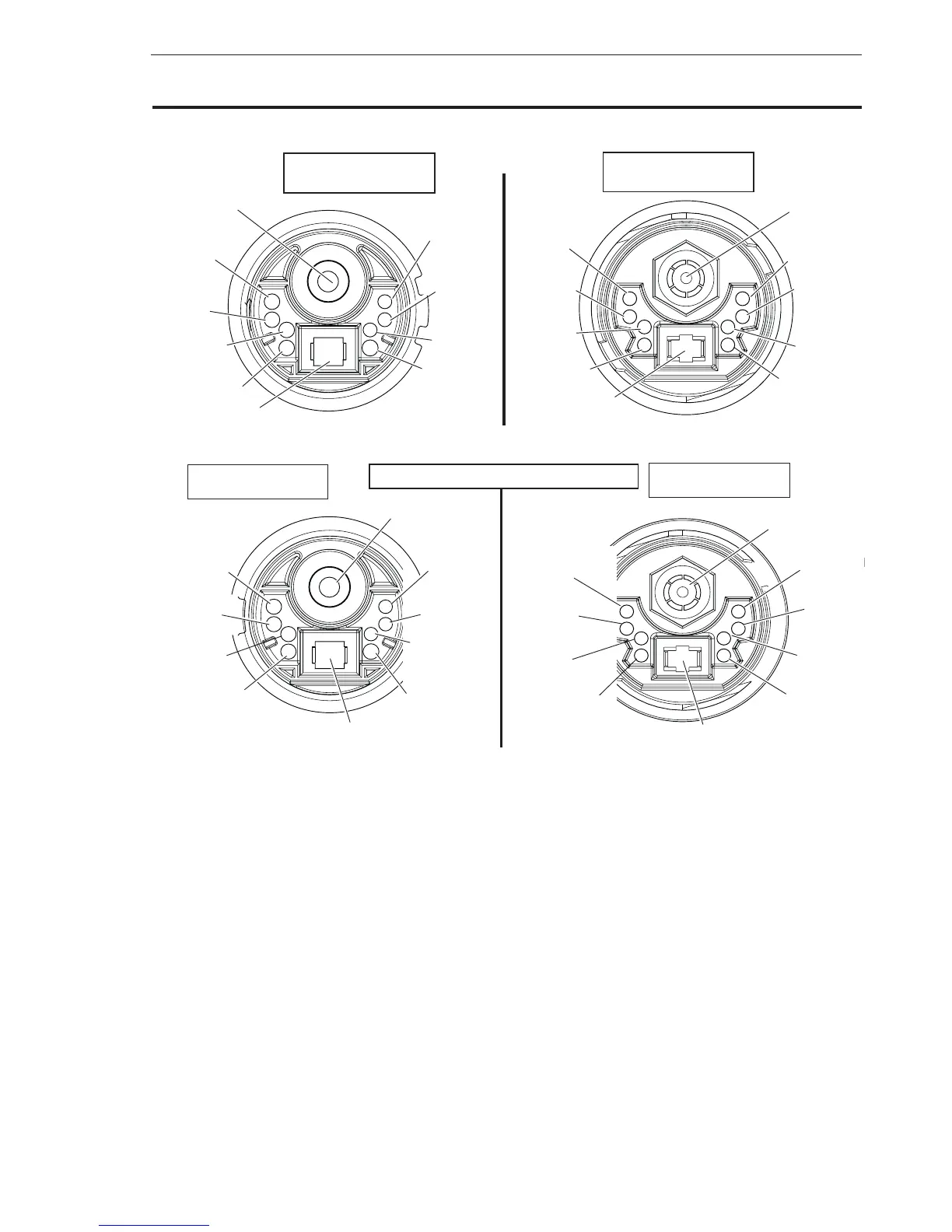

APPENDIX 3: TORCH PIN - OUT DIAGRAMS
A. Hand Torch Pin - Out Diagram
1
2
3
4
5
6
7
8
5
6
7
8
1
2
3
4
ATC Female Receptacle
Front View
Pilot
Pilot
6 - Open
7 - Open
8 - Open
5 - Open
Negative /
Plasma
6 - Open
7 - Open
5 - Open
2 - PIP
3 - Switch
4 - Switch
1 - PIP
4 - Green /
Switch
2- Orange /
PIP
3 - White /
Switch
1 - Black /
PIP
Negative /
Plasma
8 - Ground
ATC Male Connector
Front View
A-03701
B. Mechanized (Machine) Torch Pin - Out Diagram
ATC Female Receptacle
Front View
ATC Male Connector
Front View
Negative / Plasma
3 - White -
Pendant
Connector
4- Black -
Pendant
Connector
2 - Orange /
PIP
1 - Black /
PIP
Pilot
2 - PIP
1 - PIP
6 - Open
7 - Open
5 - Open
8 - Ground
8 - Green -
Pendant
Connector
Ground
5 - White /
Not Used
7 - Green /
Not Used
6 - Open
UNSHIELDED MACHINE TORCH
3 - Switch
4 - Switch
Art # A-03799
Negative / Plasma
Pilot
1
2
3
4
5
6
7
8
5
6
8
1
2
3
4
7
