Thermal Dynamics CUTMASTER - Gas Connections

CUTMASTER 35mm, 40mm
Manual 0-5118 3-3 INSTALLATION
3.04 Gas Connections
Connecting Gas Supply to Unit
The connection is the same for compressed air or high pressure cylinders. Refer to the following
two subsections if an optional air line lter is to be installed.
1. Connect the air line to the inlet port. The illustration shows typical ttings as an example.
NOTE
For a secure seal, apply thread sealant to the fitting threads, according to manufacturer's instructions. Do
not use Teflon tape as a thread sealer, as small particles of the tape may break off and block the small air pas-
sages in the torch.

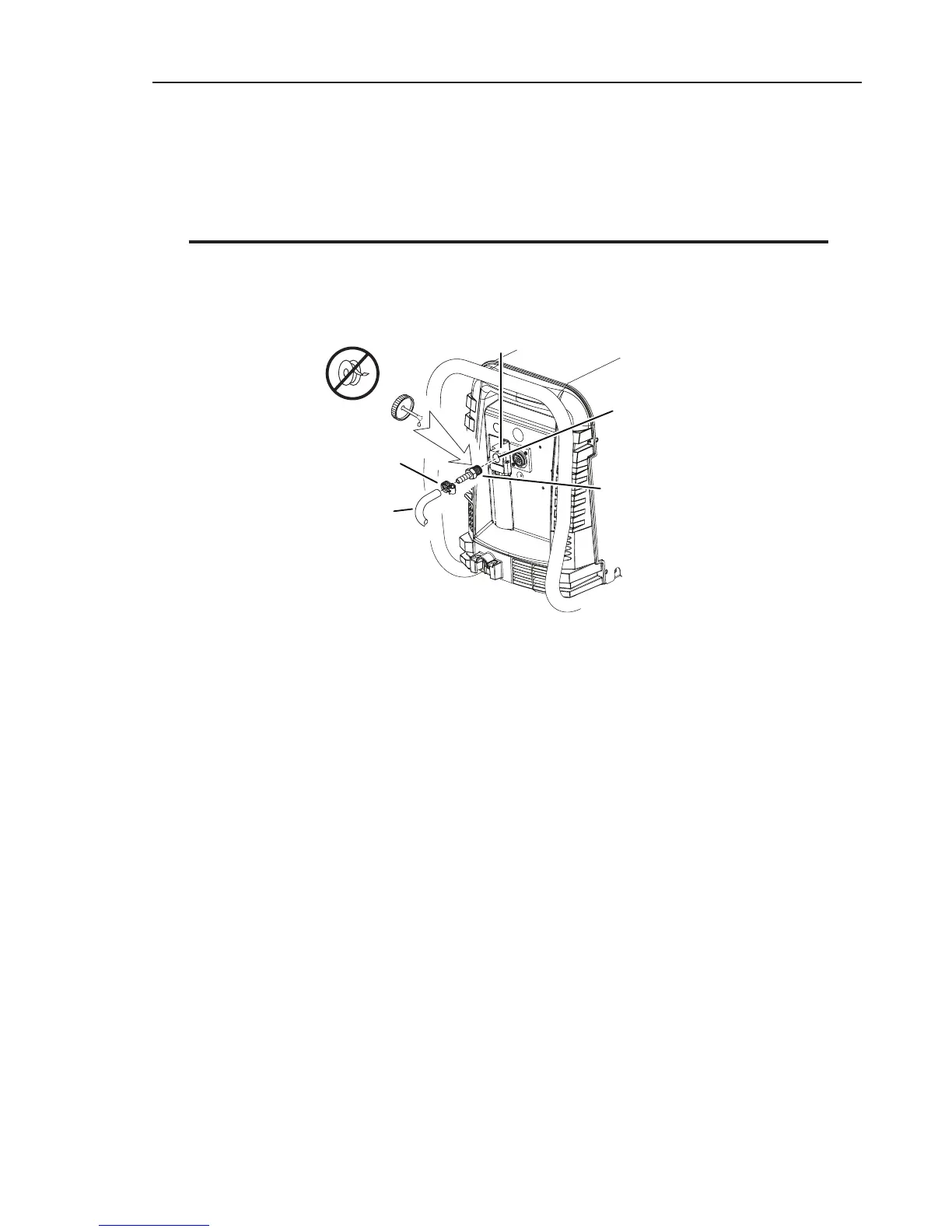

Art # A-07943
Hose Clamp
Regulator/Filter
Assembly
Inlet Port
Gas Supply
Hose
1/4 NPT or ISO-R
to 1/4” (6mm) Fitting
Air Connection to Inlet Port
Installing Optional Single - Stage Air Filter
An optional lter kit is recommended for improved ltering with compressed air, to keep moisture
and debris out of the torch.
1. Attach the Single - Stage Filter Hose to the Inlet Port.
2. Attach the Filter Assembly to the lter hose.
3. Connect the air line to the Filter. The illustration shows typical ttings as an example.
