Manual 0-2470 9 GENERAL DESCRIPTION
2.01 SYSTEM DESCRIPTION
The Pak Master
®
50
Air Plasma Cutting
System Includes:
• Pak Master
®
50 - The power supply provides 35 amp maximum
output and includes all control circuitry, electrical and gas
inputs and outputs, pilot circuitry, and a quick disconnect torch
leads receptacle. The power supply is shipped with a work
cable and clamp attached. A 230V single-phase primary input
power cable with molded 50 amp plug is optional. Machine
torch systems also include a remote hand control and remote
control wire harness.
• PCH/M-35 Torch with Leads (Packaged Separately) - The torch
provides a maximum 1/2 inch (12 mm) cut capacity. Hand
torches are available in 70° and 90° configurations which
include a handle and multi-position switch assembly. Machine
torches include a rack and pinion mounting assembly. A
phenolic (plastic) pinch block mounting assembly is optional.
Torch leads are available in 12.5, 25, or 50 ft (3.8, 7.6, or 15.2 m)
lengths with a quick disconnect torch leads fitting for simple
installation. The PCH/M-35 includes a spare parts kit which
provides an assortment of replacement consumable torch parts.
• See page 12 for a list of other system options and accessories.

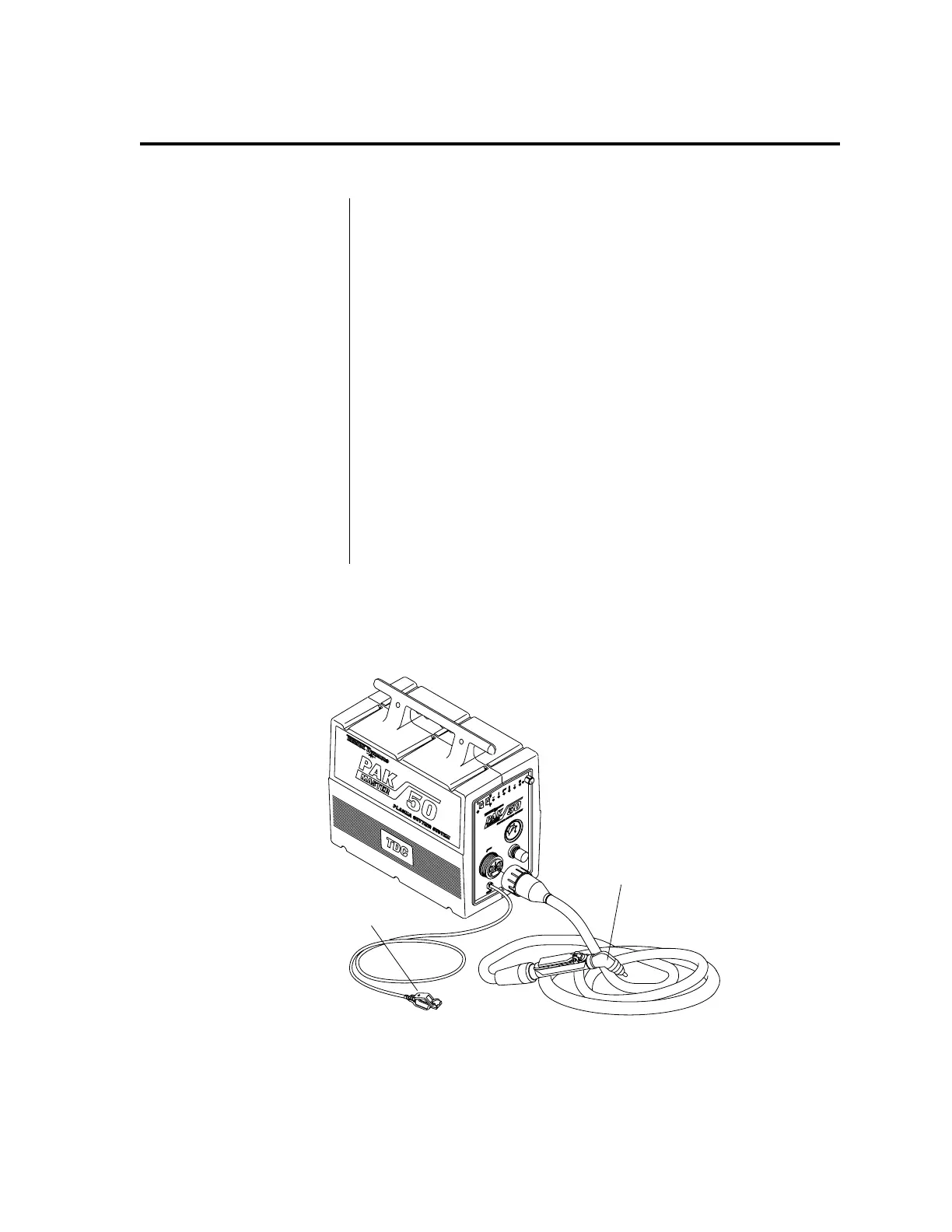

Figure 2-A System Components
SECTION 2: GENERAL DESCRIPTION
Torch
with Leads
Pak Master 50
Power Supply
Work Cable
with Clamp
WORK
TORCH
ON
OFF
AC
TEMP
PIP
GAS
DC
PILOT
CSD
GAS PRESSURE
RUN
SET
CURR
A-00750
