Manual 0-2470 17 INSTALLATION
3.04 INSTALLING THE TORCH
WARNING
CAUTION
Installing the Torch
Disconnect primary power at the source before disassembling
the power supply, torch, or torch leads.
This system is designed for use with the PCH/M-35 torch only.
Do not connect any other torch to this power supply.
1. Check the torch for proper assembly (refer to Torch Parts
Selection, page 31).
2. Connect the torch leads fitting onto the receptacle marked
TORCH on the front panel of the power supply.

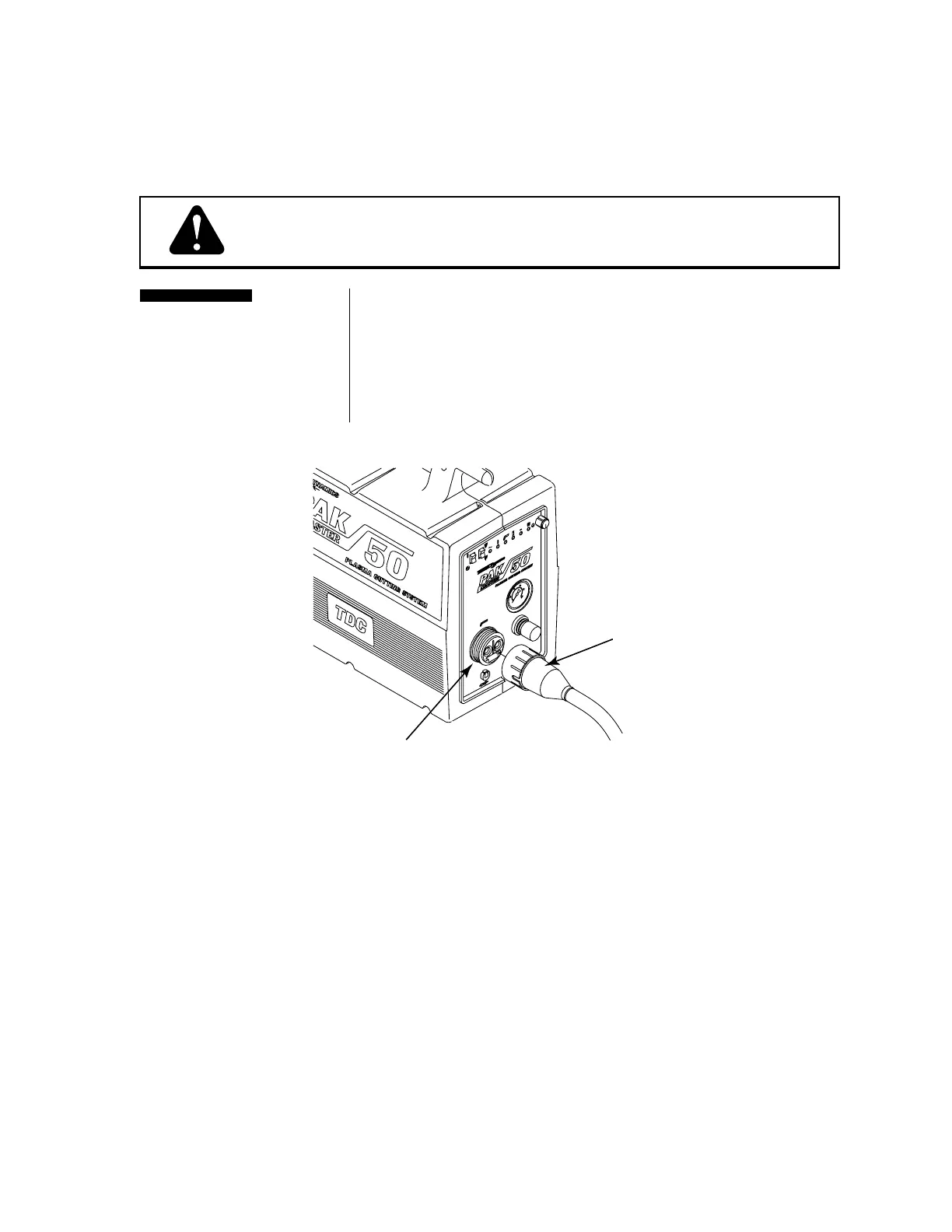

Figure 3-C Torch Connections
Torch Leads
Connector
WORK
TORCH
ON
OFF
AC
TEMP
PIP
GAS
DC
PILOT
CSD
GAS PRESSURE
RUN
SET
CURR
Quick Disconnect
Fitting
A-00751
