Manual 0-2470 31 OPERATION
4.04 TORCH PARTS SELECTION

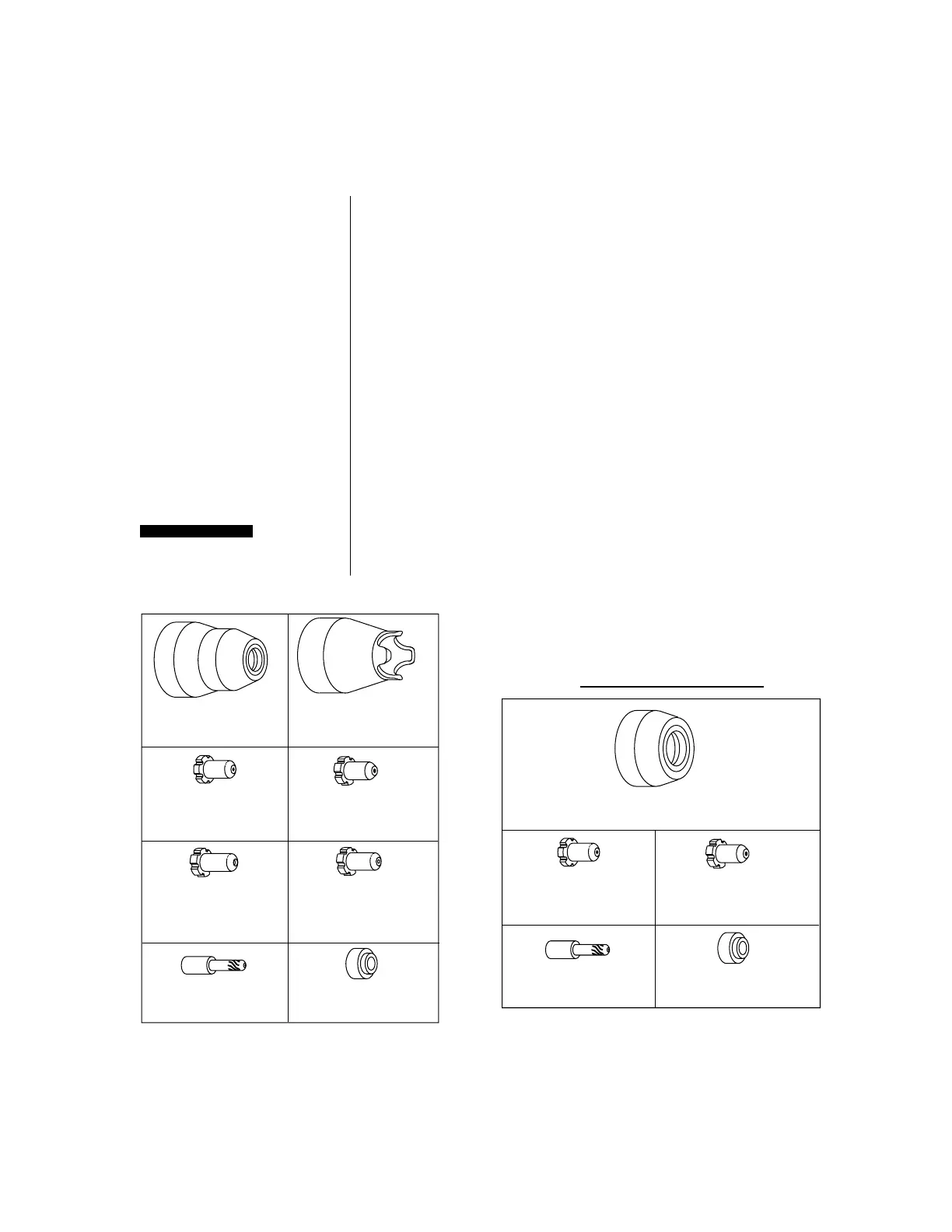

Figure 4-C Torch Parts Selection
The torch parts (shield cup, tip, electrode, and gas distributor)
must correspond with the type of operation (drag cutting, stand-
off cutting, or gouging).
Standard Shield Cup (For Standoff Cutting) ..........................9-6003
Crown Shield Cup Standoff (For Drag Cutting) ....................9-6004
Tip - Standoff Cutting ................................................................9-6000
Tip - Drag Cutting ......................................................................9-6001
Tip - Drag Cutting (Heavy Duty) ............................................ 9-6120
Tip - Gouging ..............................................................................9-6002
Electrode ......................................................................................9-6006
Gas Distributor............................................................................9-6007
Shield Cup Attachment, MaximimLife™ .............................. 9-6503
Tip - Standoff, MaximimLife™................................................ 9-6500
Tip - Drag, MaximimLife™ ...................................................... 9-6501
Electrode, MaximimLife™ ........................................................9-6506
Gas Distributor, MaximimLife™..............................................9-6507
Do not use MaximimLife™ parts with standard parts.
MaximimLife™ shield cup attachment (No. 9-6503) must be
installed over the standard shield cup.
Torch Parts Selection
MaximumLife™ Parts
CAUTION
A-00017
Standard Shield Cup
Catalog No. 9-6003
Crown Shield Cup
Catalog No. 9-6004
Standoff Cutting Tip
(.031 in)
Catalog No. 9-6000
Drag Cutting Tip
(.031 in)
Catalog No. 9-6001
Gouging Tip
(.046)
Catalog No. 9-6002
Electrode
Catalog No. 9-6006
Gas Distributor
Catalog No. 9-6007
Heavy Duty Drag Tip
(.036 in)
Catalog No. 9-6120
MaximumLife™ Parts
A-00318
Shield Cup
Catalog No. 9-6503
Standoff
Cutting Tip (.031 in)
Catalog No. 9-6500
Drag
Cutting Tip (.031 in)
Catalog No. 9-6501
Electrode
Catalog No. 9-6506
Gas Distributor
Catalog No. 9-6507
