Manual 0-2470 71 PARTS LIST

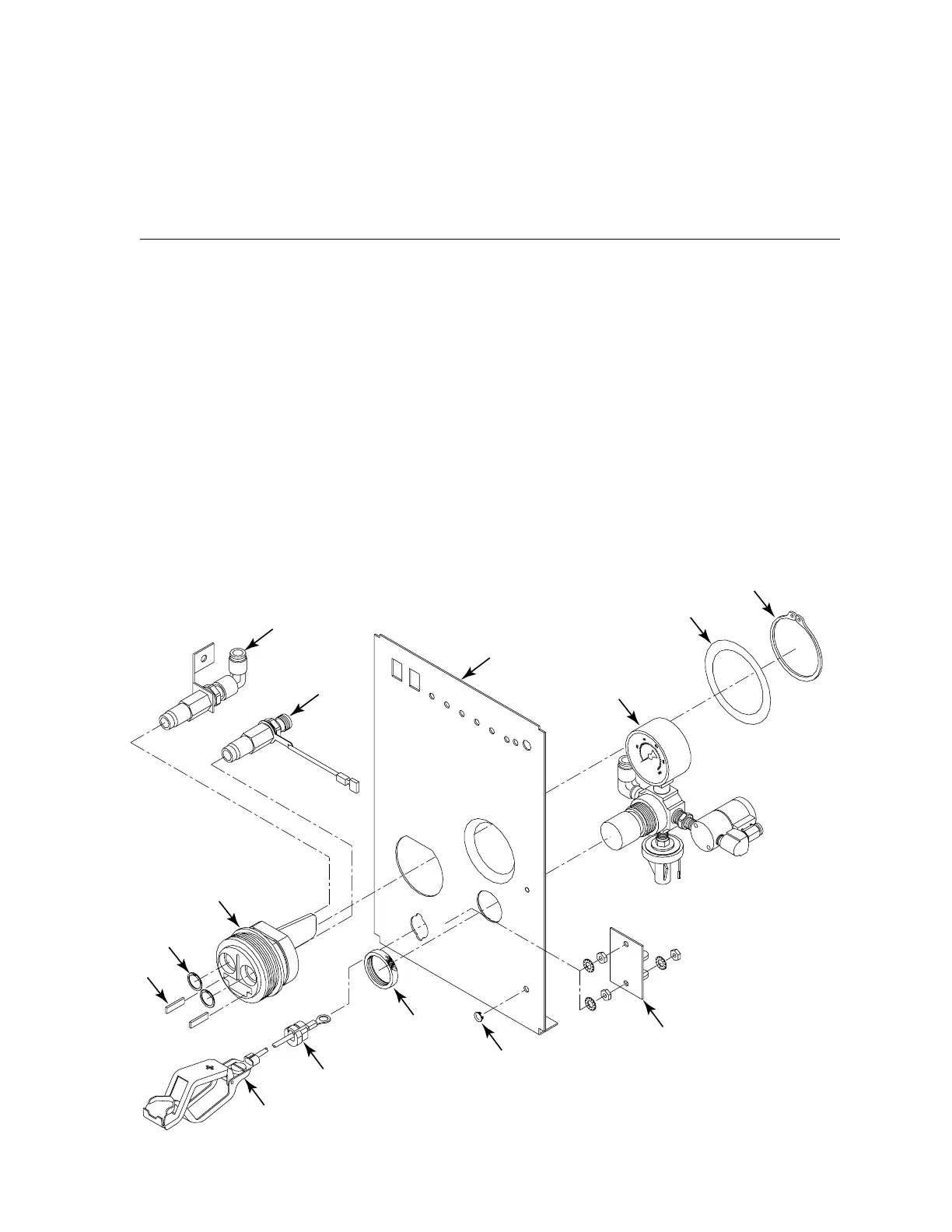

6.03 FRONT PANEL COMPONENTS
Item Qty. Catalog Description Reference
No. Number Designator
1 1 9-6236 Front Panel
2 1 9-6207 Regulator/Solenoid Assembly (see page 62)
1 9-5834 Quick Disconnect Replacement Kit - Includes Items 3-6:
3 1 Quick Disconnect Body
4 1 Quick Disconnect Retaining Ring Clip
5 1 Quick Disconnect Body Wave Spring Washer
6 2 9-4488 Socket Retaining Ring Clip
7 1 9-6237 RF Filter PC Board Assembly PCB
8 1 9-6221 Socket Assembly - Plasma
9 1 8-6332 Socket Assembly - Secondary
10 2 8-7071 Hole Plug - 1/4
11 2 9-6240 Bumper, Locking Tab, Signal Connector
12 1 8-4249 Strain Relief (Work Cable)
13 1 8-4247 Work Cable with Clamp - 10 ft
1 8-5560 Work Cable Clamp
1 8-4243 Ground Tag (Not Shown)
9
8
1
3
6
11
12
13
10
7
2
2
5
4
A-00763
To Next Page
