Thermal Dynamics Pak Master 50 - Base Panel Components

Manual 0-2470 73 PARTS LIST

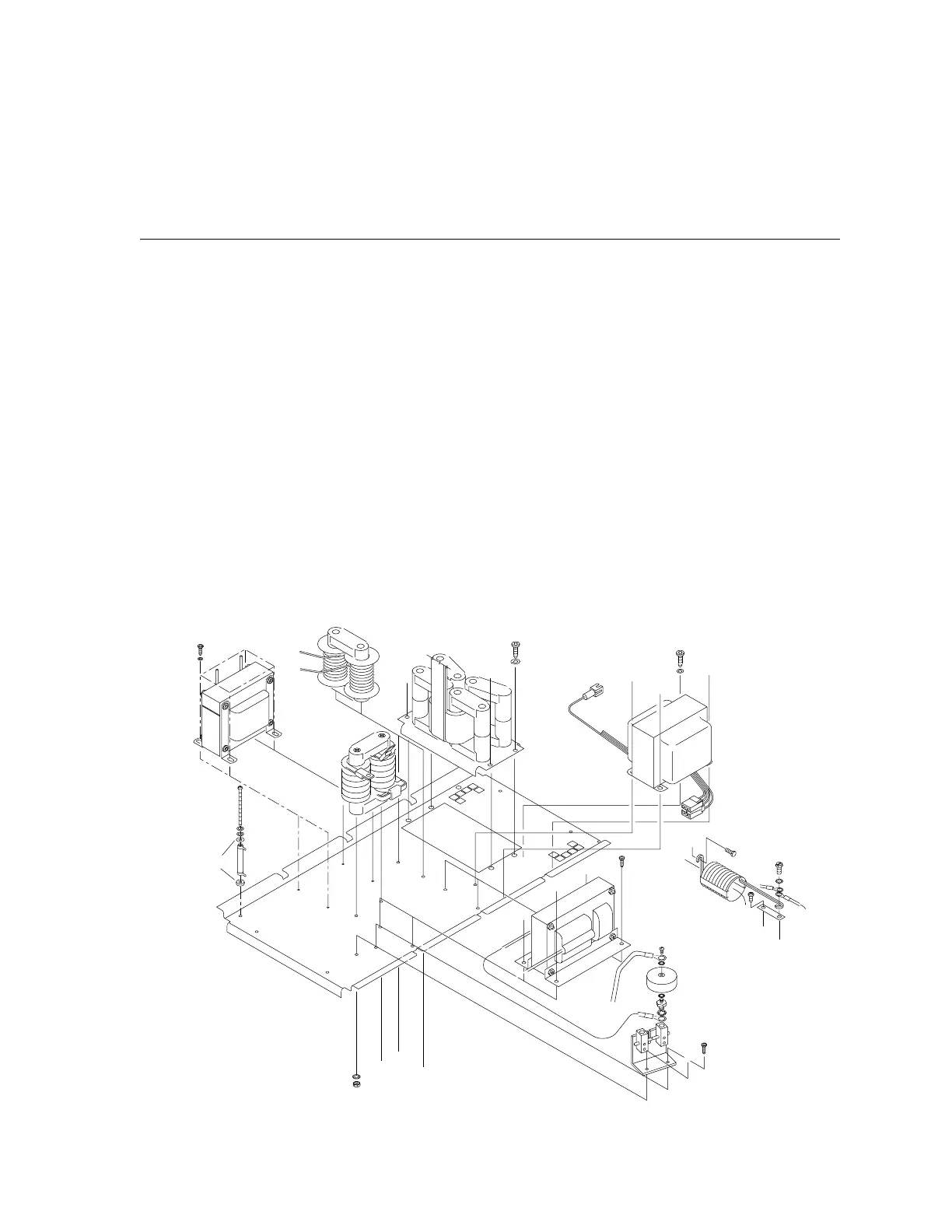

6.05 BASE PANEL COMPONENTS
Item Qty. Catalog Description Reference
No. Number Designator
1 1 8-2192 Auxiliary Transformer - IEC Models T1
2 1 9-6202 Work Lead Inductor L7
3 1 9-6203 Output Inductor Assembly L6
4 1 9-5528 High Frequency Transformer Assembly T2
5 1 9-6205 Spark Gap Assembly
6 1 9-6229 Single Circuit Receptacle
7 1 9-6200 Main Transformer T3
8 1 9-6201 Pilot Inductor Assembly L4
9 1 9-6213 Base Panel
10 2 9-3133 Fiber Washer
11 1 9-6214 Resistor - 10 ohm, 12 watt R
12 1 8-4243 Ground Tag
13 1 8-4281 Male Adaptor
14 1 9-5770 Disc Capacitor C
15 1 9-6239 Bracket, Inductor Lead Connection
16 1 9-6203 HF Inductor Coil
2
10 11
9
3
8
7
6
1
4
14
5
13
12
16
15
A-00774
