Thermal Dynamics Pak Master 50 - Consumable Torch Parts

Manual 0-2470 79 PARTS LIST
5.10 CONSUMABLE TORCH PARTS
Qty. Catalog Description
Number
1 9-6003 Standard Shield Cup (For Standoff Cutting)
1 9-6004 Shield Cup Standoff Attachment (for Drag Cutting)
1 9-6000 Tip - Standoff Cutting
1 9-6001 Tip - Drag Cutting
1 9-6120 Tip - Drag Cutting (Heavy Duty)
1 9-6002 Tip - Gouging
1 9-6006 Electrode
1 9-6007 Gas Distributor
MaximumLife™ Parts
1 9-6503 MaximimLife™ Shield Cup Attachment (Install Over Standard Cup)
1 9-6500 MaximimLife™ Standoff Cutting Tip
1 9-6501 MaximimLife™ Drag Cutting Tip
1 9-6506 MaximimLife™ Electrode
1 9-6507 MaximimLife™ Gas Distributor

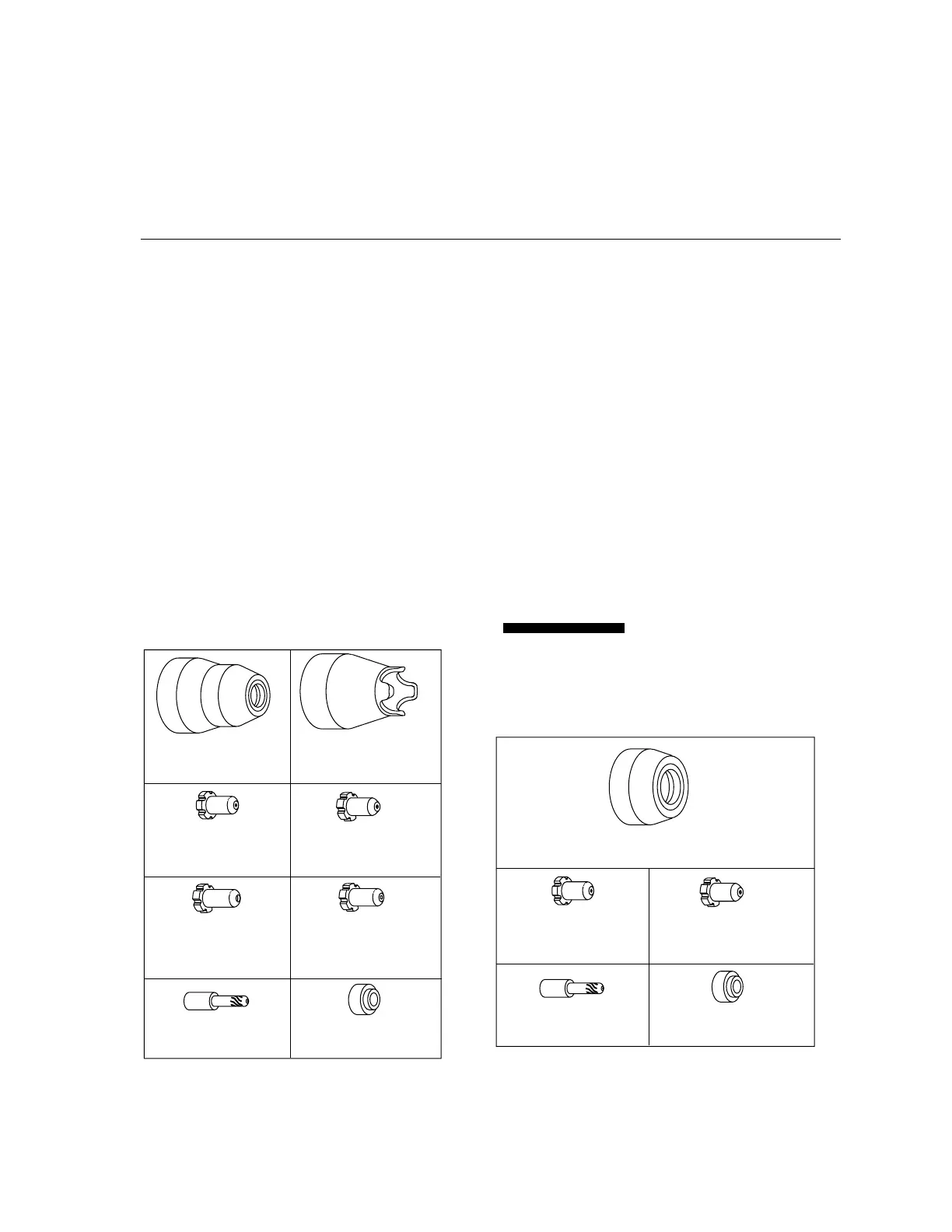

A-00017
Standard Shield Cup
Catalog No. 9-6003
Crown Shield Cup
Catalog No. 9-6004
Standoff Cutting Tip
(.031 in)
Catalog No. 9-6000
Drag Cutting Tip
(.031 in)
Catalog No. 9-6001
Gouging Tip
(.046)
Catalog No. 9-6002
Electrode
Catalog No. 9-6006
Gas Distributor
Catalog No. 9-6007
Heavy Duty Drag Tip
(.036 in)
Catalog No. 9-6120
CAUTION
Do not use MaximimLife™ parts (Tips, Gas
Distributor or Electrode) with standard parts.
Shield cup attachment (No. 9-6503) must be
installed over the standard shield cup.
A-00318
Shield Cup
Catalog No. 9-6503
Standoff
Cutting Tip (.031 in)
Catalog No. 9-6500
Drag
Cutting Tip (.031 in)
Catalog No. 9-6501
Electrode
Catalog No. 9-6506
Gas Distributor
Catalog No. 9-6507
