PARTS LIST 72 Manual0-2470

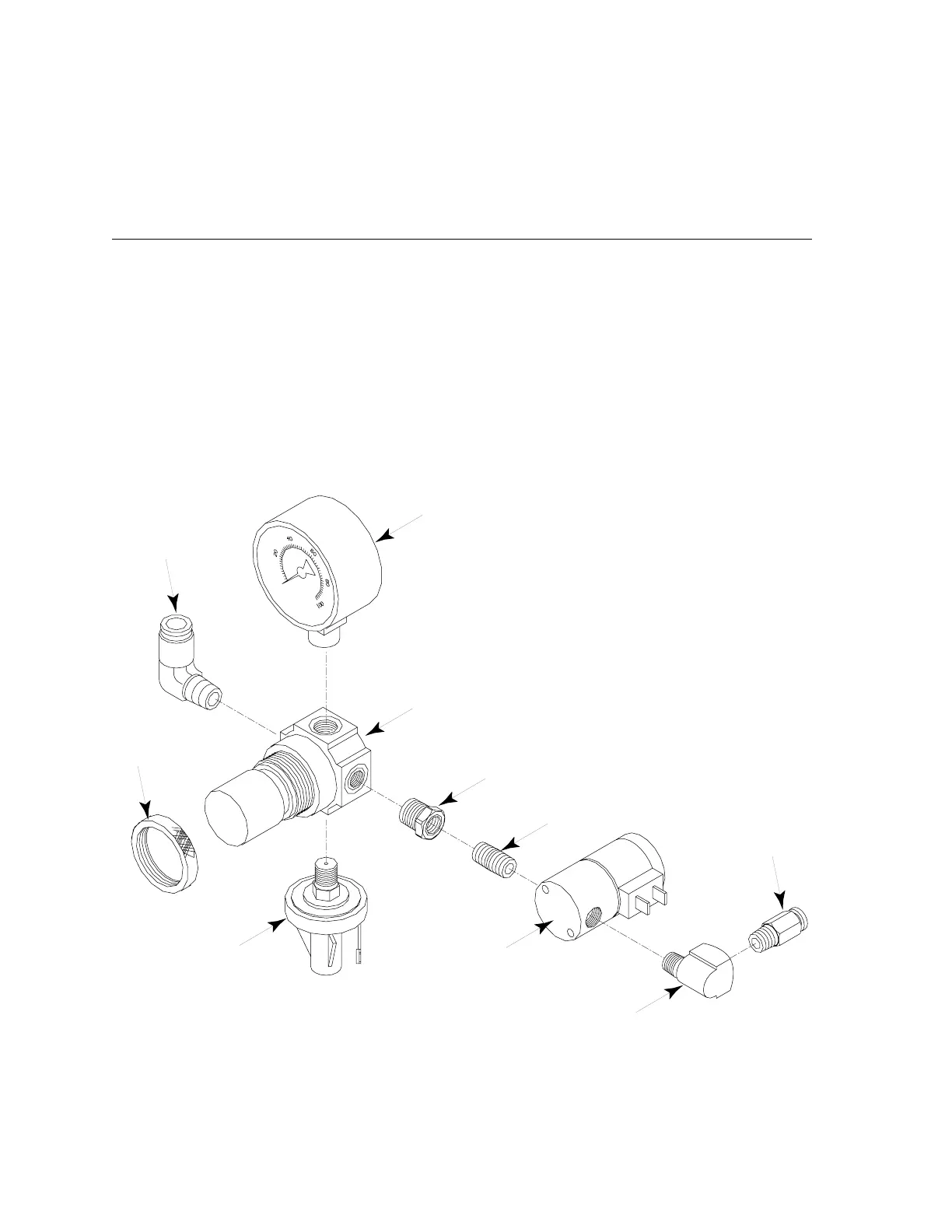

6.04 REGULATOR/SOLENOID ASSEMBLY
Item Qty. Catalog Description Reference
No. Number Designator
1 9-6207 Regulator/Solenoid Assembly - Includes:
1 1 8-4382 Regulator
2 1 8-3370 Solenoid Valve, 1/8 NPT SOL
3 1 8-5533 Pressure Switch, 42 psi PS
4 1 8-0354 Fitting - 1/8 NPT Close Nipple
5 1 8-3369 Reducer Bushing
6 1 9-6220 Gauge - 0-100 PSI/BAR
7 1 9-6230 Fitting - 1/4 NPT x 3/8 Tube, Straight
8 1 9-2023 Fitting - 1/4 - 1/8 NPT Reducer
6
1
8
4
7
3
5
5
1
2
A-00764
