CUSTOMER/OPERATOR SERVICE 44 Manual 0-2470
5.02 REPLACING CONSUMABLE TORCH PARTS
Disconnect primary power to the system before disassembling
the torch, leads, or power supply.
DO NOT TOUCH internal torch parts while the AC indicator on
the front panel of the power supply is lit.
The tip, gas distributor, and electrode are held in place by the
shield cup. Position the torch with the shield cup facing upward
to prevent these parts from falling out when the cup is removed.
Refer to Figure 5-A and:
1. Unscrew and remove the shield cup from the torch. Inspect
the cup for damage. Wipe it clean or replace if damaged.
2. Remove the tip. Check for excessive wear (indicated by an
elongated or oversized orifice). Clean and replace the tip if
necessary.
3. Remove the gas distributor and check for excessive wear,
plugged gas holes, or discoloration. Replace if necessary.
WARNING
WARNING
NOTE

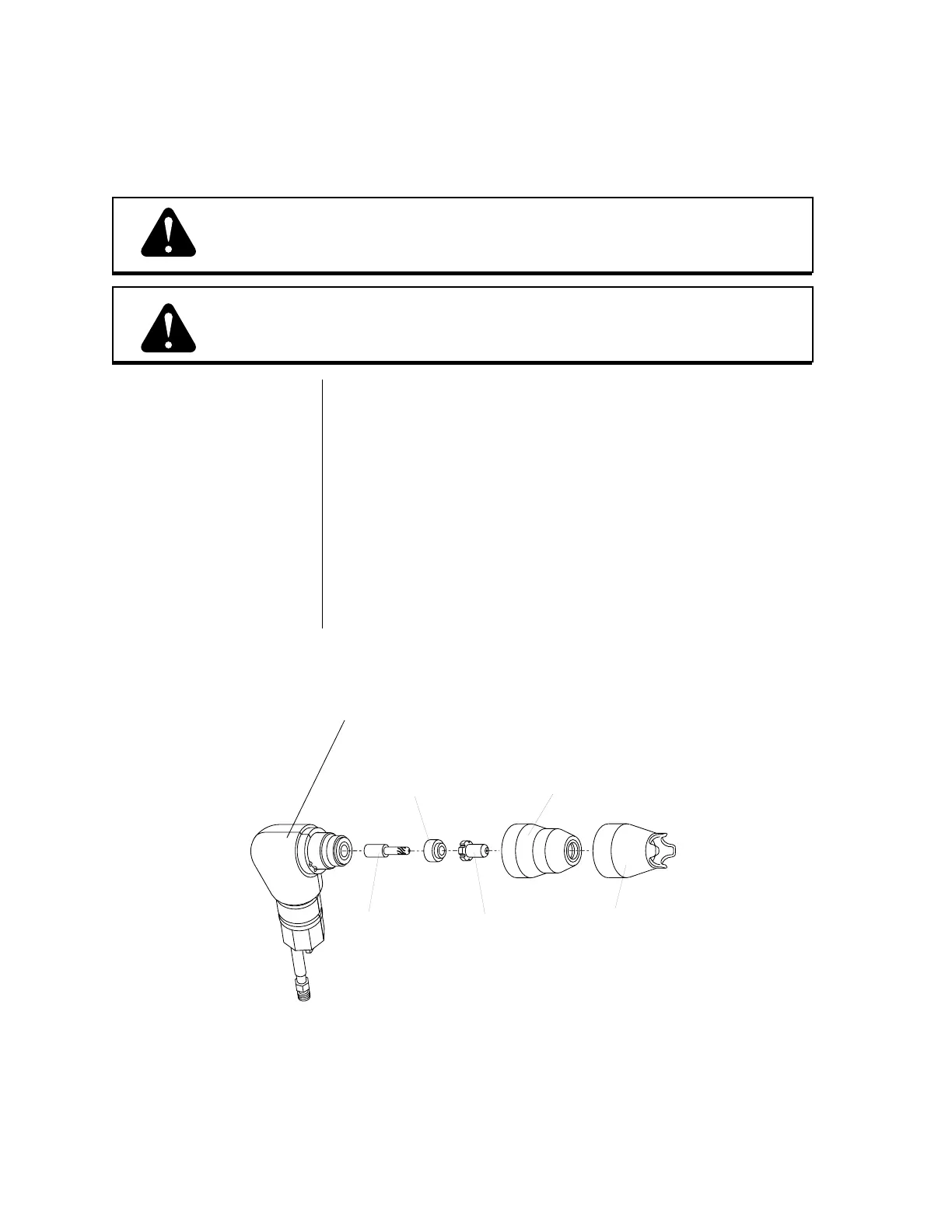

Figure 5-A PCH/M-35 Consumable Parts
Torch Head Assembly
(70° Hand Torch Shown)
Standard
Shield Cup
Crown (Castle)
Shield Cup
Extension
Gas
Distributor
Tip
Electrode
A-00016
