Thermal Dynamics Pak Master 50 - Page 15

Manual 0-2470 11 GENERAL DESCRIPTION
2.02 SPECIFICATIONS (continued)

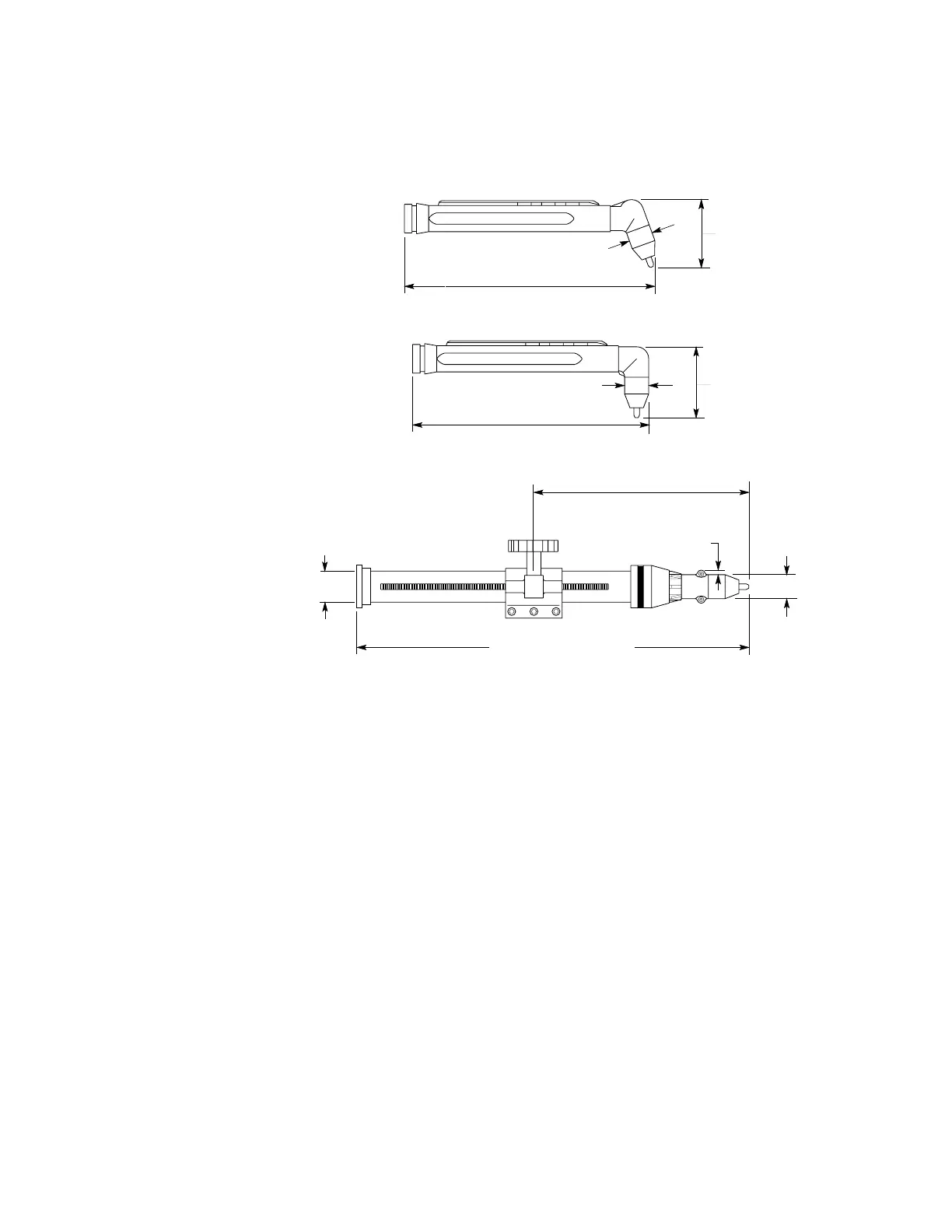

Figure 2-B PCH/M-35 Torch Dimensions
3.09 in
(78 mm)
9.59 in
(244 mm)
1.06 in
(27 mm)
8.95 in
(227 mm)
1.06 in
(27 mm)
2.95 in
(75 mm)
1.38 in
(35 mm)
0.20 in (5 mm)
6.21 in (158 mm) Min.
14.72 in (374 mm) Max.
16.60 in (422 mm)
1.06 in
(27 mm)
A-00009
PCM-35 Machine Torch
with Rack and Pinion
Mounting Assembly
PCH-35 70 ° Hand Torch
PCH-35 90 ° Hand Torch
