INSTALLATION 22 Manual 0-2470
3.06 ELECTRICAL CONNECTIONS (continued)
Input Power Input Current Freq. Recommended Sizes
Voltage 1-Ph 3-Ph 1-Ph 3-Ph Fuse (Amps) Wire (AWG) Wire (Canada)
(Volts) (kVA) (kVA) (Amps) (Amps) (Hz) 1-Ph 3-Ph 1-Ph 3-Ph 1-Ph 3-Ph
180 7 5 37 17 50/60 45 20 10 14 8 10
200 7 5 33 15 50/60 40 20 10 16 8 12
220 7 5 30 14 50/60 35 20 10 16 8 12
240 7 5 28 13 50/60 35 15 12 12 8 12
380 7 5 18 8 50/60 25 10 14 18 10 12
460 7 5 14 7 50/60 20 10 16 18 10 12
506 7 5 13 6 50/60 15 8 16 18 12 12
Table 3-A Line Voltages with Recommended Circuit Protection and Wire Sizes
(Based on Table 310-16, 1987 National Electric Code) and Table 4, Canadian
Electrical Code.

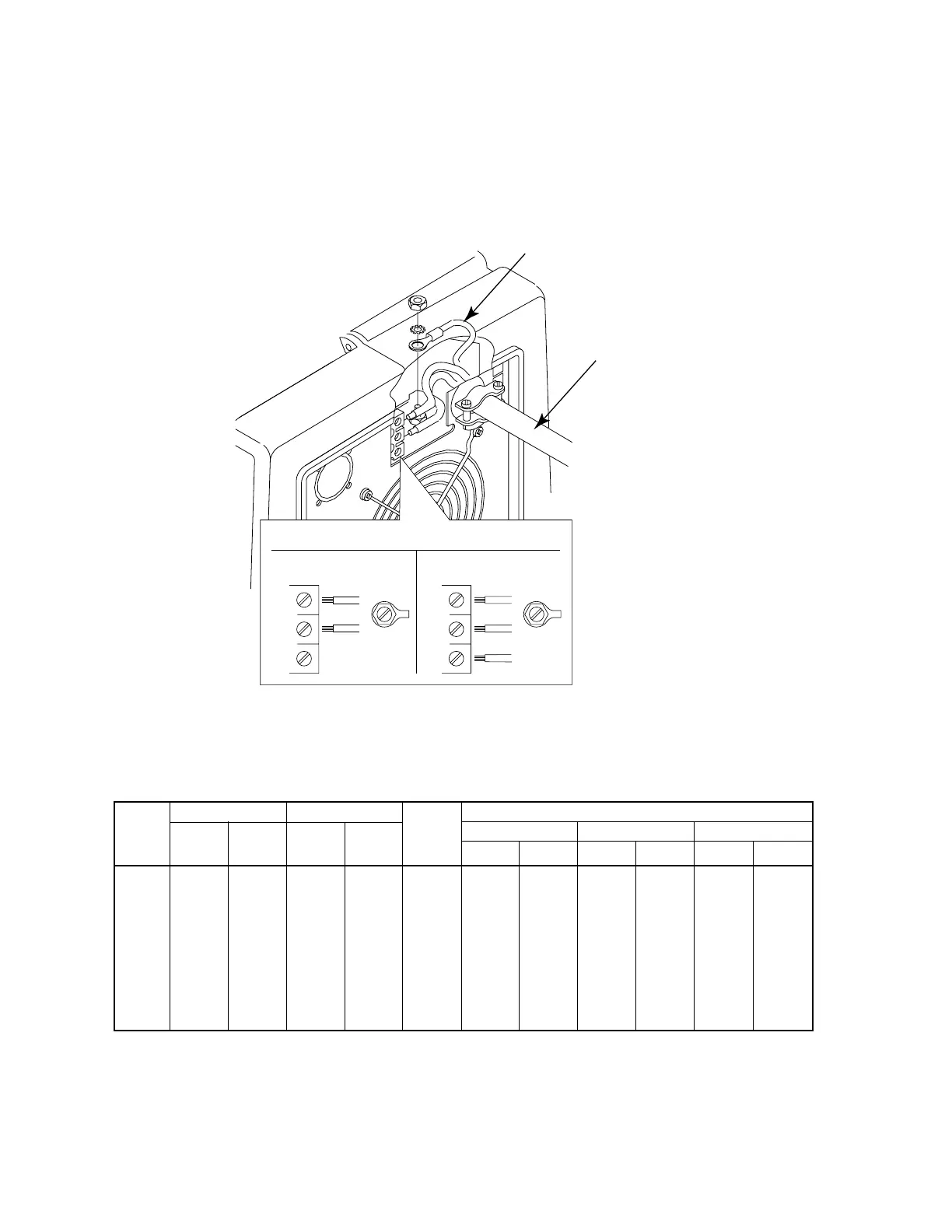

Figure 3-F Input Power Cable Connections
Ground Wire
REMOTE
CONTROL
L1
L2
L3
GND
L1
L2
L3
GND
Single-Phase (1
ø ) Three-Phase (3 ø )
Input Power Cable Connections
Input Power
Cable
A-00756
