INSTALLATION 26 Manual 0-2470
3.08 GAS CONNECTIONS (continued)

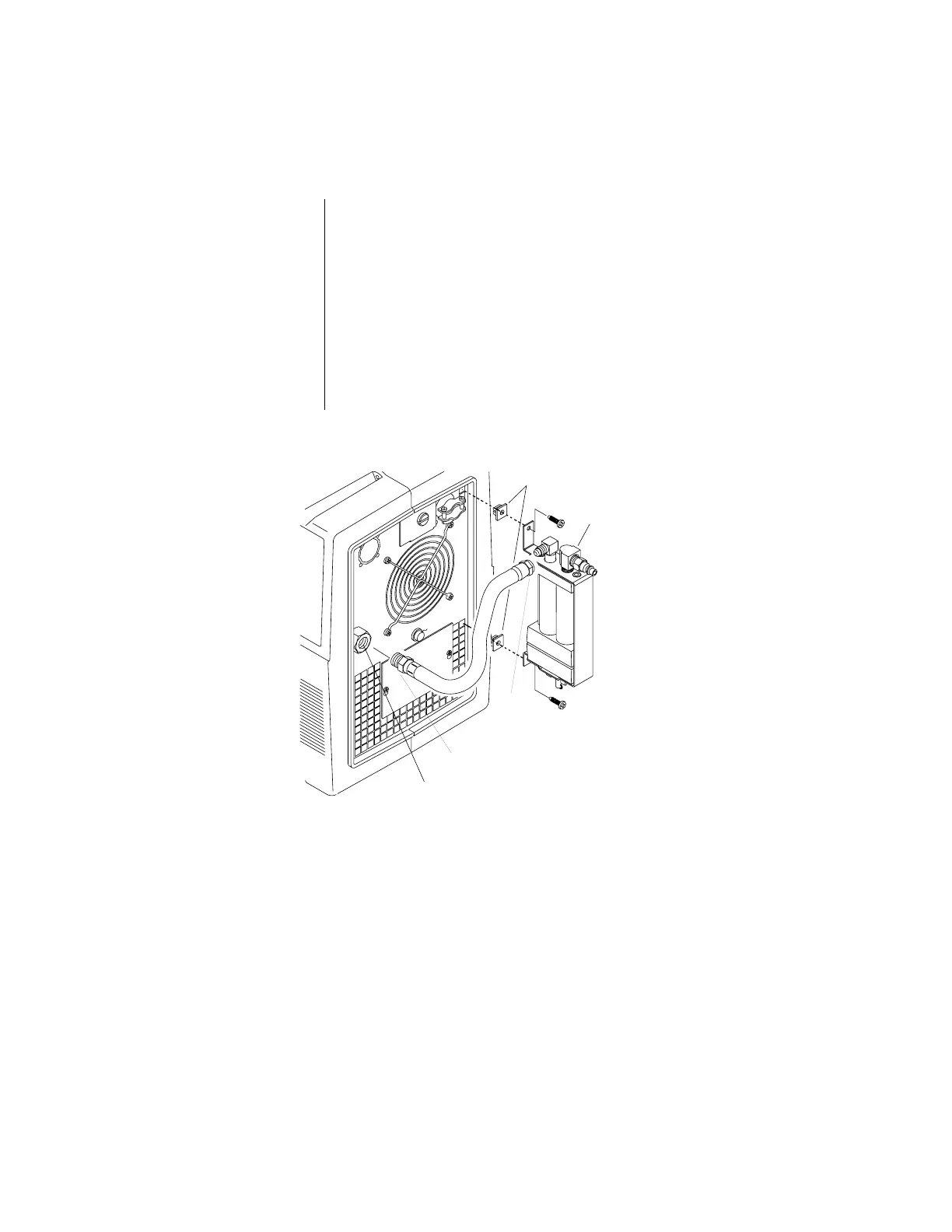

Figure 3-I Gas Connections Using Optional Air Line Filter
Refer to Figure 3-I and:.
1. Press fit the nylon screw receptacles into the rear panel
openings as shown.
2. Secure the air filter with bracket to the power supply with the
1/2 in pan head screws.
3. Connect the 1/4 NPT male coupling of the gas hose assembly
to the power supply first, then connect the female JIC fitting
to the air filter . Tighten both fittings with a 9/16 in wrench.
Supply hoses must be at least #6 hose (3/8 in or 9.5 mm I.D.).
Installing
Air Line Filter
NOTE
Rear Panel Fitting
(1/4 NPT)
Air Filter
Assembly
Nylon Screw
Receptacles
Female
JIC
Male
1/4 NPT
A-00759
To Next Page
