OPERATION 38 Manual 0-2470
4.08 OPERATING WITH A MACHINE TORCH (continued)
Cutting with a
Machine Torch
The machine torch can be activated by remote control pendant or
by a remote interface device such as CNC.
Refer to Figure 4-E below and:
1. Use a square to align the torch perpendicular to the work-
piece to obtain a clean, vertical cut (see Setting Up the Torch,
page 20).
2. To start a cut at the plate edge, position the center of the torch
along the edge of the plate

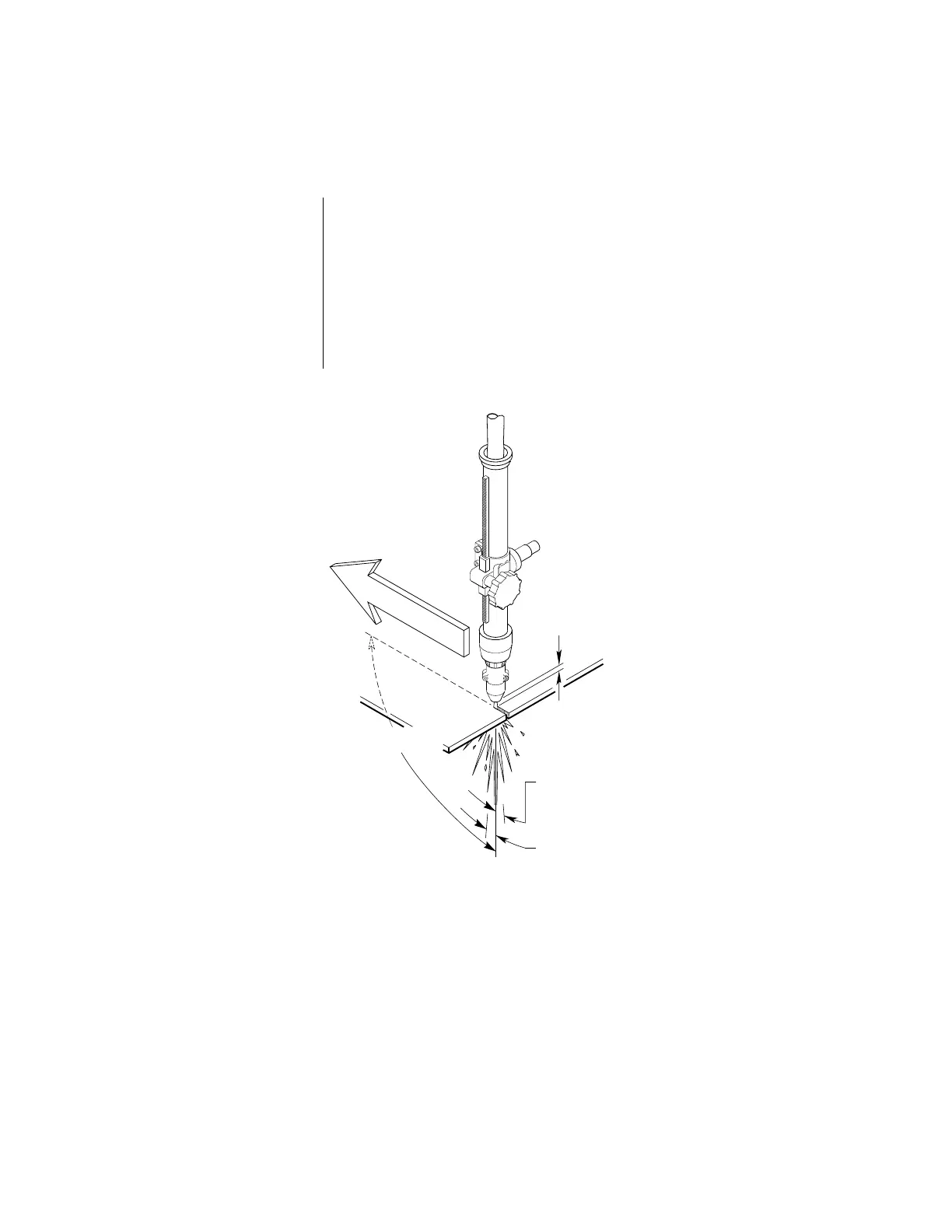

Figure 4-E Machine Torch Set-up and Operation
Standoff Distance
Straight Arc
Trailing Arc
Leading Arc
Direction of Torch Travel
Shown with
Optional Rack and Pinion
Mounting Assembly
A-00008
To Next Page
