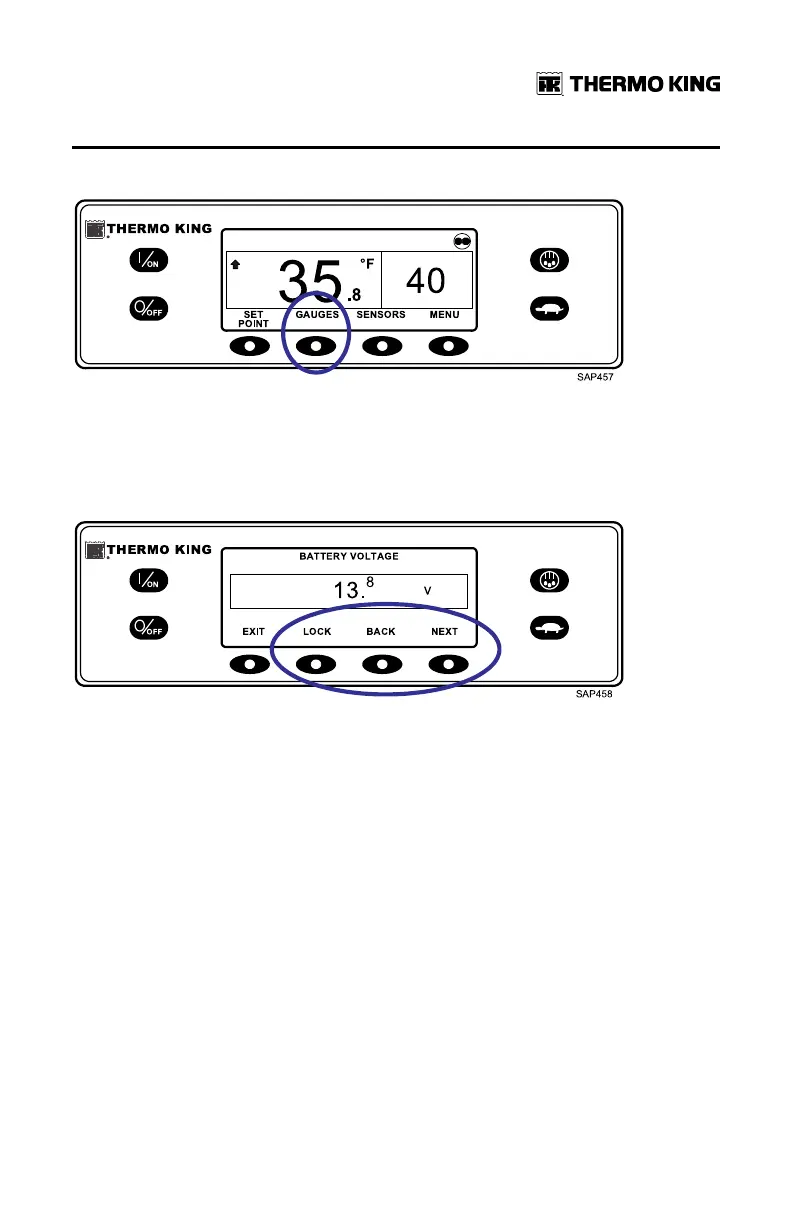

Figure 48. Gauges Key
The first gauge display will appear. Press the NEXT and BACK keys to scroll
through the gauges. The Battery Voltage Gauge is shown (Figure 49, p. 45).
Press the LOCK key to lock the selected gauge on the display.
Figure 49. Next, Back, Lock Keys
The gauges and I/O conditions available are shown below. The order in
which the gauges appear may vary slightly based on software revision. Not
all gauges may appear, depending on unit configuration and software
revision.
To return to the Standard Display press the EXIT key.
Gauges Available
CCoooollaanntt TTeemmppeerraattuurree:: Displays the temperature of the engine coolant.
CCoooollaanntt LLeevveell:: Displays the coolant level in the overflow tank as OK or
LOW.
EEnnggiinnee OOiill PPrreessssuurree:: Displays the engine oil pressure as OK or LOW.
EEnnggiinnee OOiill LLeevveell:: Displays the engine oil level as OK or LOW.
AAmmppss:: Displays the current flow in amps flowing to or from the unit battery.
BBaatttteerryy VVoollttaaggee:: Displays the voltage of the unit battery.
OOppeerraattiinngg IInnssttrruuccttiioonnss ffoorr PPrreemmiiuumm HHMMII CCoonnttrrooll PPaanneell
