TK 56704-1-OP-EN
65

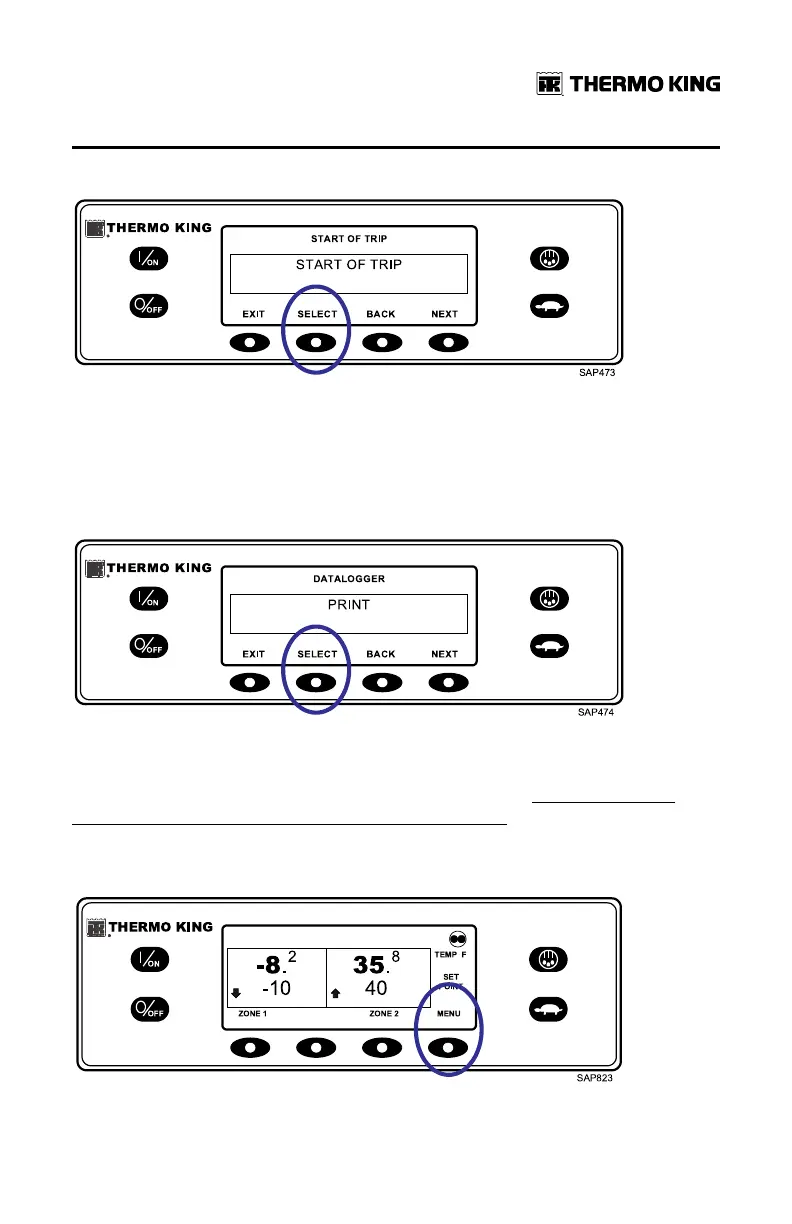

Figure 72. Start of Trip
Press the NEXT key to select the PRINT feature. The PRINT screen will
appear. Press the SELECT key to print the most recent trip record to the
optional remote printer. Pressing the EXIT key returns the display to the
Main Menu.
Figure 73. Select Key
Hourmeters Menu
Hourmeters are displayed using the Hourmeter Menu. Only hourmeters
enabled in the Guarded Access Menu will be shown. From the Standard
Display, press the MENU key.
Figure 74. Menu Key
OOppeerraattiinngg IInnssttrruuccttiioonnss ffoorr PPrreemmiiuumm HHMMII CCoonnttrrooll PPaanneell
