TK 56430-18-IP-EN

Section 3 - Required Tools

Overview

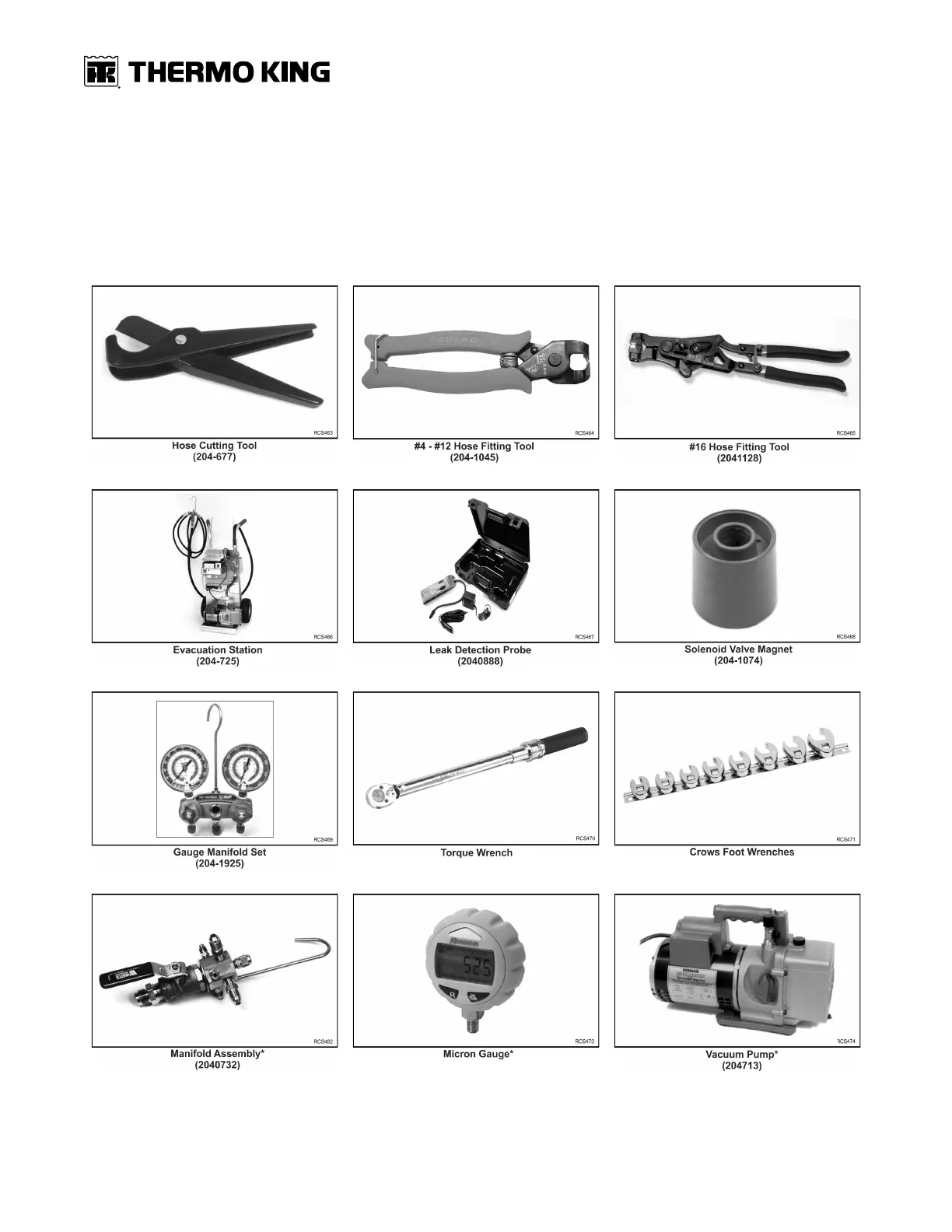

While basic mechanics tools and refrigeration service equipment are a necessity, there are also special tools that are

required when installing Thermo King Vehicle Powered Truck Units. Using these tools will assure the installation is

done correctly. Many of these are available from Thermo King.

*These are included with the Evacuation Station 204-725.
