Liquid Injection Temperature Sensor Installation Procedures
(Max Units Only)
1. Inspect alignment of sensing pad with respect to plastic clip. The curves in the two parts should be perfectly aligned
with each other as shown below.

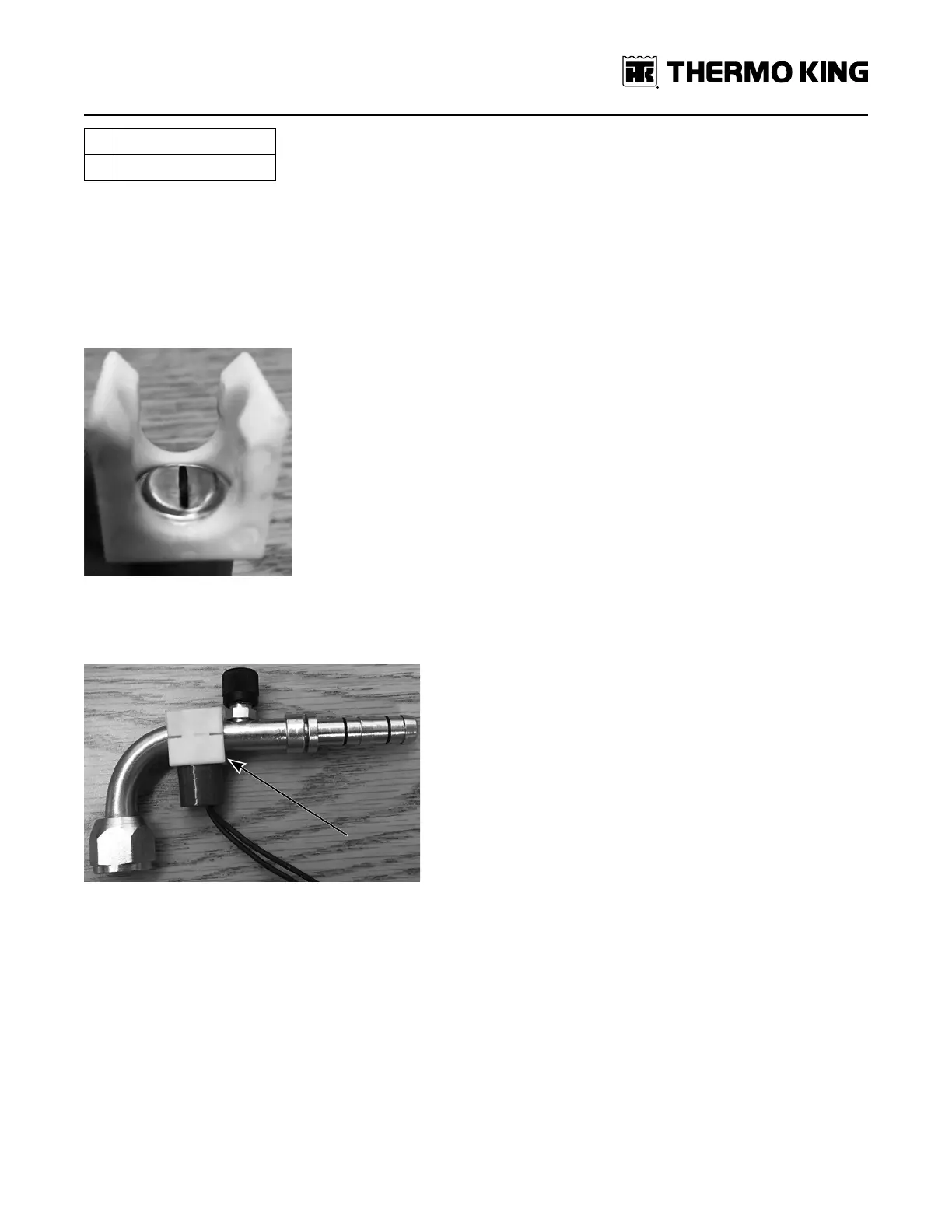

Figure 38. Sensing pad and plastic clip shown perfectly aligned.
2. Clip the temperature sensor onto the straight portion of the compressor discharge fitting as shown below.
Figure 39. Temperature sensor shown correctly installed.
3. Verify the temperature sensing pad is touching the fitting as shown by looking down the fitting.
NNoottee:: If a gap is present, thermal paste should be applied between the fitting and the temperature sensor. This will
verify the correct temperature is being read.
