TK 56430-18-IP-EN
63
Unsealed Connectors
Unsealed connectors are designed for use in the interior of the vehicle where protection from moisture and dirt are not
required (i.e., In-Cab controller harness).The harness supplied with the unit comes with the in-cab controller connector
installed. This connector simply plugs into the mating connector on the back of the controller.
IImmppoorrttaanntt:: Harnesses with factory installed connectors are not be cut, shortened, or otherwise modified by installer.

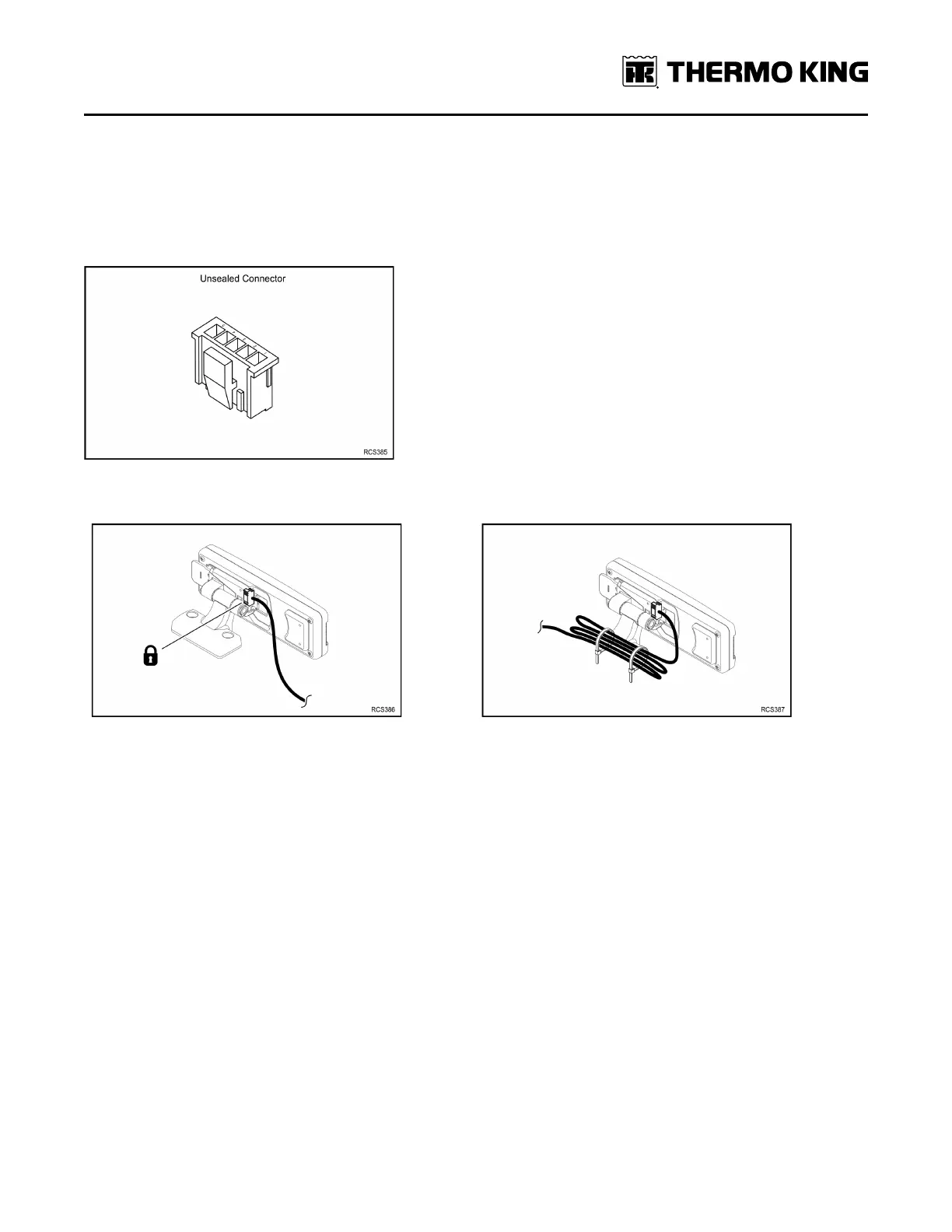

Figure 62. Typical unsealed connector shown.
IImmppoorrttaanntt:: All connectors must be clean and locked together securely.
1. Attach connector to rear of controller verifying it locks securely in
place.
2. Secure any excess harness adequately with band wraps.
SSeeccttiioonn 77 -- EElleeccttrriiccaall SSttaannddaarrddss
