TK 56430-18-IP-EN
49

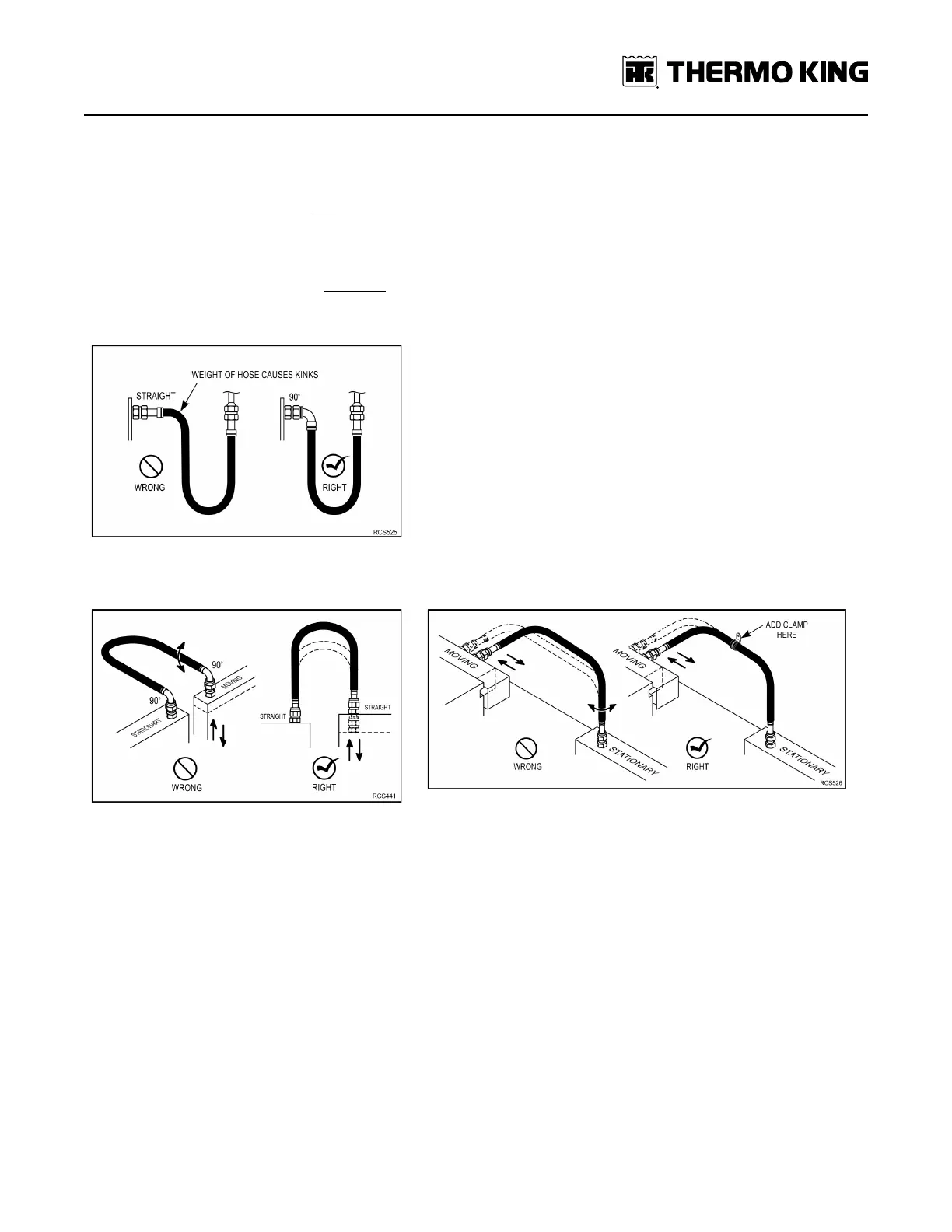

Examples of Hose Designs
Before fabricating hoses, always review how each hose will be routed and connected to the component. Refer to the
following examples showing right and wrong hose designs.
IImmppoorrttaanntt:: Poorly designed hoses will fail prematurely.
• Hoses should never be stretched tight! Hoses must be installed onto components in such a way as to allow for
movement.
IImmppoorrttaanntt:: Hoses should never be stretched tight! Hoses must be installed onto components in such a way as to
allow for movement, hhoowweevveerr they must not sag either, as this collects oil.
• Always use the correct hose fittings to prevent hose kinks at the fittings.
• Hoses must be designed to allow hose to bend on one plane only to prevent hose from twisting.
SSeeccttiioonn 66 -- RReeffrriiggeerraanntt HHoossee aanndd FFiittttiinnggss SSttaannddaarrddss
