• When a split lock washer is used, tighten the hardware so the split lock washer is fully compressed.

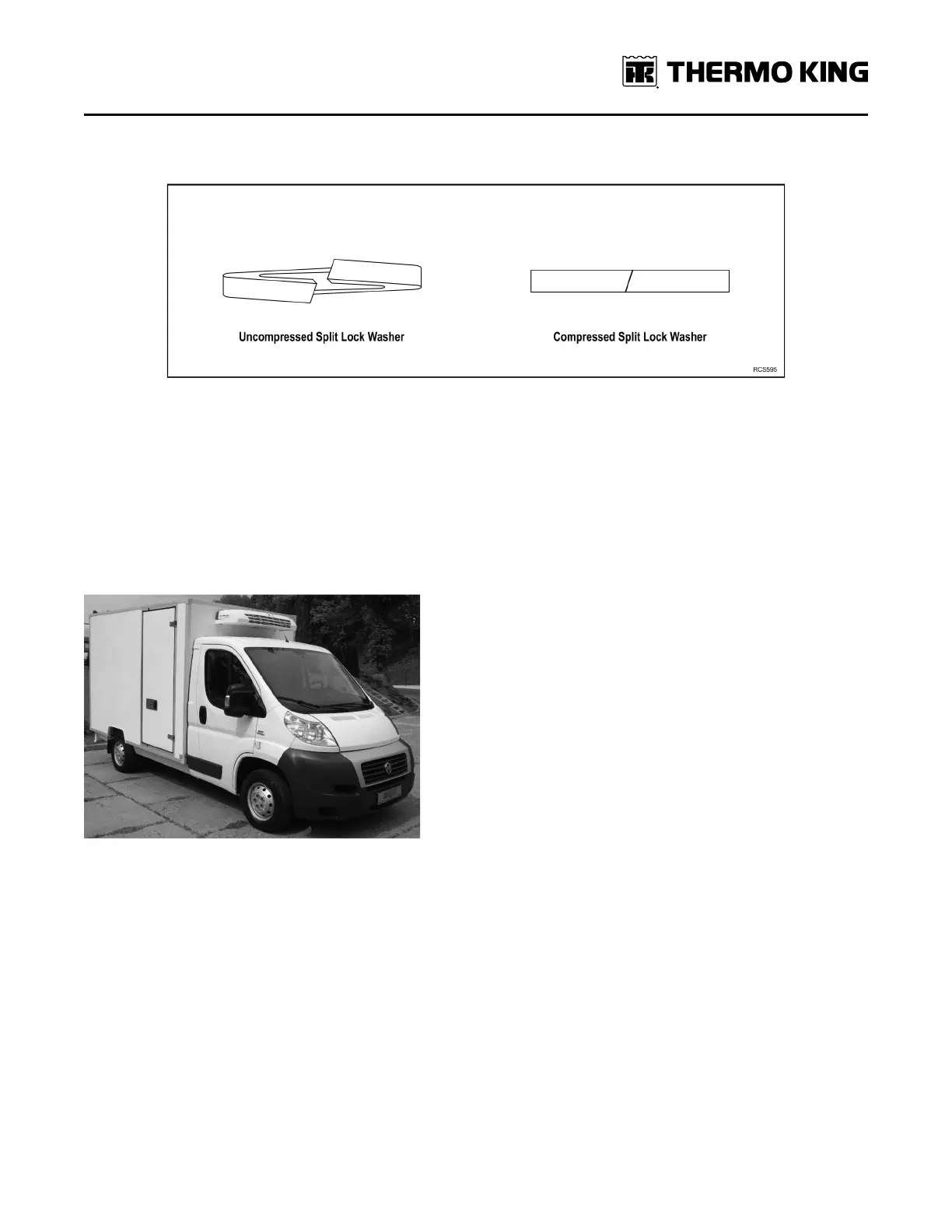

Figure 7. Tighten hardware so split lock washer is fully compressed as shown.
Vehicle Powered Truck Units
Vehicle powered truck units are available for small, medium, and large vans, or body-on-chassis vehicles. Two different
versions are available: nosemount and rooftop mounted.
Nosemounted Units
The condenser portion of a nosemounted unit is designed to be mounted onto the front of a cargo box while the remote
evaporator(s) are installed inside the cargo box. An engine driven compressor operates the unit on the road, while the
Electric Standby SmartPower option allows the unit to operate while stationary by using a standby AC power source.
Figure 8. Typical V-Series Nosemount Unit Shown.
Rooftop Mounted Units
The condenser portion of a rooftop mounted unit is mounted directly onto the roof of the van, while the remote
evaporator(s) are installed inside the cargo box. Rooftop mounted units operate the same as nosemount units.
