TK 56430-18-IP-EN
83
Configuration Files
NNOOTTIICCEE
SSyysstteemm DDaammaaggee!!
FFaaiilluurree ttoo pprrooppeerrllyy llooaadd tthhee ccoorrrreecctt ccoonnffiigguurraattiioonn ffiilleess wwiitthh tthhee aaddddiittiioonn ooff tthhee eelleeccttrriicc hheeaatt ooppttiioonn wwiillll rreessuulltt iinn
ddeeccrreeaasseedd ppeerrffoorrmmaannccee aanndd ppoossssiibbllee ddaammaaggee ttoo tthhee ssyysstteemm..
Every Thermo King Vehicle powered system requires a unit specific configuration file to be loaded onto the DSR
controller either at the factory or at the installing dealer depending on which options are being added. The
configuration file must be loaded using WinTrac 5.7 or newer, a 204-1126 DSR interconnect cable, and a 42-575 USB to
serial adapter.
IImmppoorrttaanntt:: Any unit getting the coolant heat / electric heat option will need a new configuration file loaded by the
installing dealer.
The configuration files can be found on TSA Info Central using the following path: Home > Software Downloads > Truck
and Trailer > Microprocessors > Truck Microprocessor Updates > Vehicle Powered.

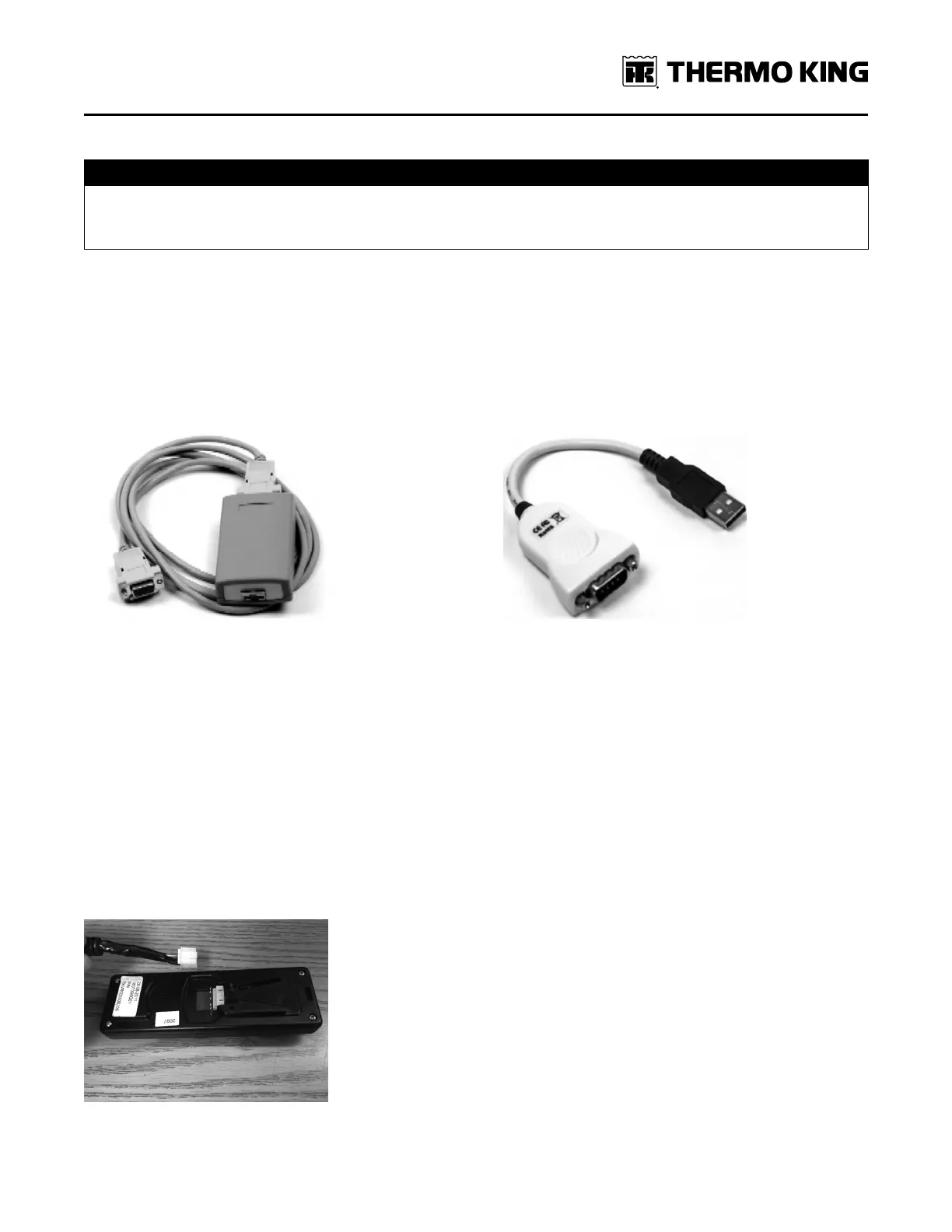

204-1126 DSR Interconnect Cable
42-575 USB to Serial Adapter Shown.
Flash Loading Configuration Files
1. Verify the unit’s main power wire (02) and BAT wires are fused and connected to the positive lug on the vehicle’s
battery. (Reference chapter 7 of this manual.)
2. Verify the unit’s main ground (CHA) is connected to the negative lug on the vehicle’s battery. (Reference chapter 7 of
this manual.)
3. Verify that the unit’s ignition wire (01 or ACC) is fused and connected to a 12 Vdc ignition source on the truck that is
only powered when the vehicle’s ignition is on. (Reference chapter 7 of this manual.)
4. Turn the power on to the vehicle’s ignition.
5. Disconnect the harness from the back of the in-cab controller (HMI).
Figure 73. Harness shown disconnected from in-cab controller (HMI)
6. Connect the in-cab controller (HMI) harness to the box on the 204-1126 DSR interconnect cable.
SSeeccttiioonn 99 -- CCoonnffiigguurriinngg SSooffttwwaarree aanndd CCoonnttrroolllleerr PPrroocceedduurreess
