TK 56430-18-IP-EN

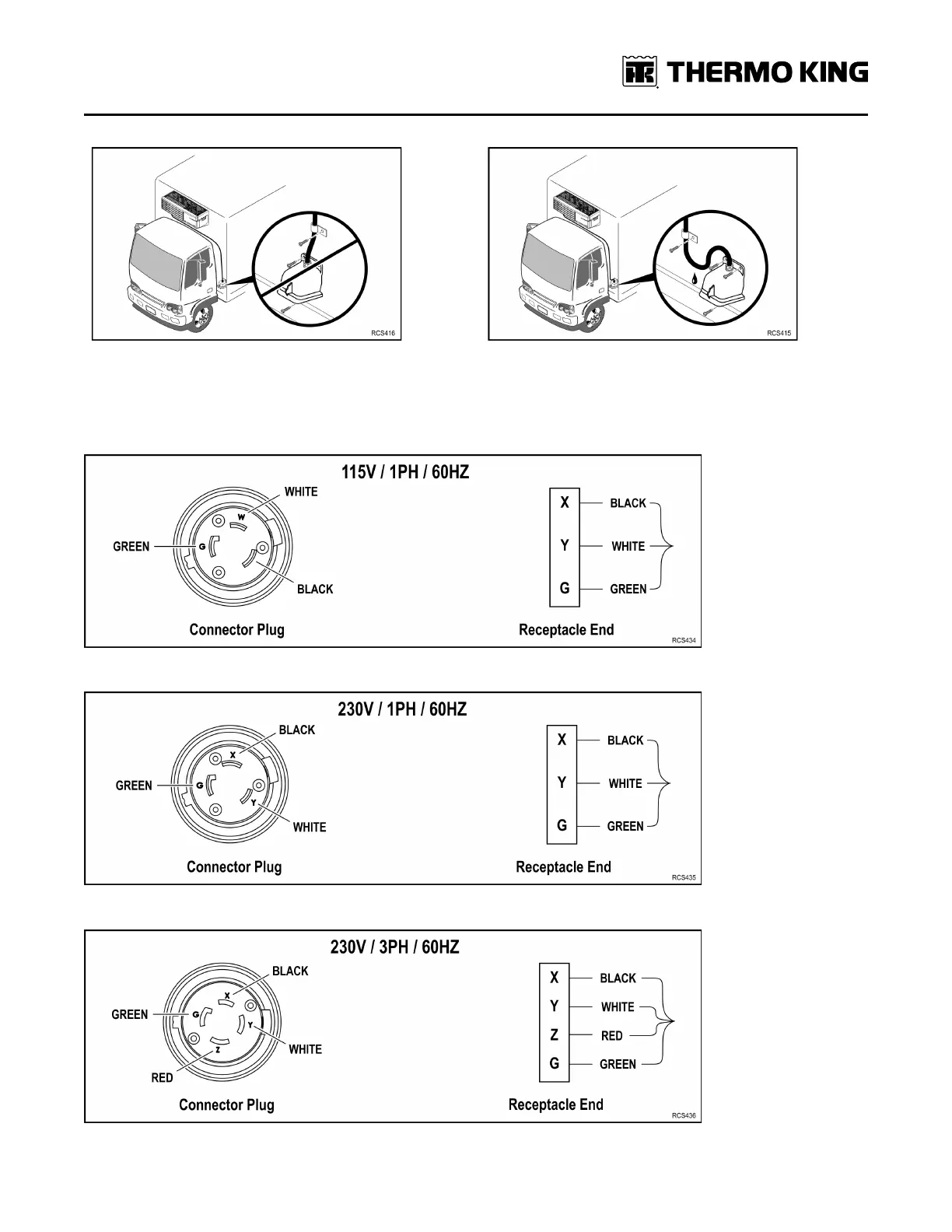

INCORRECT - No Drip Loop CORRECT - With Drip Loop

Standby Power Cable Wiring Connections

Figure 64. 115V / 1PH / 60HZ Wiring Connections.

Figure 65. 230V / 1PH / 60HZ Wiring Connections.

Figure 66. 230V / 3PH / 60HZ Wiring Connections.

SSeeccttiioonn 77 -- EElleeccttrriiccaall SSttaannddaarrddss
