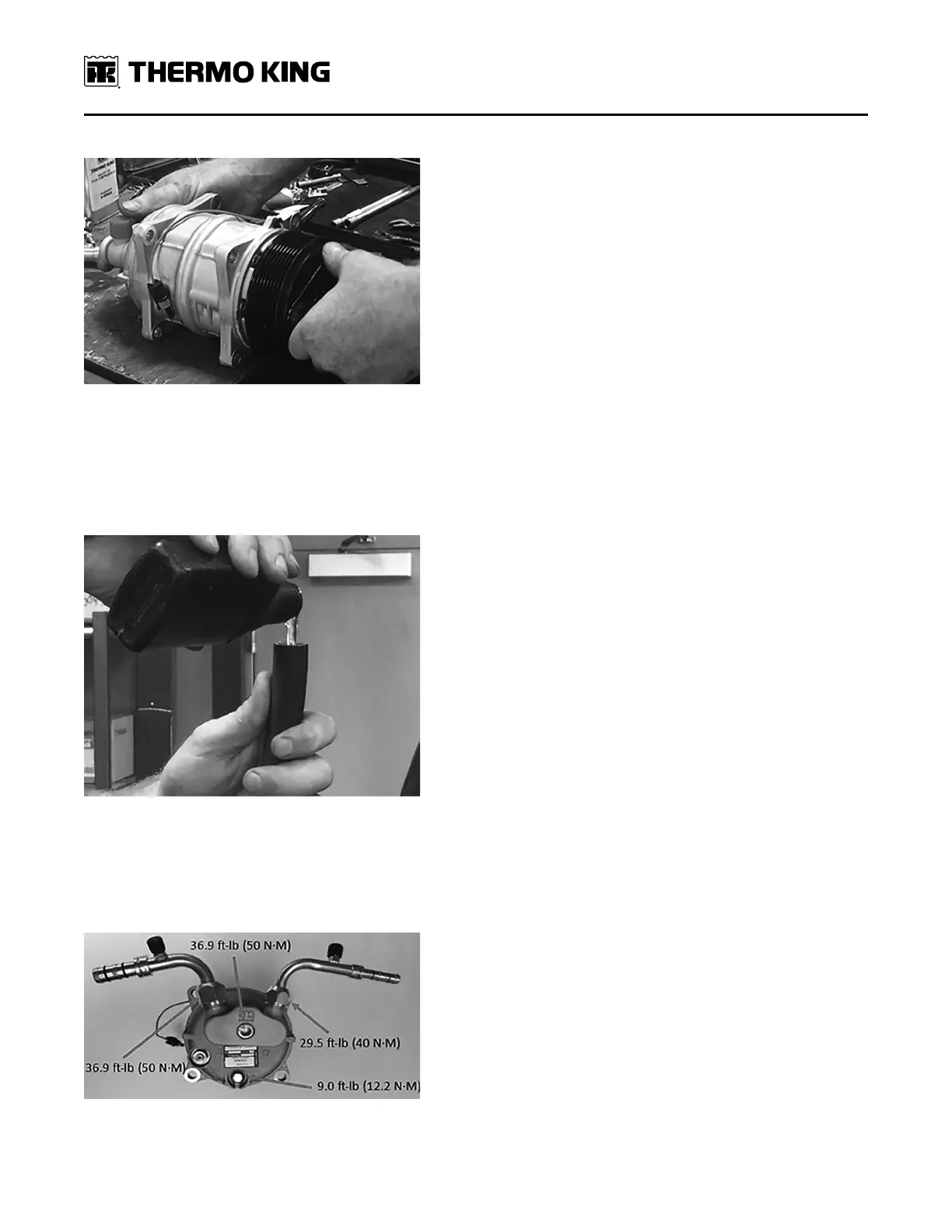

Figure 24. Rotate the compressor by hand.
12. Look up the oil charging quantities for the specific model being installed in the unit’s Installation Manual (available
on Thermo King Info Central).
13. Pour the correct amount of oil into the suction line where it connects to the vehicle driven compressor.
NNoottee:: It is easier to add the oil before attaching the suction line fitting.
Figure 25. Add oil into suction line.
Torque Specifications
When connecting the tube-O style fittings to the compressor manifold, the following torques are required. Failure to
properly torque the fitting connections can result in leaks or damage to the aluminum manifolds.
Figure 26. Required torque specifications.
