TK 56430-18-IP-EN
73

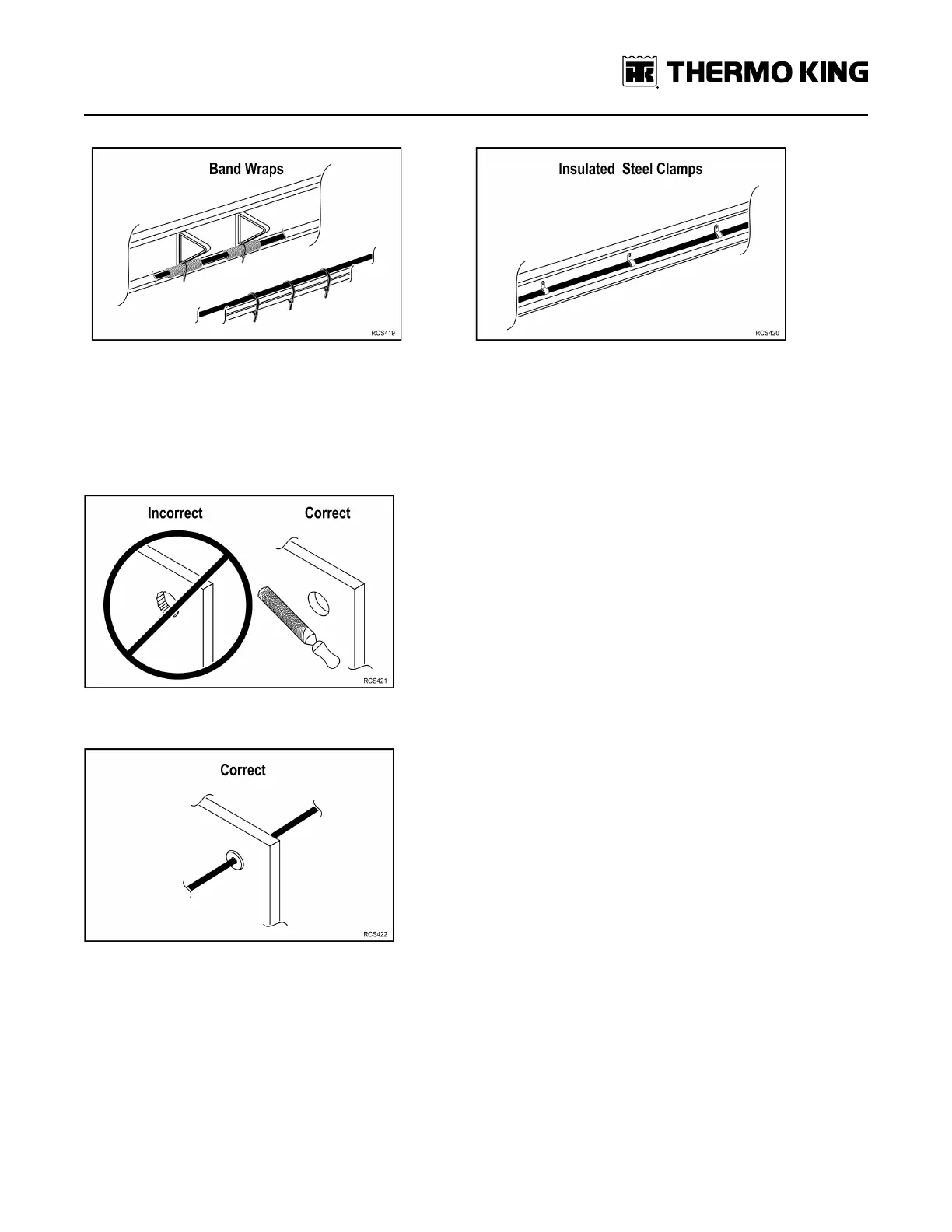

Electrical harnesses should be secured to existing frame mounts or
to vehicle’s harnesses with band wraps as shown.
Electrical harnesses should be secured to vehicle’s frame with insulated
clamps as shown.
Routing Harnesses through Metal Holes
Electrical wires routed through metal holes must be protected from damage and to avoid electrical shorts.
Figure 67. All burrs and sharp edges must also be removed from all holes drilled in metal.
Figure 68. Rubber grommets (installer supplied) must be used to provide protection to electrical wires running
through metal holes.
SSeeccttiioonn 77 -- EElleeccttrriiccaall SSttaannddaarrddss
