Thermo King VM-405 PBBD2 - Evaporator Installation with Pre-Installed Support Plates

32
TK 56430-18-IP-EN

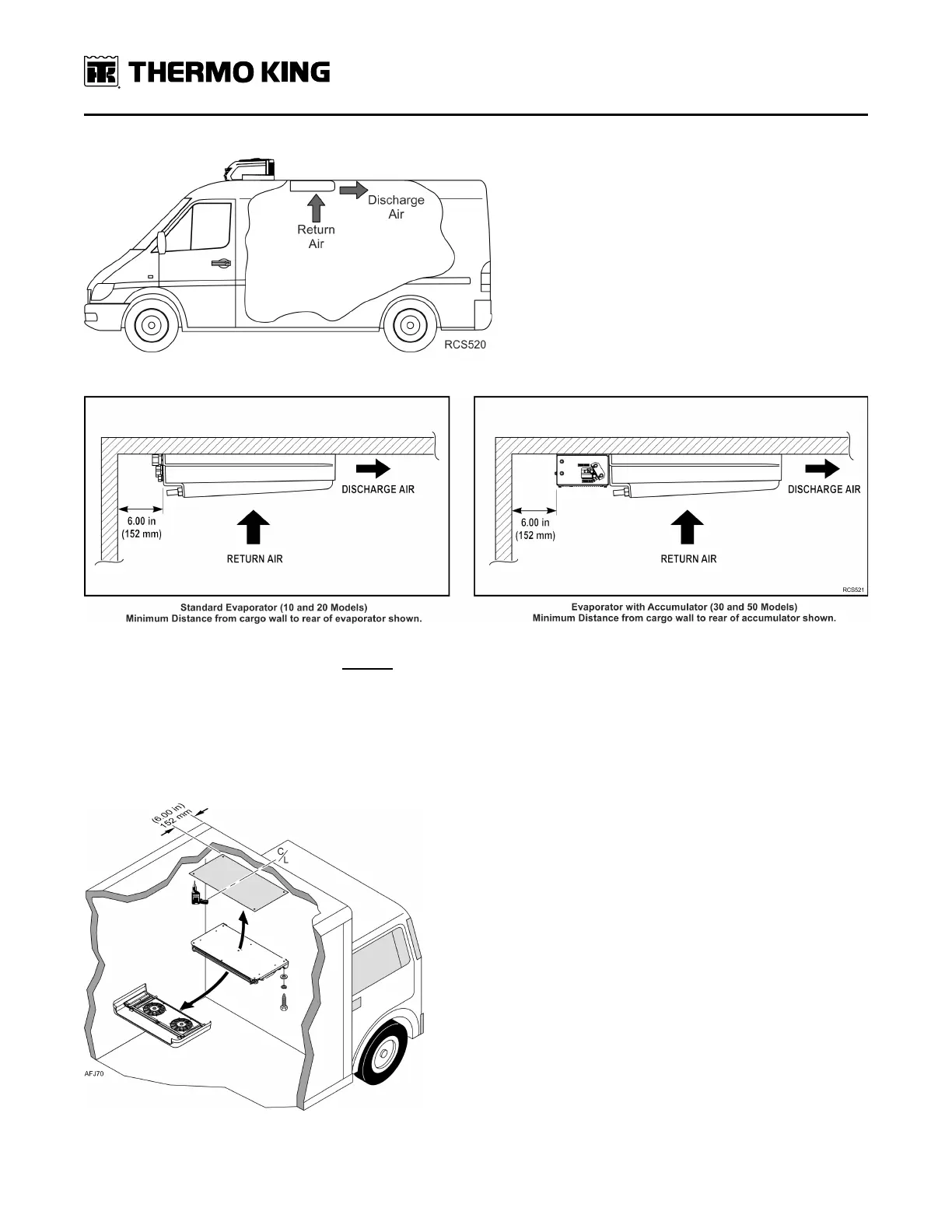

Figure 15. Evaporator return and discharge airflow shown.
Figure 16. Distance shown required to allow for refrigerant and drain hose connections.
Evaporator Installation with Pre-Installed Support Plates
Thermo King recommends installing a support plate with mounting studs or threaded inserts (installer supplied) to the
truck’s interior roof structure to safely support the weight of the evaporator(s). The plate should be installed prior to
insulating and finishing the cargo area. The plate should also position the evaporator the required distance from the
front bulkhead wall to allow for refrigerant and drain hose connection.
1. Remove the evaporator cover and install the evaporator directly to the support plate and tighten hardware securely.
Figure 17. Cargo box shown with pre-installed evaporator support plate.
SSeeccttiioonn 44 -- UUnniitt IInnssttaallllaattiioonn SSttaannddaarrddss aanndd PPrroocceedduurreess
