Parallel Crimp Connectors with Heat Shrink Tubing

IImmppoorrttaanntt:: All parallel crimp connectors must be sized for the correct gauge wires.

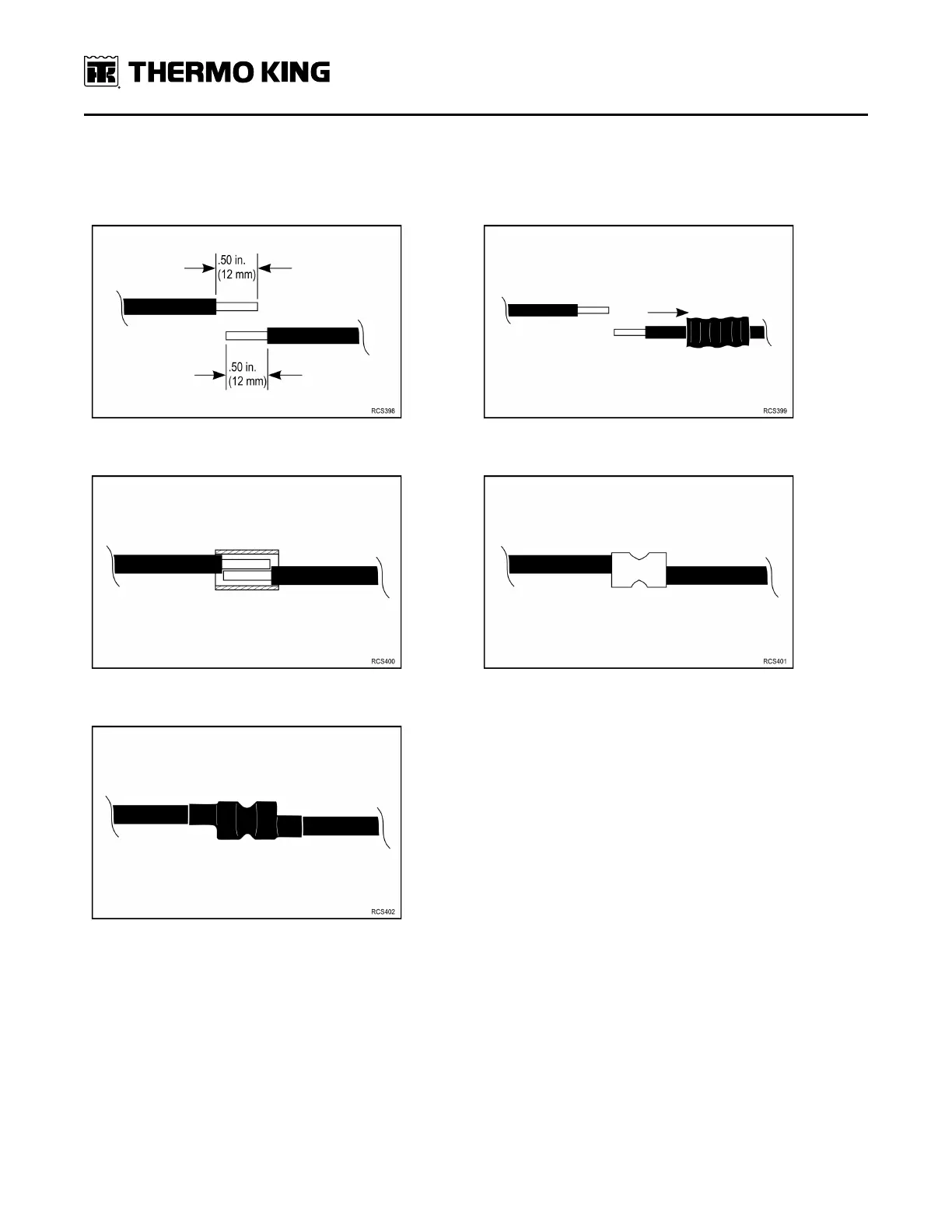

Always follow these procedures when making a parallel crimp connection:

1. Strip both wires .50 in. (12 mm). 2. Slide shrink tubing onto wire away from joint.

3. Position wires side-by-side inside crimp. 4. Crimp securely using correct crimper tool.

5. Slide heat shrink tubing over joint and apply heat.
