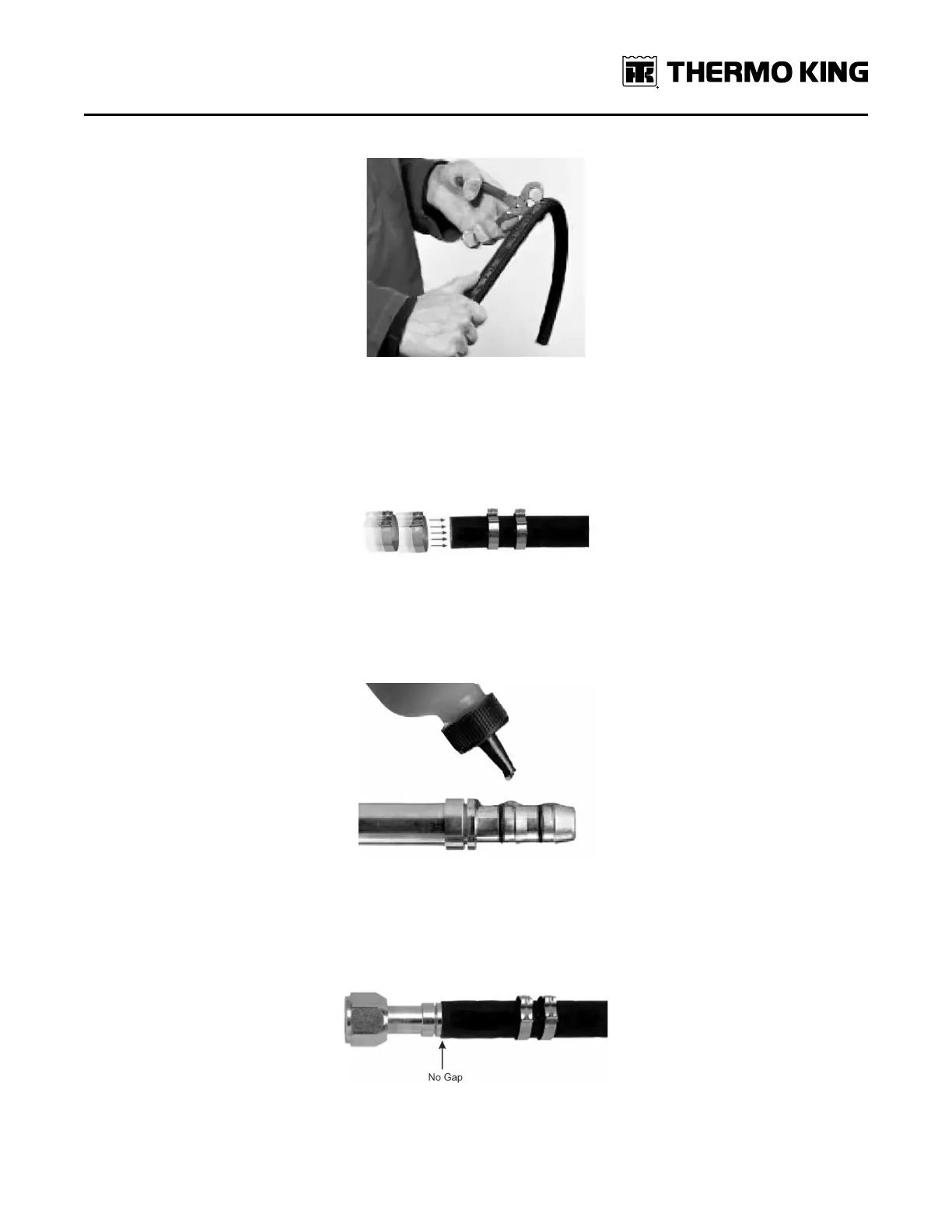

Figure 54. Cut the hose with an appropriate cutting tool.
SSlliipp oonn TTwwoo CCllaammppss
2. Install two proper-size clips onto the cut end of the hose. Orientation of the clips does not affect the performance of
the connection. However for ease of assembly, both clips should have the same orientation.
IImmppoorrttaanntt:: Failure to slide the clips over the hose at this time will require the clips to be stretched over the hose or
fitting later. This may permanently damage the clips. Clips cannot be reused.
Figure 55. Slide on the clamps.
OOiill tthhee NNiippppllee
3. Lubricate the nipple and both O-Rings with a generous amount of POE or PVE oil (depending on the application).
This MUST be done to lower the force of nipple insertion.
Figure 56. Apply oil to the nipple and both O-Rings.
4. Insert the nipple into the hose. To verify that the nipple is fully inserted, check to confirm there is no gap between
the cut end of the hose and the shoulder on the nipple. Care should be taken to avoid kinking or other damage to the
hose during nipple insertion.
NNoottee:: Be sure to wipe excess oil from the nipple and hose.
Figure 57. Hose shown fully inserted onto nipple with no gap.
