78
TK 56430-18-IP-EN

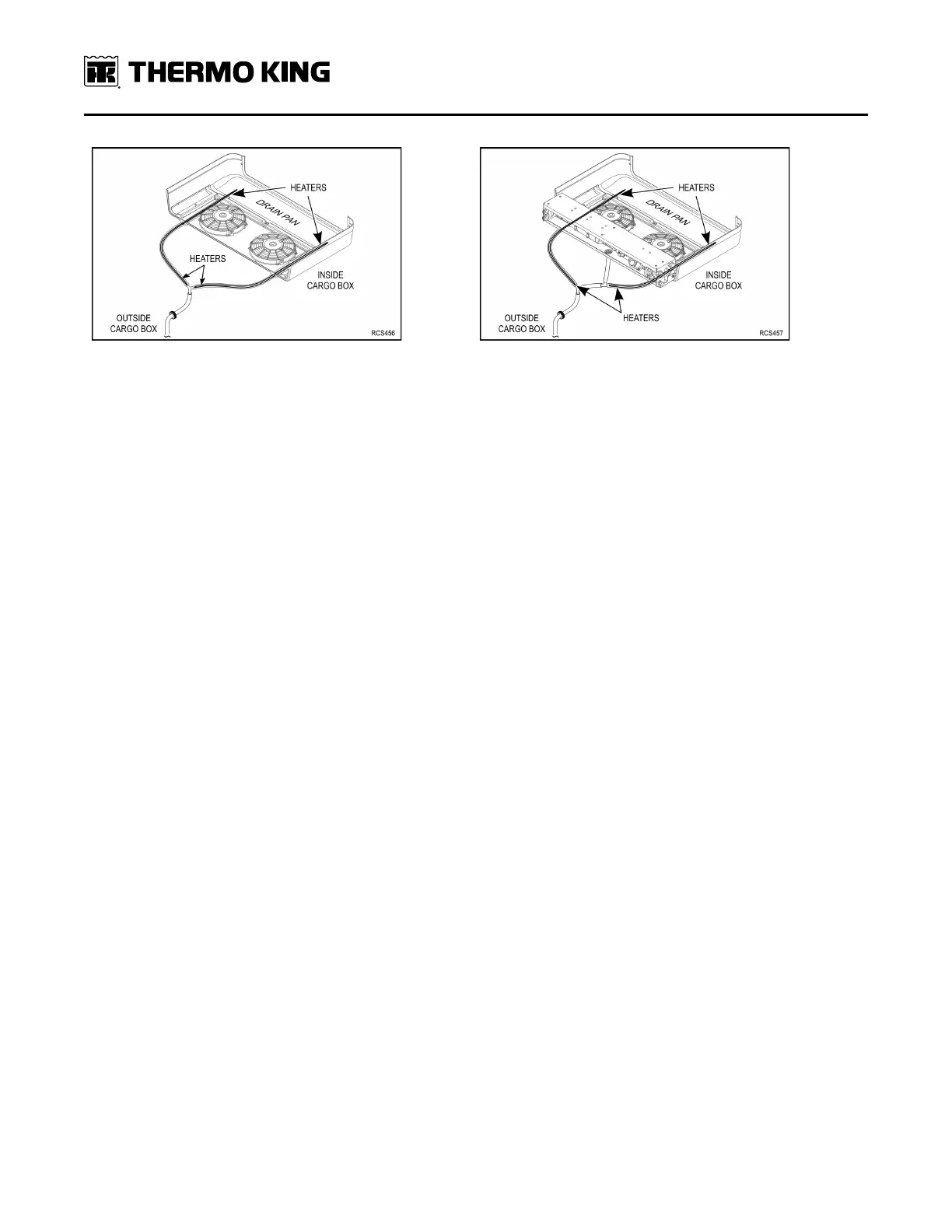

Heater wires must extend into the drain pan and inserted into each
drain hose as far as they will go.
ES320 MAX 30 / 50, V520 RT and nosemounted SPECTRUM units ONLY:
All three drain hoses must be connected together into a single hose
and immediately exit the cargo box. Heater wires must extend into the
drain pan and inserted into each drain hose as far as they will go.
SSeeccttiioonn 88 -- EEvvaappoorraattoorr DDrraaiinn HHoossee SSttaannddaarrddss
