Removal (cont’d)

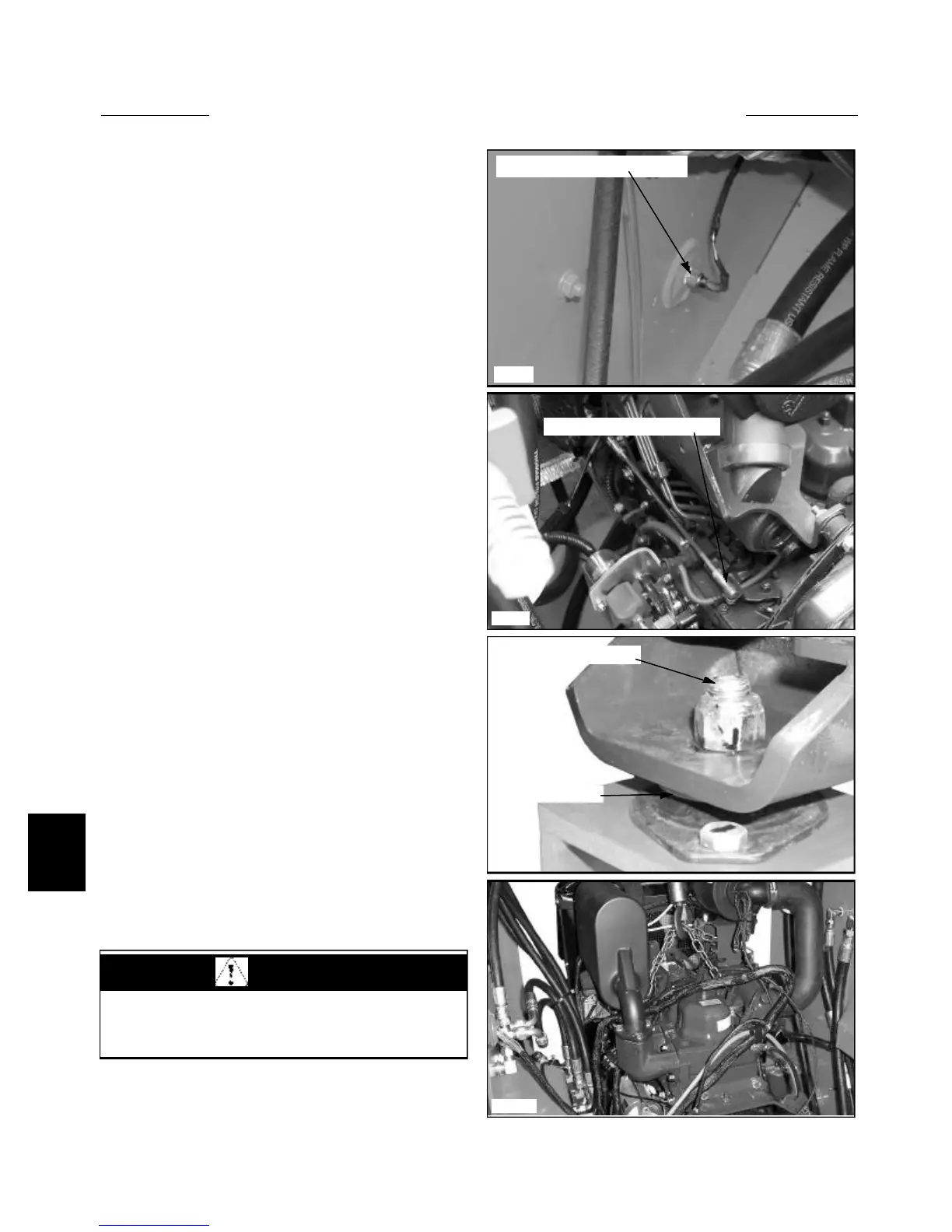

17 Disconnect the hydraulic oil temperature sender
located on the left hand oil tank, inside the engine com-
partment. (fig. C3636)
7-18
C3636
C3639
C3638
C3637
Engine mounting bolt
Engine isolator
Disconnect throttle linkage
18 Disconnect the throttle linkage. (fig. C3637)
20 Using a suitable lift point, raise the engine slightly
and pull rearward slowly. (fig. C3639) Check frequently
for wires or hoses that may still be connected or tied to
the engine and frame. Remove the engine.
19 Remove the 4 bolts retaining the engine to it’s rub-
ber composite mounting isolators. (fig. C3638)
Hydraulic temperature sender
ENGINE REPLACEMENT 7.3
CAUTION
Use a chain size of 3/8’’ grade 40 minimum when
replacing the engine
