Removal (cont’d)
13 Disconnect the ground straps (cables) mounted from
the engine to the loader frame.
7-17
C3635
C3633
C3634

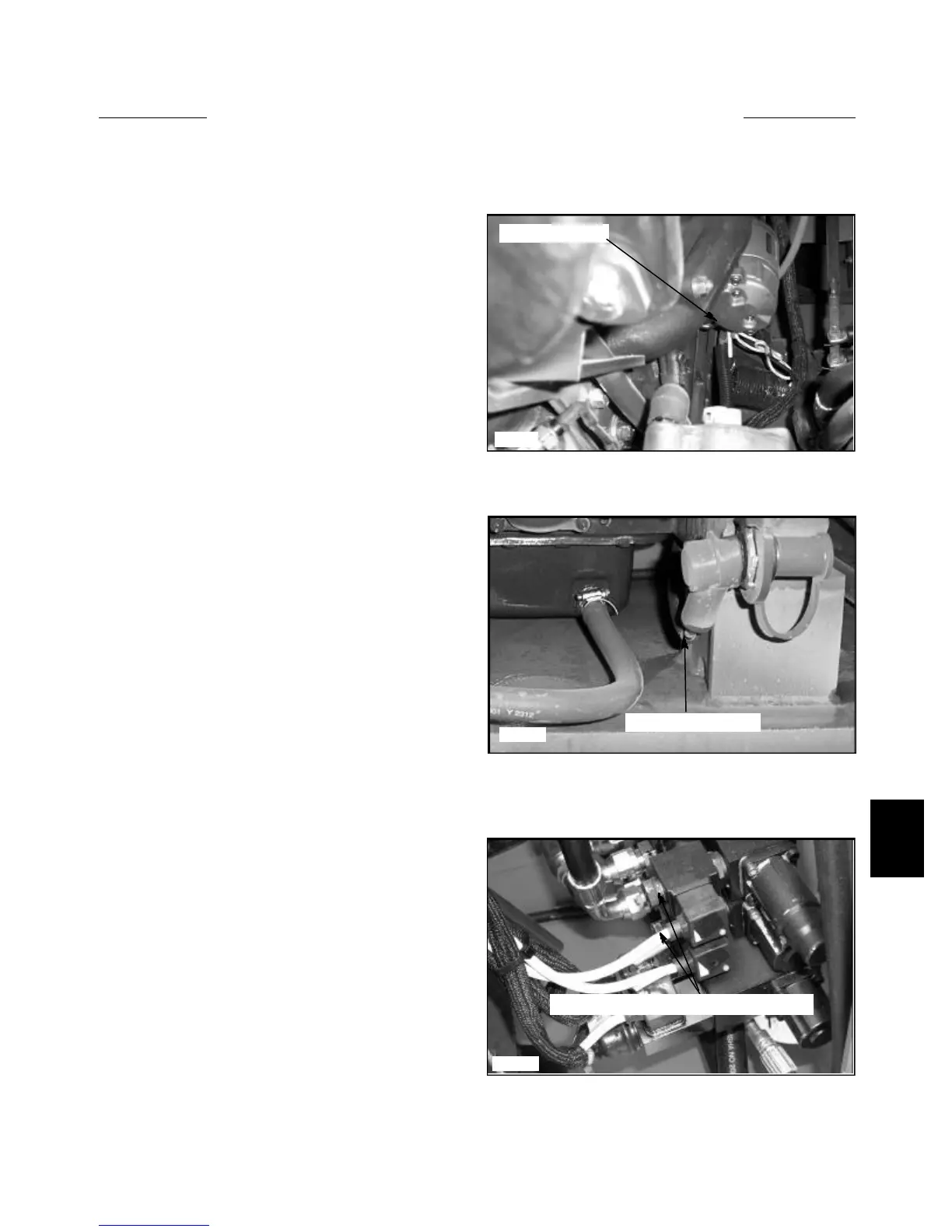

15 Disconnect the electrical cable from the boosting lug
terminal. (fig. C3633)
16 Disconnect the hydraulic control valve electrical con-
nections. (fig. C3635) Tag the connections for location to
prevent mixing up upon engine replacement.
14 Disconnect the engine starter cable coming from the
positive terminal of the battery. (fig. C3634)
Starter terminals
Disconnect valve lock / aux connections
ENGINE REPLACEMENT 7.3
Disconnect Cable
To Next Page
