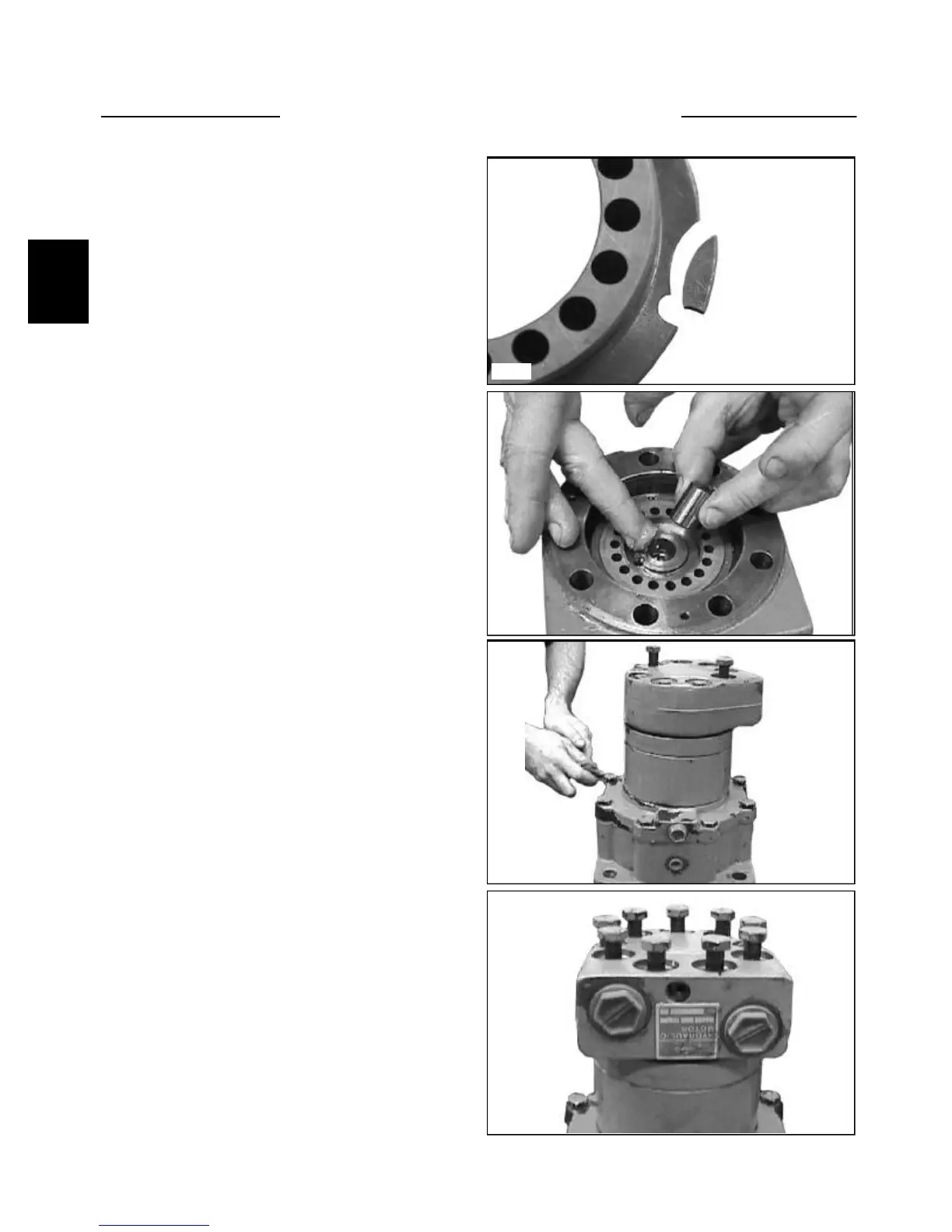

17 With a balance plate incorrectly installed other prob-
lems such as a break in the valve housing may occur and
damage other hydraulic components (fig. C3548).
DRIVE MOTOR 2.11
19 Since the motor has been disassembled, the guide
pins will locate ports in the offset position. To align with
the drain and brake ports, turn the section until correct
port alignment is made (fig. C3550).
18 With the balance plate in the proper position and
tapped down to seat, apply some vaseline or grease to
prevent the spacer from falling out when installed onto
the motor (fig. C3549).
20 With ports all aligned, install balance of screws and
tighten in a cross pattern, then final torque all bolts to 81
ft/lbs (fig. C3551).
