THOMPSON PUMP J1939 - Sensor Inputs

- 18 -

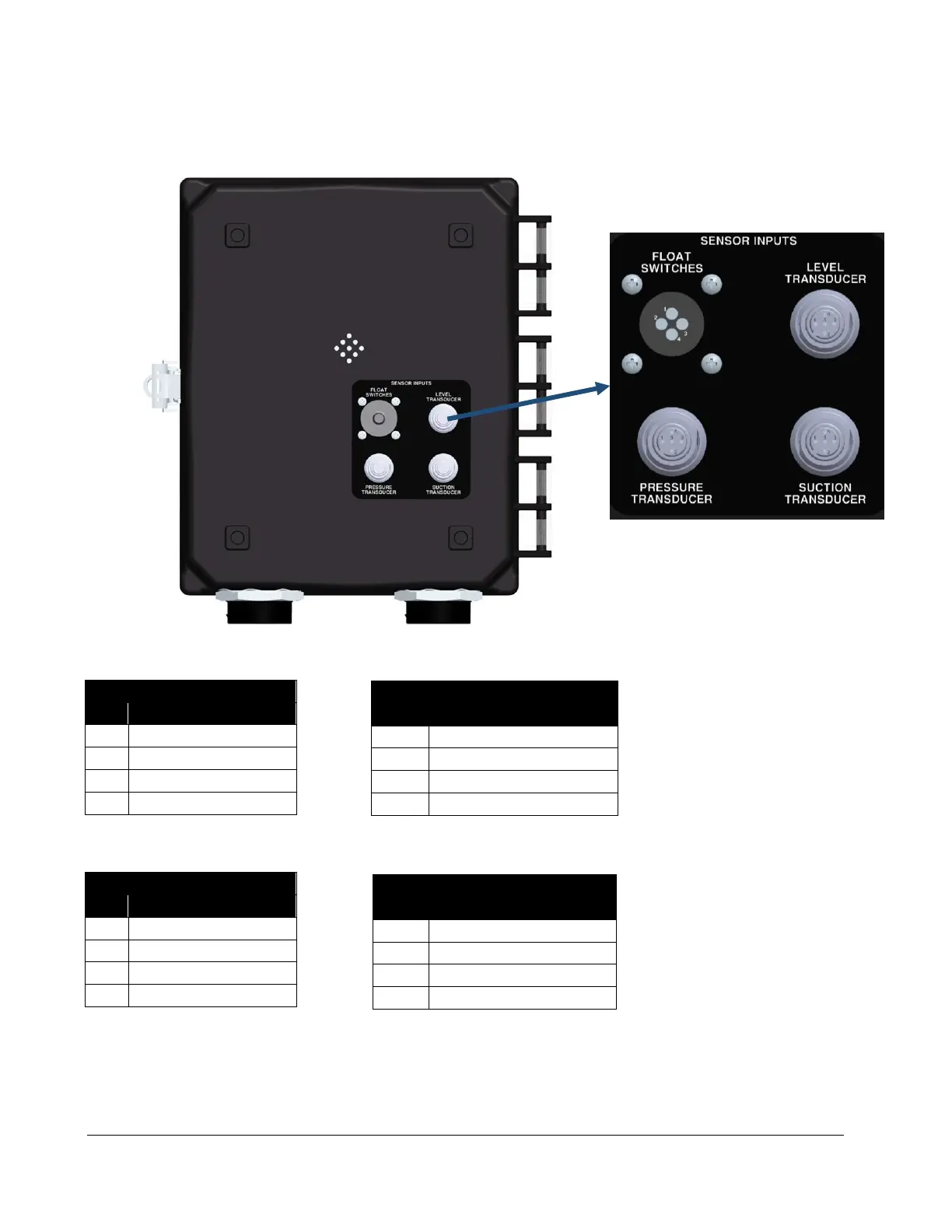

Sensor Inputs
4-Pin Float Connector
Pin
Function
1
High Float Input
2
Low Float Input
3
High Float Common
4
Low Float Common
4-Pin Level Transducer
Pin
Function
1
4-20 mA Signal
2
Battery Positive
3
Battery Negative
4
N/A
4-Pin Pressure Transducer
Pin
Function
1
4-20 mA Signal
2
Battery Positive
3
Battery Negative
4
N/A
4-Pin Suction Transducer
Pin
Function
1
4-20 mA Signal
2
Battery Positive
3
Battery Negative
4
N/A
