LINEAR THROTTLE
With linear throttle, the minimum and maximum engine speeds and the corresponding minimum and
maximum level or pressures are selected. Engine speed adjusts according to the linear relationship as

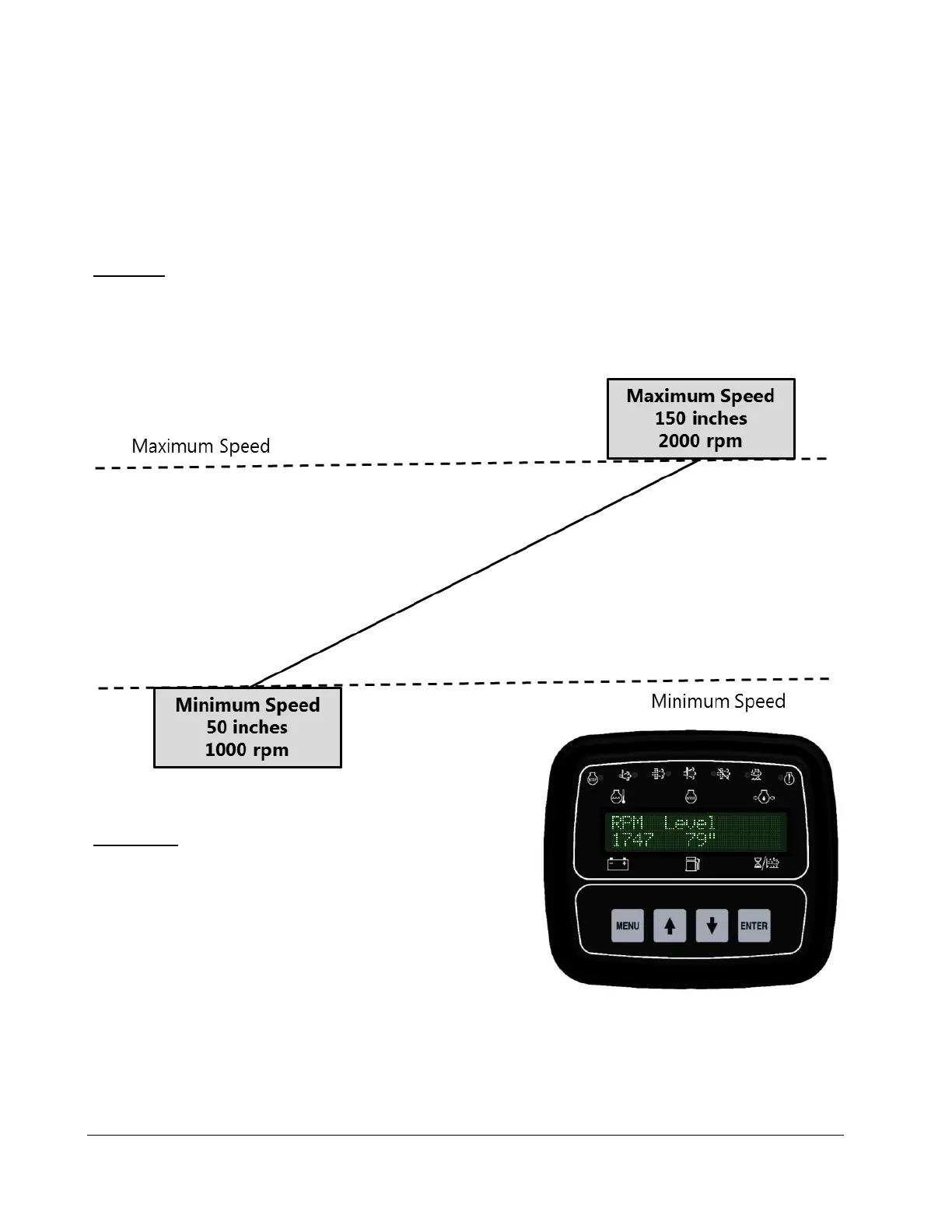

shown below.
Example: Level Transducer (0 to 200-inch range)
Minimum Speed = 1000 rpm
Maximum Speed = 2000 rpm
Minimum Speed Level = 50 inches
Maximum Speed Level = 150 inches
Operation
If level = 50 inches, engine speed = 1000 rpm
If level = 100 inches, engine speed = 1500 rpm
If level = 150 inches, engine speed = 2000 rpm
Linear throttle can be combined with any of the automatic engine start/stop modes. If any automatic
speeds settings are not required (such as warm up), set the time delay to 0:00 seconds for that
parameter.
