The TSC 800 RS422 communication port allows multiple TSC 800 controllers to be directly
interconnected together to form a single network system. Up to 10 TSC 800 controllers may be
interconnected to a single CIM module.
NOTE:
TSC 800 controllers and MEC 20 engine-generator controllers
may be interconnected together via the same communication
network provided the maximum number of controllers and
interconnection distances are not exceeded. For additional
information, refer to associated product instruction manuals.
Each TSC 800 controller is programmed with a unique communication node address number for the
remote communication system to reference. The network system may be connected to a local PC or
to a remote PC via telephone system and CIM module. Refer to FIGURE #11 for a typical TSC 800
network system with CIM module.
G:\ENGINEER\PRODUCTS\TSC800\852623.VSD
8 conductor
Shielded Cable c/w
RJ45 connectors
CIM
Communication
Interface Module
THS
Personal
Computer
Port 2A
Port 3B
DC Power
8-35Vdc
Phone
305M
(1000ft)**
maximum
cable length
GRD
+- G
Modem
no connection
TSC 800
Transfer
Controller
#1
TSC 800
Transfer
Controller
#2
TSC 800
Transfer
Controller
#3
GRD
GRD
GRD
To additional TSC 800 controllers
(maximum 10 total per network)
**Communication cable wiring must be
suitably routed to protect it from sources of
electrical interference. Refer to installation
section for further information.

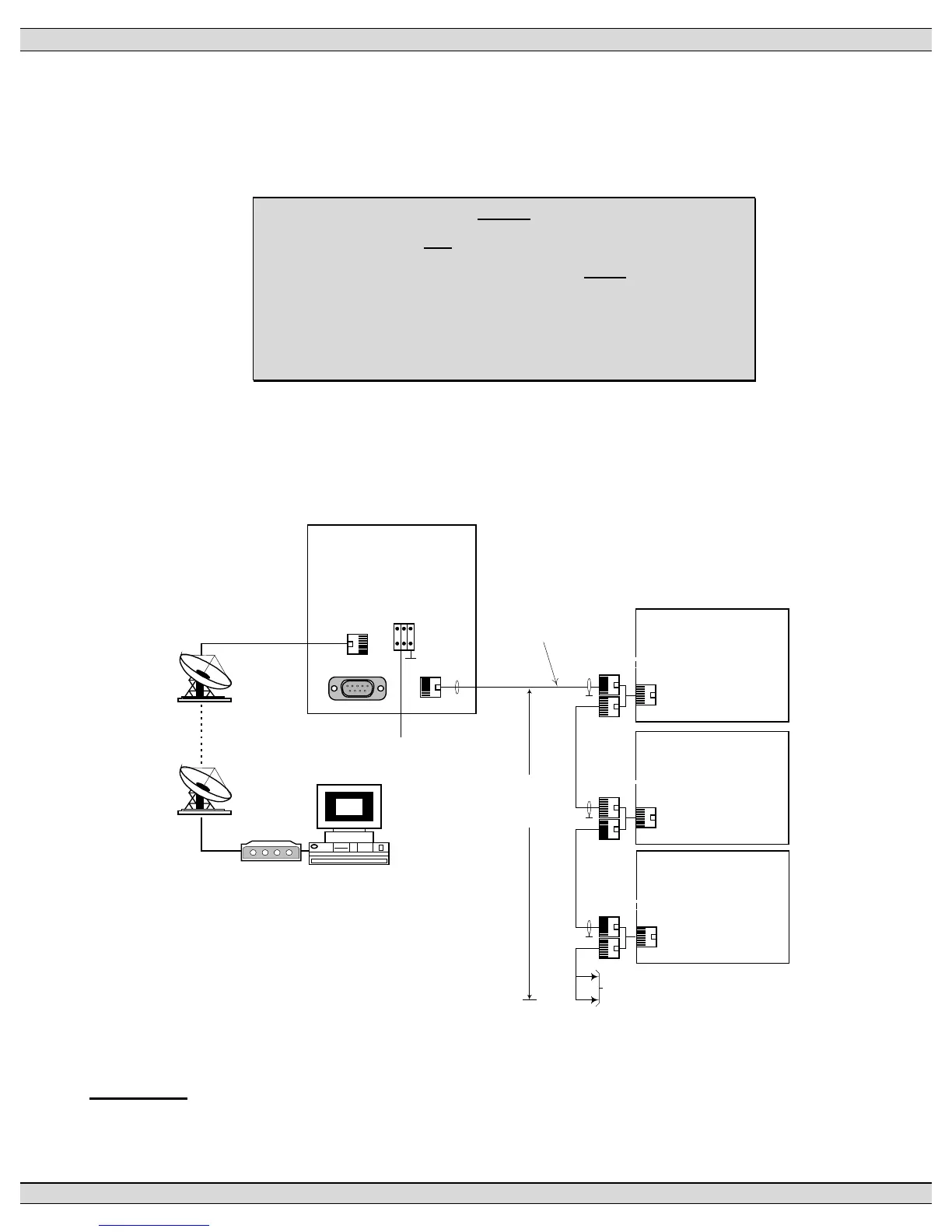

FIGURE #11 NETWORKED TSC 800 INTERCONNECTION DIAGRAM
