Thor Motor Coach CLASS A - Fuel Transfer System Operation

FUEL SYSTEM
45
4
THOR MOTOR COACH | MADE TO FIT

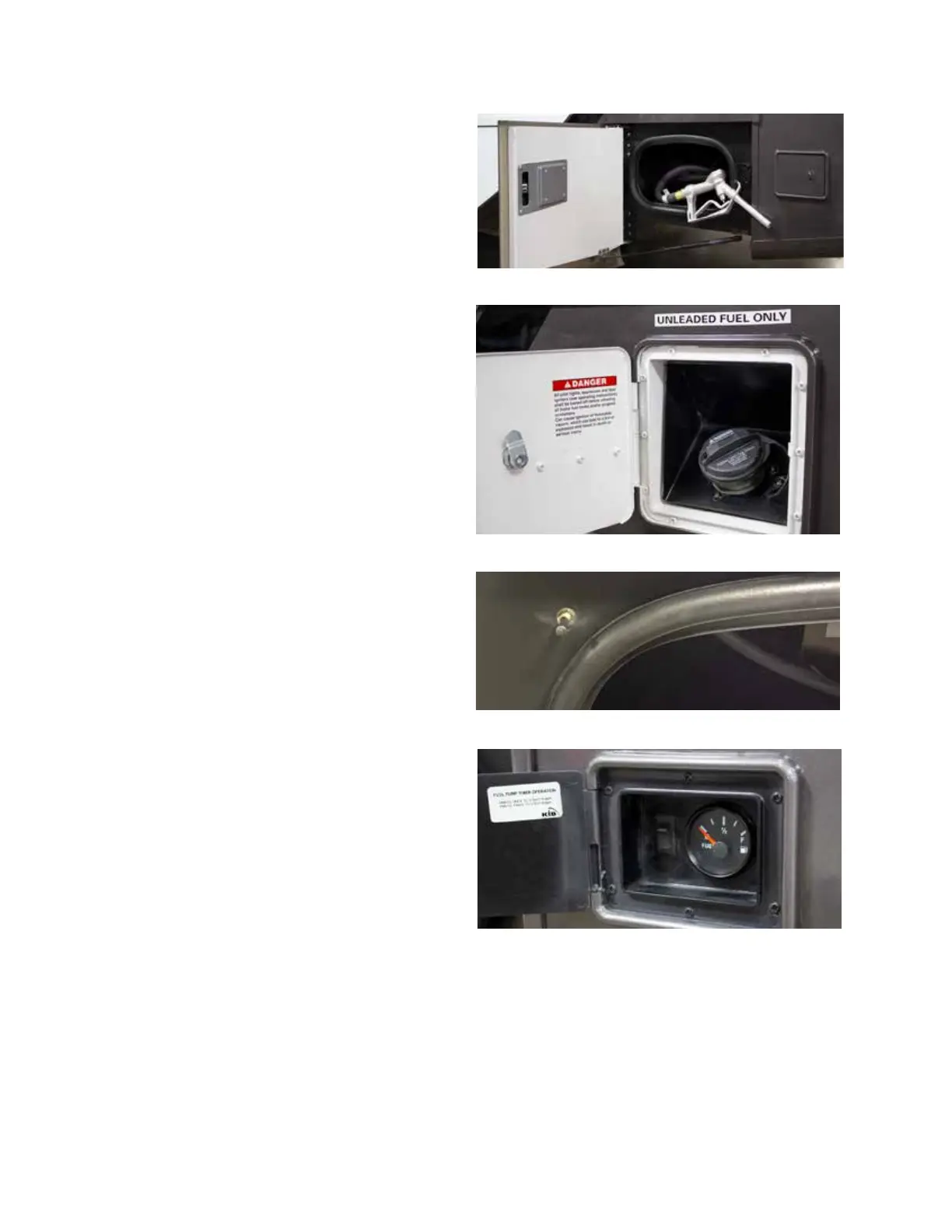

Fuel Transfer System available on Class A toy hauler motorhomes
Fuel Pump Safety Lock-out Switch
Fuel Tank Inlet for Fuel Transfer System
Fuel Pump Switch and Fuel Gauge for Fuel Transfer System
Fuel Transfer System Operation
To fill the fuel transfer system tank:
1. Remove the fuel ller cap and ll the tank with the grade
and type of fuel required by your power equipment.
2. Replace the fuel cap when fueling is complete. When
replacing the fuel ll cap, be sure it seats squarely and
turn it rmly to lock it on the ll pipe neck.
To transfer fuel to another vehicle:
IMPORTANT! THERE IS A SAFETY LOCKOUT SWITCH
INSTALLED ON THE SHORE CORD COMPARTMENT
THAT PREVENTS THE FUEL TRANSFER PUMP FROM
OPERATING IF THIS COMPARTMENT DOOR IS OPEN.
THE SHORE CORD COMPARTMENT DOOR MUST
BE CLOSED BEFORE USING THE FUEL TRANSFER
SYSTEM.
1. Ensure the fuel stored in the Fuel Transfer System is
compatible with the vehicle being fueled.
2. Ensure the master battery switch is ON.
3. Connect the ground wire from the motorhome to the
vehicle being fueled. e clip must connect to a metal
device of the vehicle being fueled, such as the frame.
4. Turn ON the fuel transfer pump switch. One Press of
the switch turns the pump ON; two presses of the switch
turns the pump OFF.
5. Uncap the fuel tank cap on the vehicle being fueled and
place the fuel nozzle into the fuel tank port.
6. Squeeze the handle on the fuel nozzle to dispense fuel.
Be careful not to overll or spill fuel on either the vehicle
or ground.
7. Release the fuel dispensing handle when fueling is
complete.
8. Replace the fuel hose and nozzle into its storage bay.
9. Turn OFF the fuel transfer pump switch by pressing
twice on the switch.
10. Unclip the ground wire and place it in the storage bay.
Emergency shut-off switch:
If the fuel dispensing nozzle becomes stuck or jammed in
the ON position, quickly turn o the fuel pump by pressing
TWICE on the pump switch.
IMPORTANT! INSPECT THE FUEL TRANSFER SYS
TEM REGULARLY FOR LEAKS, CRACKS IN HOSES,
DAMAGED FITTINGS, ETC. MAKE ALL NECESSARY
REPAIRS IMMEDIATELY. DO NOT USE THE FUEL
DISPENSING SYSTEM UNTIL NEEDED REPAIRS ARE
COMPLETE AND THE SYSTEM IS SAFE TO USE.
NOTES:
• The fuel pump switch also activates the fuel gauge
for the Fuel Transfer System’s fuel tank.
• Affix a label on or near the fueling inlet to indicate
what type of fuel is contained in the Fuel Transfer
System. Sever damage can occur if the wrong type
of fuel is dispensed into your power equipment.
