Patio Awnings

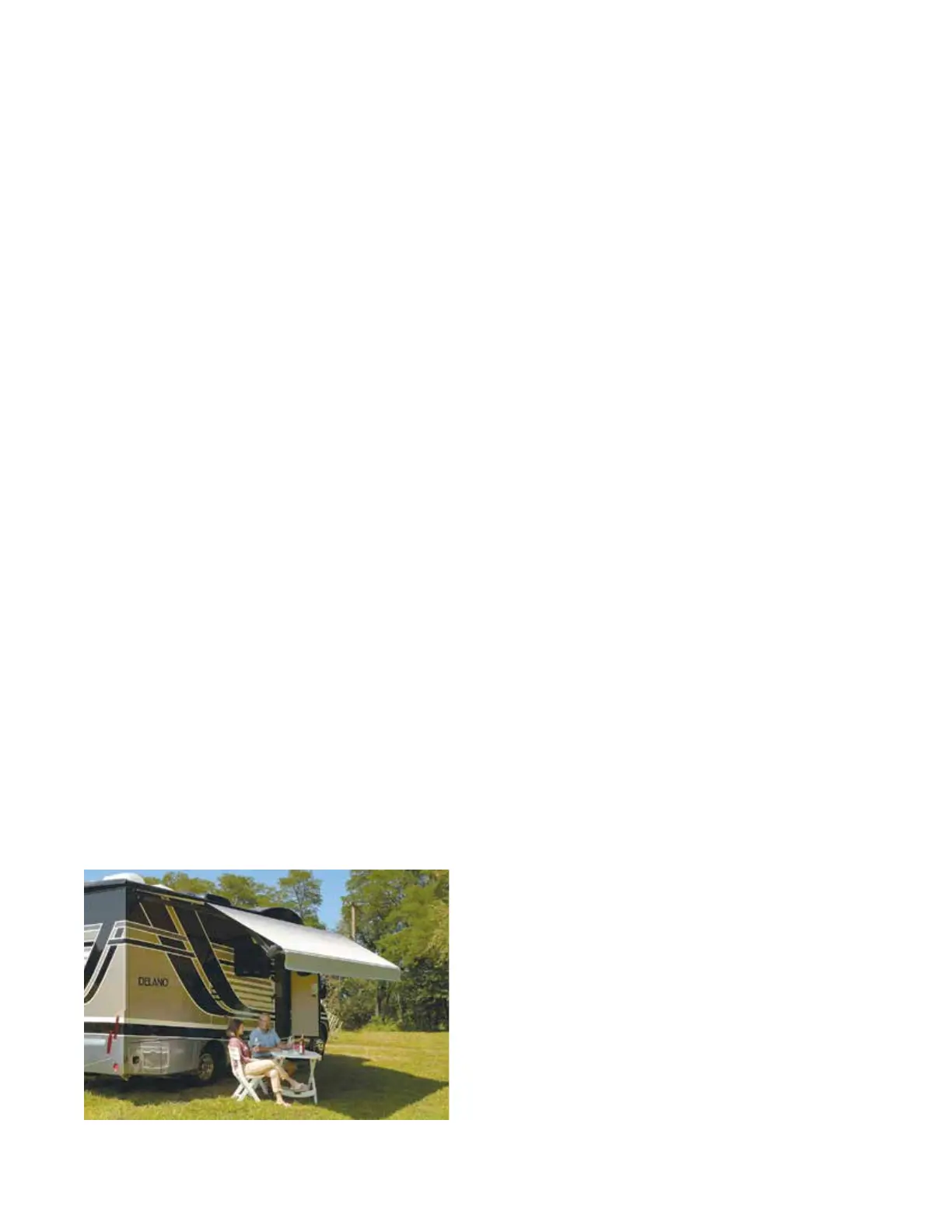

Awnings can create a pleasant outdoor space that provides
shade from the sun and semi-protection from certain weather
conditions. Most patio awnings operate from the motor-
home's 12-volt DC electrical supply. However, the awnings
installed on some Class A diesel motorhomes operate from
the 120-volt AC system.
For DC operated awnings, the master battery switch must be
ON. If the auxiliary battery(ies) are not fully charged, turn
ON the generator or plug into shore power prior to operating
the awning. For AC operated awnings, the generator or shore
power will need to be ON prior to operating the awning(s).
To extend the awning:
1. Before extending the awning, ensure there are no
obstacles in the path of operation.
2. Provide power to the awning by turning ON the master
battery switch, or operate the generator, or connect to
shore power (see reference to 12-volt DC and 120-volt
AC above).
3. Press and hold the EXTEND switch, located near the
entrance door, or on the multiplex touchscreen panel,
or remote (see note), until the awning is opened to the
desired setting.
To retract the awning:
1. Before retracting the awning, ensure there are no obsta-
cles in the path of operation.
2. Provide power to the awning by turning ON the master
battery switch, or operate the generator, or connect to
shore power.
3. Press and hold the RETRACT switch, located near the
entrance door, or on the multiplex touchscreen panel,
or remote (see note), until the awning is fully retracted.
NOTES:
•
Some awnings feature ONE TOUCH operation.
If equipped, a single press of the extend or retract
button will operate the awning.
•
For added convenience, some awnings are equipped
with a remote control. In addition, many multiplex
systems offer remote control of awnings and other
electrical systems via a smartphone or tablet app.
•
Refer to the awning manufacturer's instructions for
additional operational, maintenance, and cleaning
recommendations.
Entry Door Awnings
Select Class A diesel motorhomes are equipped with an
entry door awning. Generally, if the patio awning operates
on 120-volts AC, then the entry door awning also operates on
120-volts AC. Follow the operating procedures listed above.
Observe the same awning operational cautions when extend-
ing and retracting an entry door awning as when operating
a patio awning.
Awning Lights
e patio awning may be equipped with LED strip lighting
or other lighting types. ese lights are controlled by a switch
located near the Awning EXTEND/RETRACT switch, or on
the multiplex touchscreen panel, or on a remote-control or
Bluetooth-linked device.
Slideout Awnings
All slideouts are equipped with an awning that automatically
extends and retracts with the extension and retraction of the
slideout. ese awnings provide protection for the top of
the slideout from environmental debris (leaves and twigs),
rain, and snow. Although slideouts have weather seals, the
slideout awning adds an extra measure of protection, making
it possible to retract the slideout without rst cleaning o its
top. While traveling, the slideout awning has an auto-lock
feature that prevents wind from billowing or unwinding
the awning. When parked and it is time to deploy the room
slideout, the auto-lock feature unlocks–making manual
locking and unlocking unnecessary.
As part of your routine exterior inspection, check slideout
awning(s) for proper operation and potential damage. Refer
to the TMC Awning, Leveling, and Slideout System Guide
for care and maintenance information.
