Thor Motor Coach CLASS A - Audio;Video Distribution

INTERIOR FEATURES AND COMPONENTS
90
9
CUSTOMER CARE | 877.855.2867
Audio/Video Distribution
For most applications, TMC uses CAT6 cabling as a means
of video distribution within the motorhome. Replacing
HDMI cabling, the CAT6 substitution reduces line losses
and improves signal strength, creating improved audio and
picture quality.
However, this cabling requires the use of a HDMI-to-CAT6
transmitter (splitter) at the video source and a CAT6-to-
HDMI receiver at the TV input. Short CAT6 and HDMI
cables are used to connect the transmitter and receiver devices

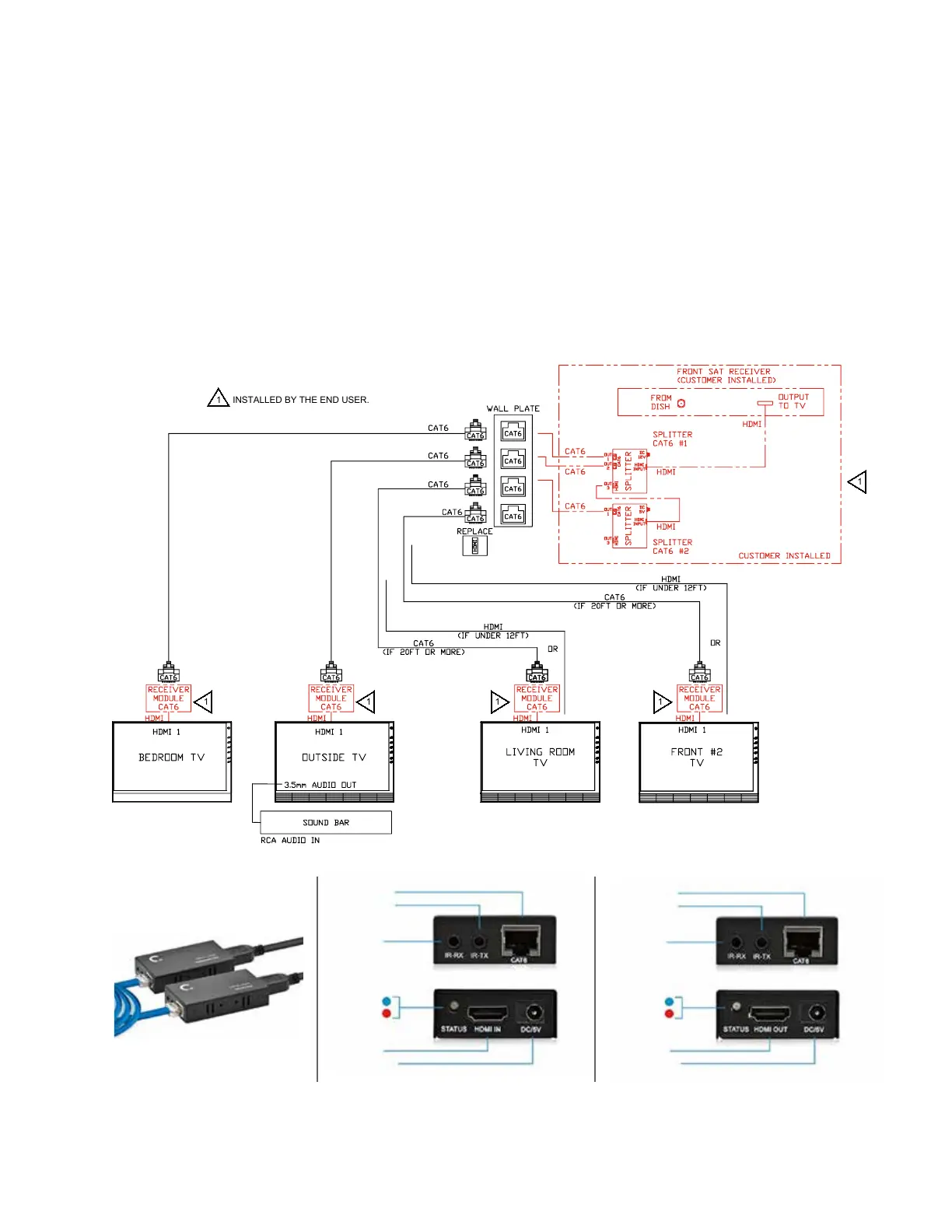

to the A/V source and TV (see diagram below). Select TMC
motorhomes are supplied with these devices, but typically,
they are owner-sourced.
HDMI-to-CAT6 transmitter/receiver pairs, along with
connecting cables, are available through Amazon and other
retailers.
NOTE: There are numerous commercially available
video streaming devices and A/V accessories which may
more readily meet your entertainment needs. Check with
an A/V retailer for device options and connection details.
1
INSTALLED BY THE END USER.
1
1
1
1
1
Typical Transmitter/Receiver Pair
Typical Transmitter Input/Output Ports
Ethernet Input
IR Transmitter
IR Receiver
Power ON
Connected
HDMI Input
5V Power Input
Left
End
Right
End
Typical Receiver Input/Output Ports
Ethernet Input
IR Transmitter
IR Receiver
Power ON
Connected
HDMI Input
5V Power Input
Left
End
Right
End
