2 Camera Basics
35
Multi AOI
The Multi AOI function allows defining more than one AOI in an image and transferring these AOIs all at the same
time. Only DCC1240x models support this feature. In the Multi AOI mode you can define two or four AOIs in one
image and transfer them simultaneously. The AOIs are positioned side by side or one below the other, and share
the same X or Y axis.

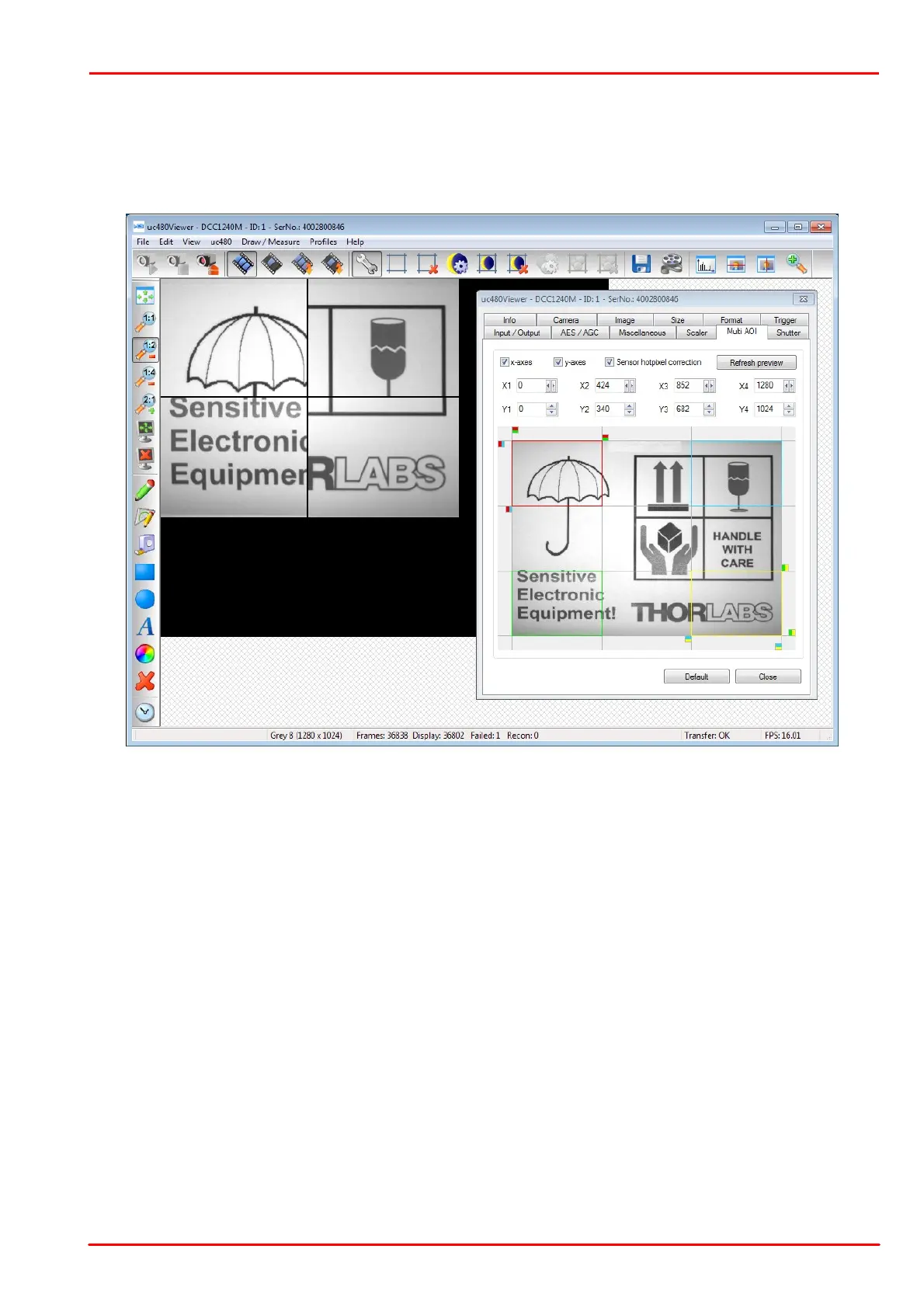

uc480 Demo - Multi AOI on the DCC1240C
