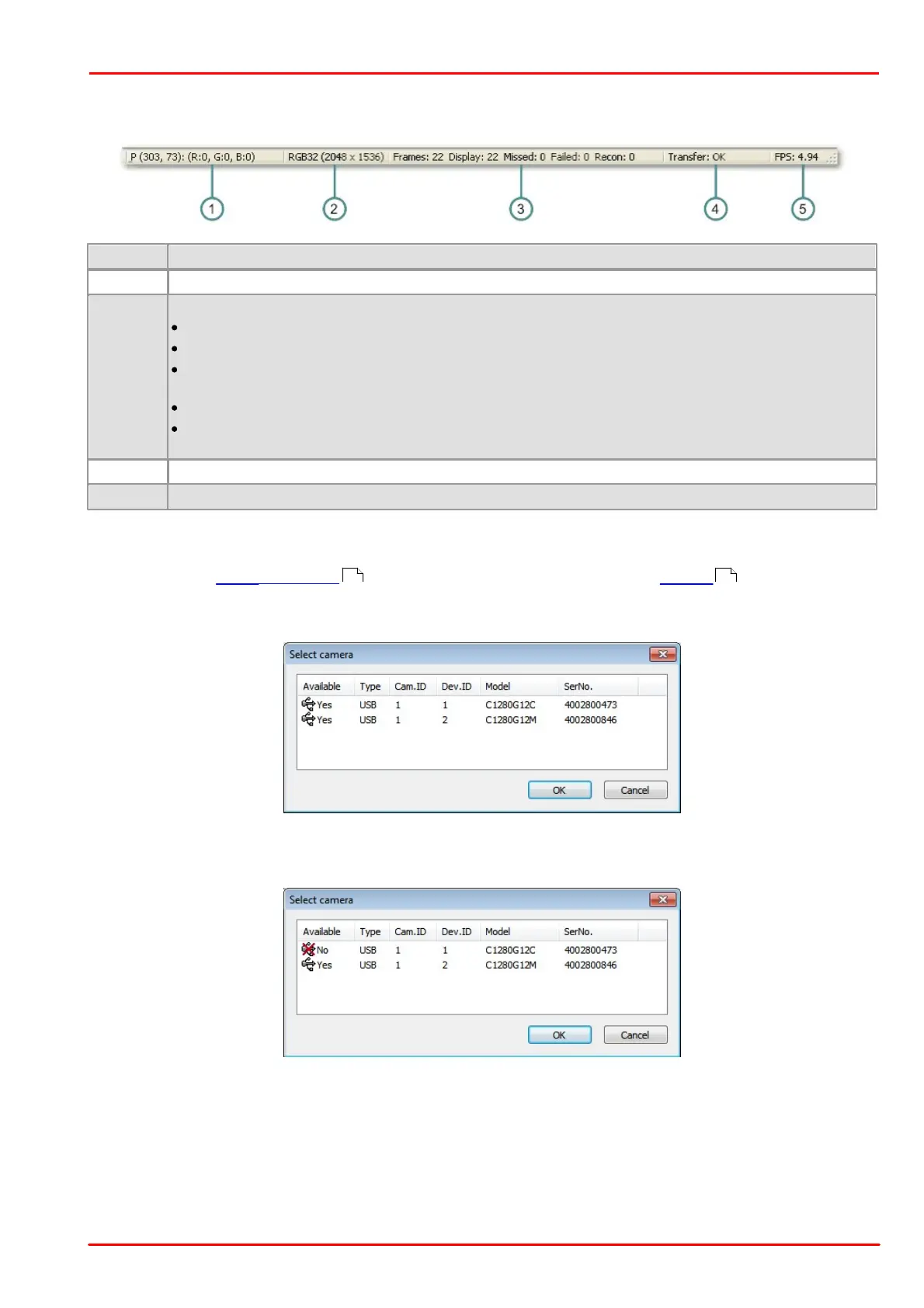

3.4.2.3 Status Bar
Current cursor position in the Zoom/Pixel Peek window and color values at the cursor position
Defined color mode and image resolution
Counters
Frames: Transferred images
Display: Displayed images
Missed: Hardware trigger events missed. This counter increments each time a hardware trigger is
received in trigger mode, but the camera is not ready for image capture
Failed: Transmission errors
Recon.: This counter increments each time the open camera is removed and reconnected during
operation.
Status of the current image data transfer (OK/Error)
Current frame rate (fps) of the camera
3.4.2.4 Opening a Camera
Select the menu uc480 > Initialize or click the corresponding icon on the Toolbar to select (open) a
connected camera. If only one camera is available, this camera is selected automatically. If more than one camera
is connected, the "Select Camera" dialog box is displayed.
You can use multiple cameras simultaneously by opening multiple instances of uc480 Viewer. DCx cameras that
have already been opened or that have not been correctly configured are marked "No" in the "Available" column.
