5 Specifications
469
Method
V: Monochrome binning, additive
Factor
2x, 3x, 4x
Frame rate with 2x binning, 1024 x
384 pixels
fps
53
Frame rate with 3x binning, 1024 x
256 pixels
fps
71
Frame rate with 4x binning, 1024 x
192 pixels
fps
85
Subsampling
Mode
-
Hardware trigger
Mode
Asynchronous
Trigger delay with rising edge
µs
39.5 ±2.6
Trigger delay with falling edge
µs
57.9 ±2.6
Additive trigger delay (optional)
µs
15 µs...4 s
Power consumption
*5
W
1.0 to 1.7
*
1
The maximum possible pixel clock frequency depends on the PC hardware used.
*
2
Requires maximum pixel clock frequency.
*
3
Requires minimum pixel clock frequency.
*
4
Use of this function increases the frame rate.
*
5
The power consumption depends on the sensor model and the pixel clock setting.
Please see also the DCU223x Application Notes chapter.

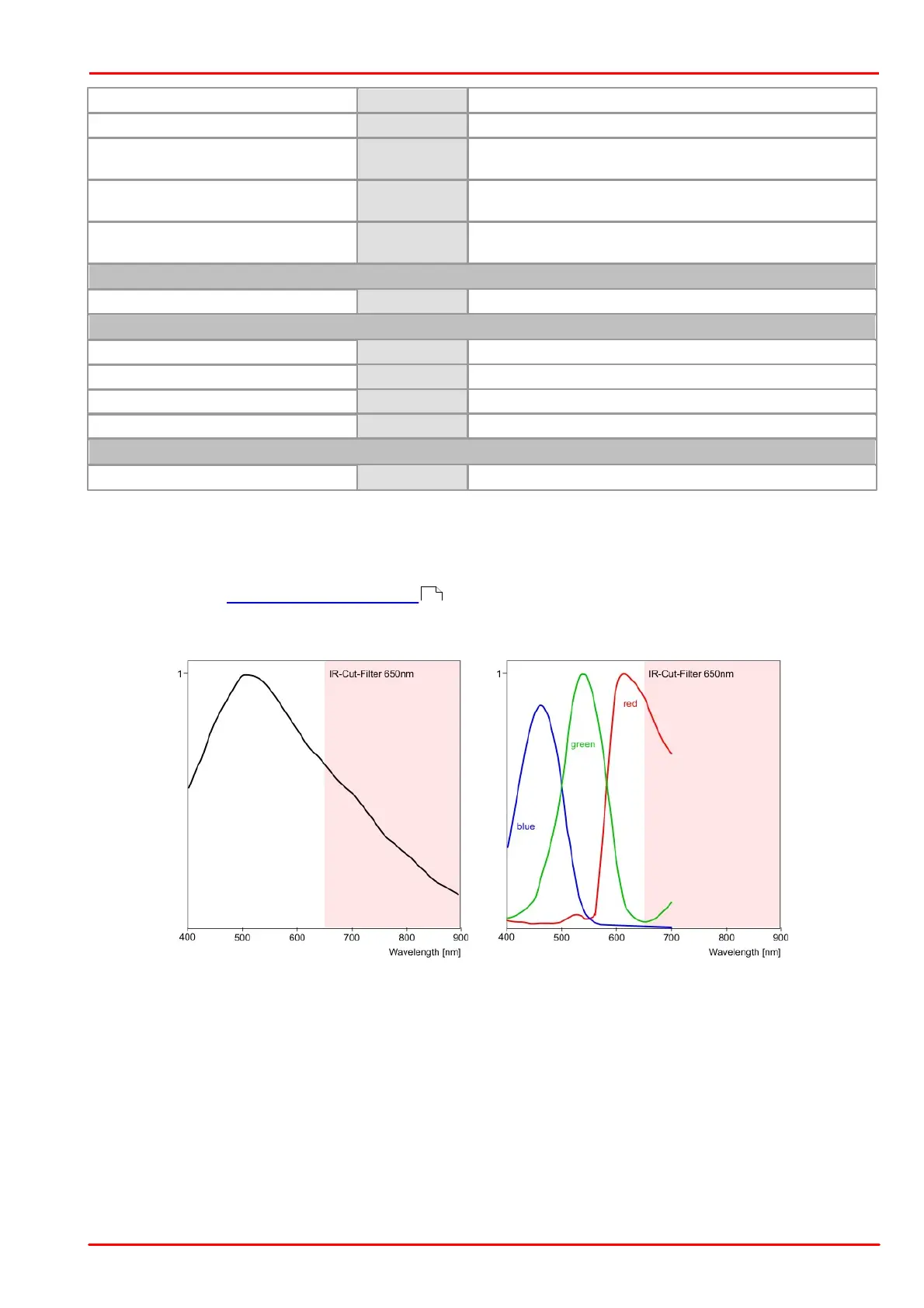

Relative sensor sensitivity
Sensor sensitivity of the DCU223M (monochrome)
Sensor sensitivity of the DCU223C (Color)
