CHAPTER 3: FOOTRESTS
CAT Flip-Back Angle Adjustable Footrest / CAT Flip-Back Angle Adjustable High
Mount Footrest
The Flip-Back Footrest can be ipped upward and backward to position the footplate out of the way for purposes of
transferring into and out of the wheelchair. See Figures 3-6 and 3-7.

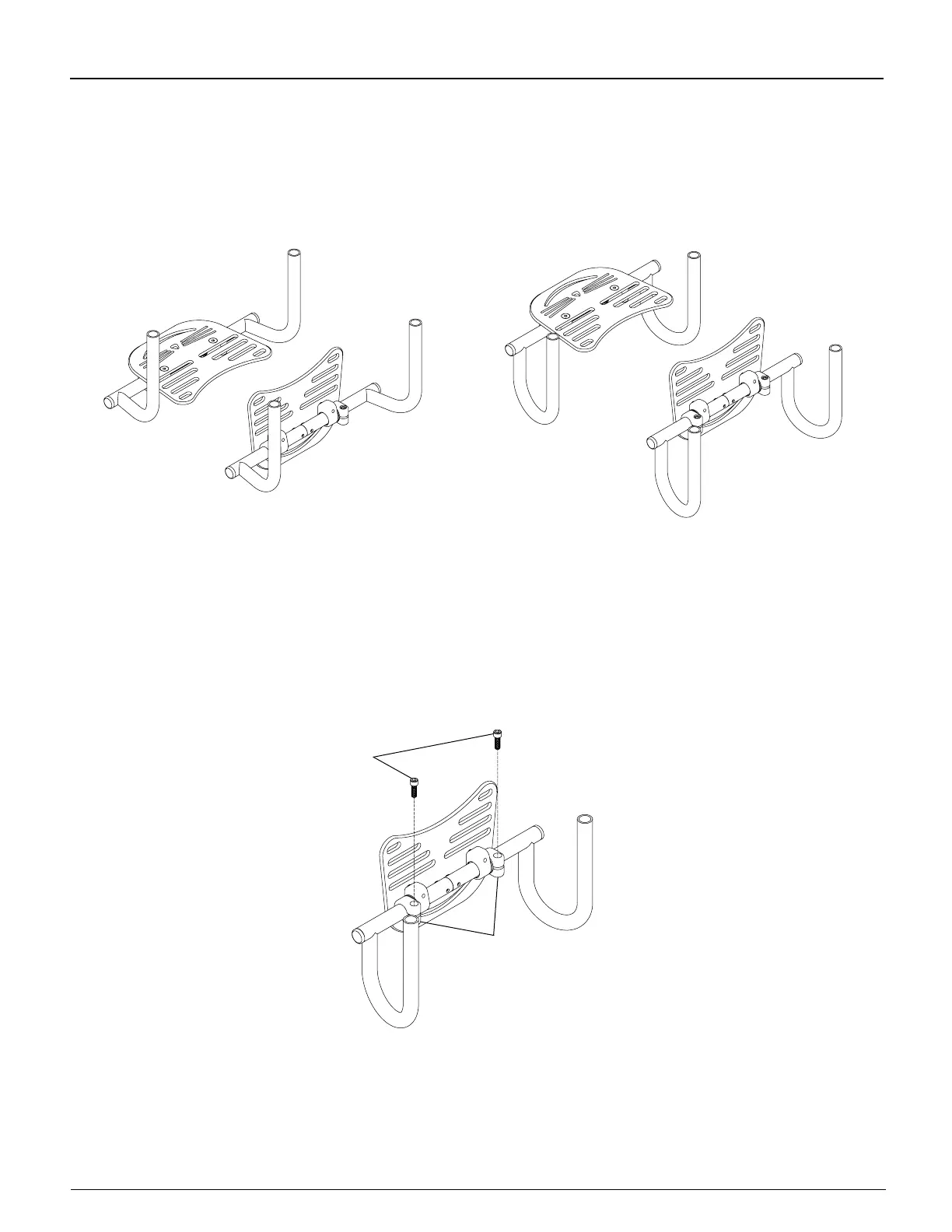

Figure 3-6
Flip-Back Footrest
Figure 3-7
Flip-Back High Mount Footrest
Adjusting the Angle
Tools Needed:
• 3/16” Allen Wrench
1. Flip back the footplate.
2. Loosen, but do not remove, the two Allen screws as shown in Figure 3-8.
3. Adjust the footrest to the desired angle.
4. Securely tighten the two Allen screws loosened in Step 2.
Figure 3-8
Adjusting the Angle
Allen
Screws
Angle Stop
Clamps
Adjusting the Height/Replacing
The footrest can be replaced, or the height adjusted, by using the tools and following the procedures under “Angle
Adjustable Footrest (Standard or CAT) – Adjusting the Height/Replacing” on pages 3-1 to 3-2. See Figure 3-9.
