CHAPTER 13: ANTI-TIPS
Black Aluminum Anti-Tips
Adjusting
1. The bottom of the anti-tip wheels should be between
1-1/2” and 2” above the oor to ensure proper functionality.
To adjust the height, press the two release buttons on
the telescoping lower tube, then adjust the height of the
lower tube. See Figure 13-1.
2. To rotate the anti-tips upward, press the release button
on the extension tube to release the extension tube and
rotate upward until the release button locks in place on
the opposite side of the anti-tip receiver.
3. To remove the anti-tip, press the release button on
the extension tube and pull the extension tube out of the
anti-tip receiver.
Mounting
I WARNING
Only an authorized TiLite dealer or qualied technician should install the rear anti-tip receiver. If you ignore this
Warning, you may fall, tip over or lose control of the wheelchair and seriously injure yourself or others or damage the
wheelchair.
Tools Needed:
• 5/32” Allen Wrench
• 3/16” Allen Wrench
• 7/16” Open End Wrench
1. Remove the rear wheels and place the frame on a level surface.
2. Remove the camber tube. See “Camber Mounts – Replacing the Camber Tube” on page 8-3.
3. Thread the Allen screw through the right side camber clamp, right side anti-tip receiver, and the washer and
securely tighten the nylock nut. See Figure 13-2.
Note: Make sure that the anti-tip receiver is oriented to be parallel to the oor.
4. Repeat Step 3 on the left side camber clamp and left side anti-tip receiver.
5. Reinstall the camber tube. See “Camber Mounts – Replacing the Camber Tube” on page 8-3.
6. Tighten the Allen screw in each anti-tip receiver so that it securely clamps into the camber tube.
7. Reinstall the rear wheel.

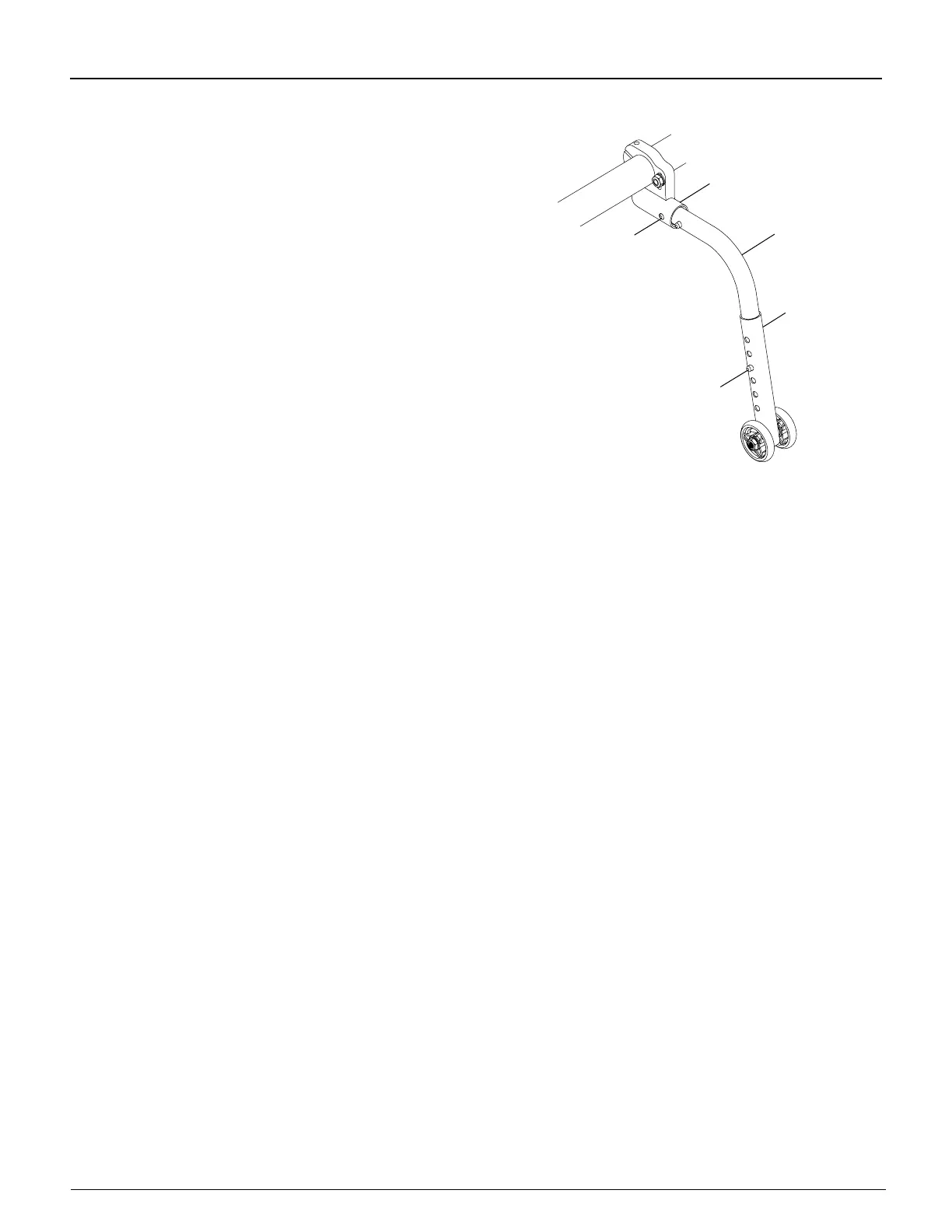

Figure 13-1
Adjusting the Rear Anti-Tip
Lower Tube
Button
Release
Receiver
Extension Tube
Button
Release
