TiLite Twist - Center Mount Anti-Tips

13-5
Twist Owner’s Manual
OM_TWIST_0811RevA
CHAPTER 13: ANTI-TIPS

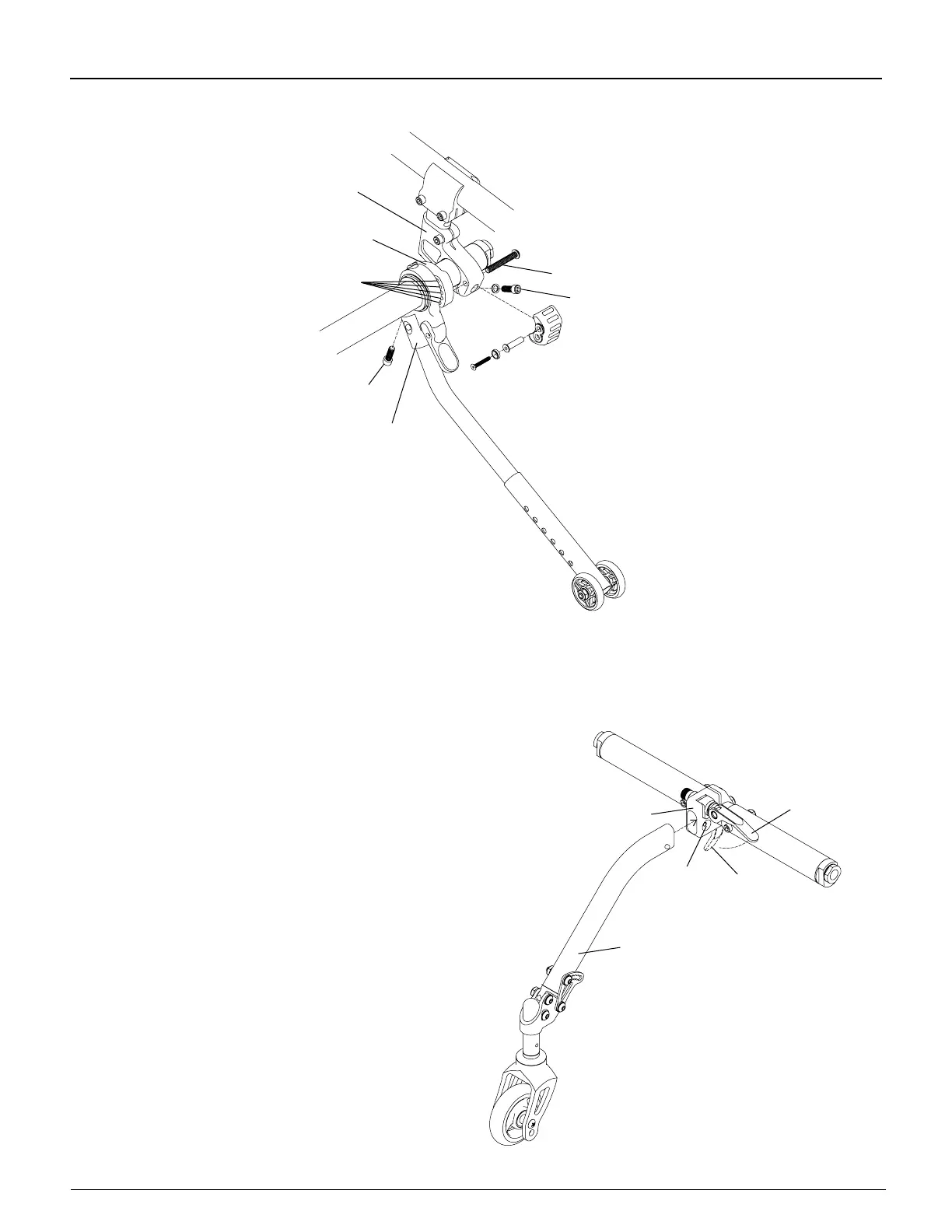

Figure 13-6
Mounting
Camber Tube
Clamp
Anti-Tip Mount
5 Threaded
Holes
Allen
Screw
Receiver
Allen Screw
Allen Screw
Center Mount Single Swivel Caster Anti-Tip
I WARNING
Only an authorized TiLite dealer or qualied technician
should install the anti-tip receiver. If you ignore this
Warning, you may fall, tip over or lose control of the
wheelchair and seriously injure yourself or others or
damage the wheelchair.
I WARNING
Before sitting in the chair, make sure that the anti-tips are
operating properly. To do this, place the unoccupied chair
on a level surface, engage the anti-tips, and tip the chair
backward until the anti-tips are supporting the weight of the
chair. Apply sufcient pressure to ensure that the anti-tips
are operating properly. If you ignore this Warning, you may
fall, tip over or lose control of the wheelchair and seriously
injure yourself or others or damage the wheelchair.
Engaging
To engage the anti-tip, raise the release lever to the unlock
position, grip the anti-tip rmly, engage the anti-tip in the
receiver until the release button clicks into place and lower
the release lever into the locked position as shown in
Figure 13-7.
Figure 13-7
Engaging
Release
Lever
(unlocked)
Anti-Tip
Receiver
Release
Button
Release
Lever
(locked)
